Technical Tip: How to implement daily internet data quota per user or per IP

The solution uses the built-in Category Usage Quota feature inside a proxy-based Web Filter profile.

FortiGate does not have a global 'total traffic quota' for all protocols, but the Category Usage Quota inside a Web Filter profile achieves the desired result for typical internet usage.

Step-by-Step Configuration:

1. Create a Category Group that covers 'All Web Traffic':
   Add all FortiGuard categories (or at least the high-usage ones: Bandwidth Consuming, General Interest, Streaming Media, Social Media, etc.).

config webfilter category

    edit "All-Web-Traffic"

        set members "Bandwidth_Consuming" "General_Interest" "Streaming" "Social_Media" ... (add all desired categories)

    next

end

2. Create a Web Filter Profile:

config webfilter profile
    edit "Daily-Quota-500MB"
        set feature-set proxy
            config web
                  set category-usage-quota enable
            end
            config ftgd-wf
                config filters
                    edit 1
                        set category "All-Web-Traffic"
                        set action monitor
                    next
                end
                config quota
                    edit 1
                        set category "All-Web-Traffic"
                        set type bandwidth
                        set value 500
                        set unit MB
                    next
                end
            end
    next
end

3. Apply the Web Filter Profile to the Internet Firewall Policy:

config firewall policy
    edit <policy-ID>
        set web-filter "Daily-Quota-500MB"
        set ssl-ssh-profile "deep-inspection" <----- Or any applicable deep-inspection profile.
        set utm-status enable
    next
end

Configure the Category usage Quota using the GUI:

Navigate to Security Profiles -> Select Web Filter > edit the Web Filter Profile.

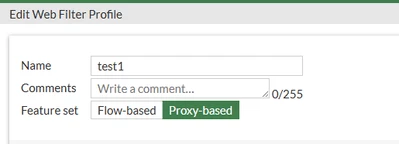

Enable proxy-based feature settings.

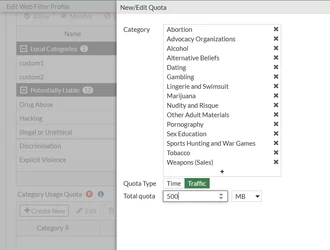

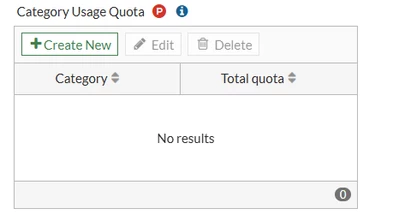

Select Create New in the Category Usage Quota.

Select the category that should be allowed in the Quota.

Set the type to Traffic with a bandwidth of 500MB.

Select OK to apply the settings.

Once the settings above have been configured, create a new policy and enable the web filter feature on the policy and call the profile 'Daily-Quota-500MB' and save the configuration.

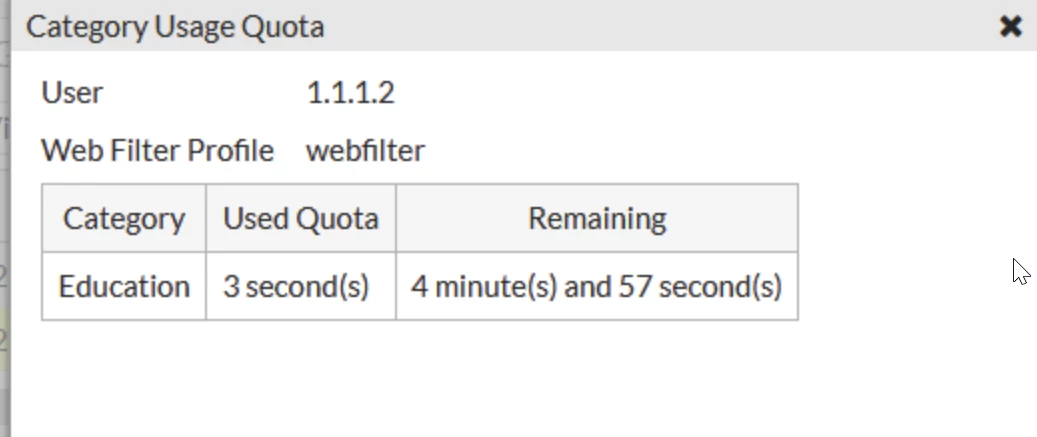

To verify the quota usage: go to Dashboard -> FortiGuard Quota Monitor to check the used and remaining time.

Important notes and limitations:

• Only web (HTTP/HTTPS) traffic is counted.
• This process requires proxy-based inspection + deep SSL inspection.
• For all-protocol daily quotas or strict per-IP enforcement without authentication, consider adding a FortiAuthenticator (official best practice).
