Technical Tip: How to identify the Public IP when FortiGate wan interface has private IP address

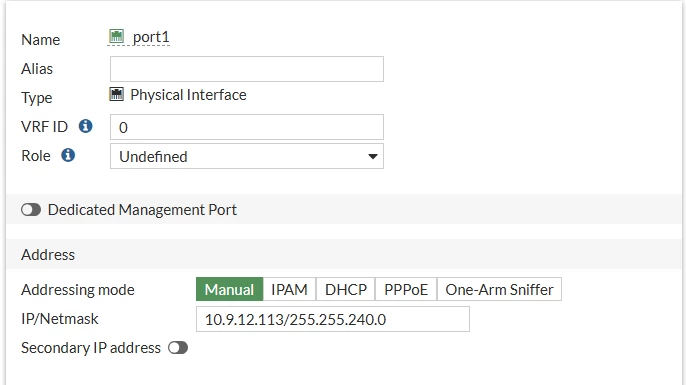

The FortiGate has a private IP address on the WAN interface. In this case, port 1 is configured as the WAN interface and has a private IP address.

To identify the public IP, use the command:

diagnose sys wan ipify port1

This is particularly helpful in setups where the FortiGate is behind another NAT device, such as an ISP modem.

It will get the public IP address through https://api.ipify.org.

diagnose sys wan ipify port1
Try to get my public IP through https://api.ipify.org with src_ip=0.0.0.0 device=port1 vfid=0(root) ...

Public/WAN IP: xx.xx.xx.xx
Location:
Latitude:
Longitude:
Accuracy radius: Unknown
Time zone: America/Toronto
City: ******
Subdivisions:
0: Ontario
Country: Canada
Postal:
Code: K2P
Continent: North America
Registered country: Unknown
ISP: Unknown

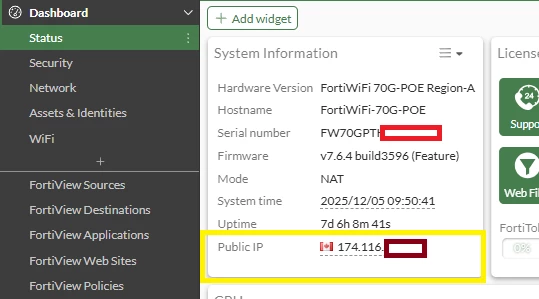

On the FortiOS GUI, navigate to Dashboard -> Status, and the public IP can be seen in the system information widget.

Note:

Due to security reasons, the Public/WAN IP is hidden, but in place of xx.xx.xx.xx it will show the public IP address.

Related article:

Technical Tip: WAN IP unknown
