Technical Tip: How to get the configuration backup using auto script in desire folder using FTP
Description
This article explains the steps to configure auto script to get the configuration backup in desire folder using FTP.
Solution
Command syntax.
# config system auto-script
edit backup
set interval 0
set repeat 1
set start auto
set script 'execute backup config ftp /<Folder-name>/<config-backup file name> <FTP server IP> <username> <password>'
set output-size 10
next
end
For example:
set script 'execute backup config ftp /sat/backup.conf 10.143.11.55 fortinet Test@123'

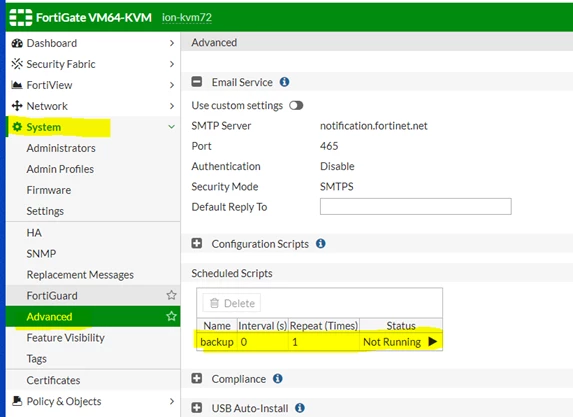

Once above configuration done, setup from GUI will appear:
The above screenshot shows that the correct configuration.

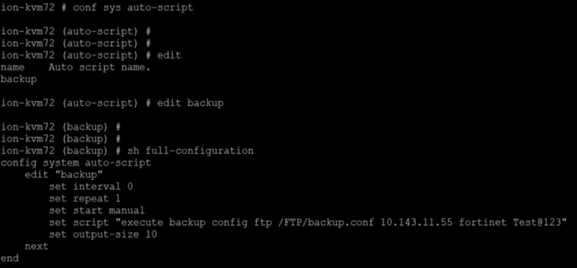

To test manually:
If the all folder is added in the configuration, then backup will be not move toe desire folder as below:
