Technical Tip: How to get log messages for packets dropped due to anti-spoofing

  • September 29, 2014
  • 0 replies
  • 32338 views

Description



This article describes thatb by default, the FortiGate will silently drop any packet with a possibly spoofed source address. That is the RFF or anti-spoofing mechanism.

Scope

FortiGate.

Solution

Due to this feature IP packets are not forwarded if their Source IP does not either
  • Belong to a locally attached subnet (local interface), or,
  • Be in the routing of the FortiGate from another source (static route, RIP, OSPF, BGP)



Debug flow shows those drops as 'reverse path check fail, drop':



id=13 trace_id=27 msg="VD1 received a packet(proto=1, 10.11.130.70:1->10.35.252.4:8) from Int1."
id=13 trace_id=27 msg="allocate a new session-086bf186"
id=13 trace_id=27 msg="reverse path check fail, drop"
id=13 trace_id=27 msg="trace"


Enabling logging of any ICMP dropped packets can help in troubleshooting and finding incorrect route settings.



The CLI commands are :

  • FortiOS:



config log setting
    set log-invalid-packet enable
end



  • FortiOS v7.4.x and above:



config log setting
    set extended-log enable
end

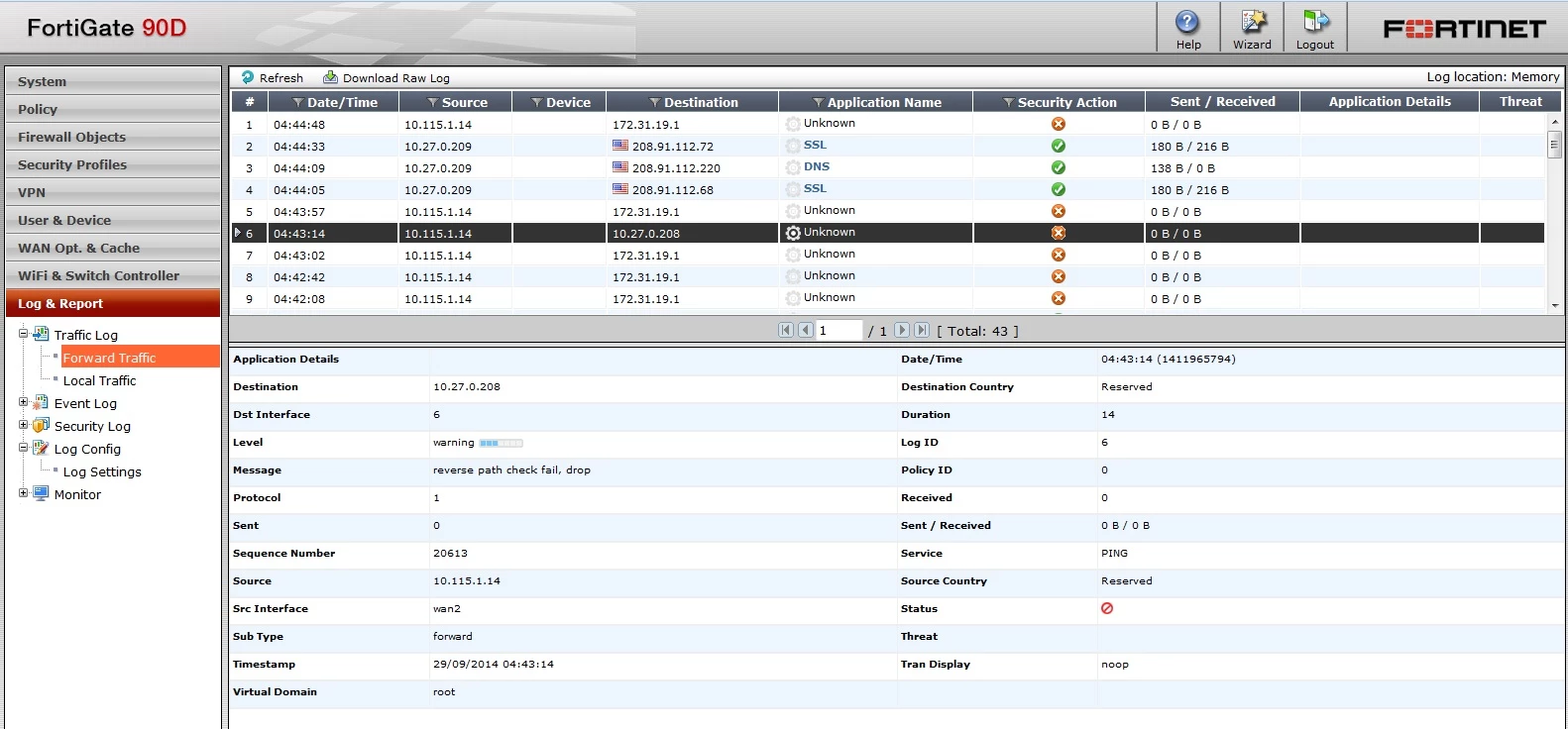

With this option enabled a log message will be logged for "ping" dropped due to anti-spoofing.

Note that this option is not limited to anti-spoofing.

When enabled traffic log entries are generated for :
  • All dropped ICMP packets.
  • All dropped invalid IP packets.


It is a global parameter, independent of traffic log settings.

This setting is not rate-limited and a large volume of invalid packets will generate numerous log messages and can affect device performances.






Related article:

Technical Note: Details about FortiOS RPF (Reverse Path Forwarding), also called Anti-Spoofing
