Technical Tip: How to get a backup config file on FortiGate by using a python script from a non-management VDOM

This article describes how to get a backup config file on FortiGate by using a Python script from non-mgmt VDOM.

FortiGate v7.0.x.

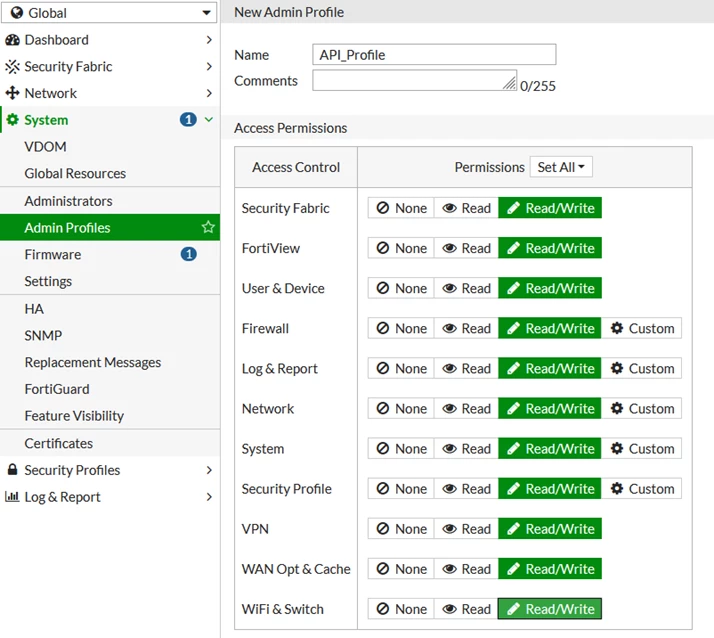

1. Create an Admin Profile for REST API Admin in FortiGate under System -> Admin Profiles -> Create New.
2. Select permissions for the REST API Admin profile. Admin read/write access is required.

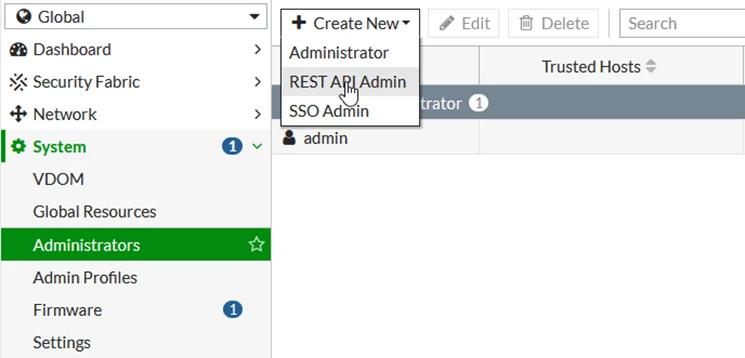

3. Create a REST API Admin in FortiGate under System -> Administrators -> Create New -> REST API Admin to provide access rights for API requests.

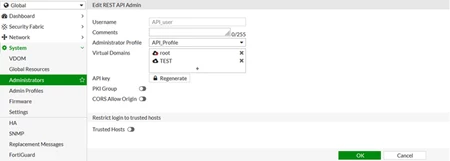

4. Enter a Username and select Administrator Profile and Virtual Domains.

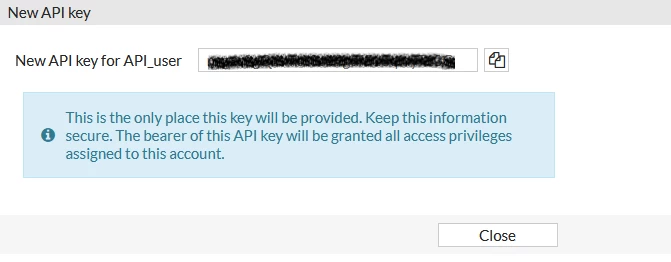

5.   Save the API key that is generated immediately after selecting the 'Save' button as in the screenshot below:

so far there is a way to configure a generic API user with read/write rights but in order to be able to make a backup via API of the FortiGate unit the API admin must be set with super_admin rights, and CLI has to be used:

config system api-user
    edit "API_user"
        set api-key ENC blahblah
        set accprofile "super_admin"
        set vdom "root"
    next
end

6.  Create a new Python file.
7. Add the following Python script to that file and save it.

NOTE:

Do not forget to modify the IP address, token, and file directory.

import os

import sys

import requests

import json

def Api():

main_url = "https://10.109.17.34/"   # Edit IP address

    client = requests.session()

    client.verify = False

    token = "aaaabbbcccc…."

url_new = (main_url + "api/v2/monitor/system/config/backup?scope=vdom&vdom=TEST&access_token="+token)    resp = client.get(url_new)

file= open(r'C:\Users\Desktop\config-file.txt' ,'w') # please edit file directory

    for line in resp.text:

            file.write(line)

Api()

Main_url is the IP address of the Fortigate

                Scope = Vdom

                Vdom = Vdom name ( Vdom which PC connected and sent the request)

                Token = Token that is generated in step 5

Execute the Python script. It will create a file named 'config-file.txt ' in the specified directory with the configuration of the FortiGate inside.
