Technical Tip: How to force the syslog using specific IP address and interface to send to internet

  • November 4, 2022
  • 0 replies
  • 4385 views
Description This article describes how to force the syslog using specific IP address and interface to send out to Internet.
Scope If the FortiGate has a default route on WAN1, but to send the syslogd by LAN IP address to Internet.
Solution
  1. Create syslogd settings as below:

config log syslogd setting
    set status enable
    set server "x.x.x.x" <----- IP Address in internet.
    set source-ip "14.14.14.9" <----- IP Address of LAN.
    set interface-select-method specify
    set interface "lan"
end



From the web interface (GUI), it is also possible to configure these settings:

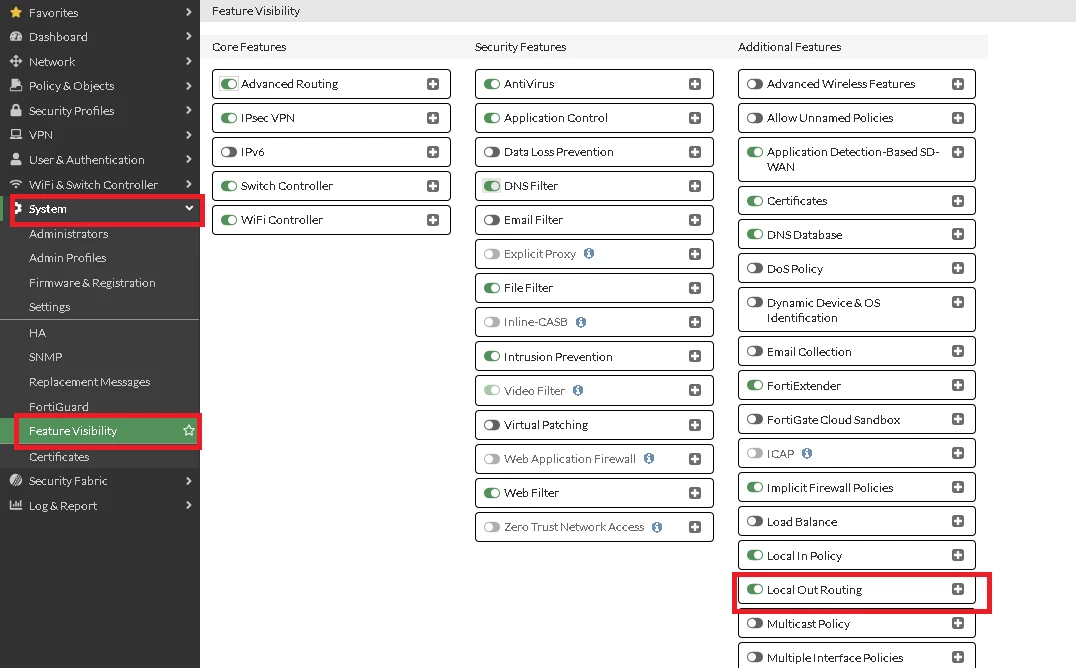

By default Local Out Routing is not visible in the GUI. Go to System -> Feature Visibility to enable it

Enable Local.PNG



Screenshot 2024-12-04 143926.jpg

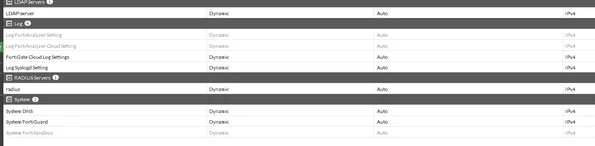

From here, configure the Source IP, outgoing interface for 'Log Syslogd Setting':








  1. Add a default static route with higher priority:



# get router info routing-table all
Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP
O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
* - candidate default

Routing table for VRF=0
S* 0.0.0.0/0 [10/0] via y.y.y.y, wan1, [1/0]
[10/0] via 14.14.14.14, lan, [1/0]



  1. It is possible now to see that the syslog traffic is sent out by the LAN IP and interface.



# diagnose sniffer packet any 'host x.x.x.x' 4 0 l
interfaces=[any]
filters=[host x.x.x.x]
2022-11-04 09:52:22.365267 lan out 14.14.14.9.4291 -> x.x.x.x.514: udp 560
2022-11-04 09:52:22.544854 lan out 14.14.14.9.4291 -> x.x.x.x514: udp 560
2022-11-04 09:52:25.424974 lan out 14.14.14.9.4291 -> x.x.x.x.514: udp 560
