Technical Tip: How to fetch traffic volume per policy using SNMP

  • August 13, 2025
  • 0 replies
  • 408 views
Description This article describes how to retrieve traffic volume for specific policies for auditing or troubleshooting on FortiGate when FortiAnalyzer or FortiManager is not available. It provides a step-by-step guide on SNMP to obtain the required information.
Scope FortiGate.
Solution
  1. Set up SNMP under System -> FortiGate -> SNMP and enable SNMP, and configure as per Guide.
  2. Use the following SNMP OID to retrieve the traffic volume: 1.3.6.1.4.1.12356.101.5.1.2.1.1.3
  3. Use an SNMP walk tool to retrieve the traffic volume.

For example:


"SnmpWalk.exe -r:192.14.47.8 -v:3 -sn:snmptest -os:1.3.6.1.4.1.12356.101.5 -op:1.3.6.1.4.1.12356.101.6"





Result:



OID=.1.3.6.1.4.1.12356.101.5.1.2.1.1.3.1.0, Type=Counter32, Value=2793896
OID=.1.3.6.1.4.1.12356.101.5.1.2.1.1.3.1.1, Type=Counter32, Value=0
OID=.1.3.6.1.4.1.12356.101.5.1.2.1.1.3.1.2, Type=Counter32, Value=0
OID=.1.3.6.1.4.1.12356.101.5.1.2.1.1.3.1.3, Type=Counter32, Value=0
OID=.1.3.6.1.4.1.12356.101.5.1.2.1.1.3.1.4, Type=Counter32, Value=0
OID=.1.3.6.1.4.1.12356.101.5.1.2.1.1.3.1.5, Type=Counter32, Value=0
OID=.1.3.6.1.4.1.12356.101.5.1.2.1.1.3.1.6, Type=Counter32, Value=0
OID=.1.3.6.1.4.1.12356.101.5.1.2.1.1.3.1.7, Type=Counter32, Value=0
OID=.1.3.6.1.4.1.12356.101.5.1.2.1.1.3.1.8, Type=Counter32, Value=0
OID=.1.3.6.1.4.1.12356.101.5.1.2.1.1.3.1.9, Type=Counter32, Value=0
OID=.1.3.6.1.4.1.12356.101.5.1.2.1.1.3.1.10, Type=Counter32, Value=0
OID=.1.3.6.1.4.1.12356.101.5.1.2.1.1.3.1.11, Type=Counter32, Value=3682945731

Note:

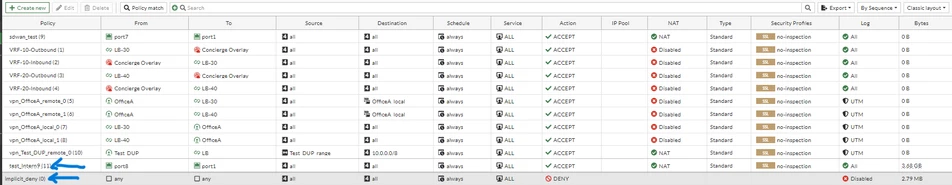

The last digit in the OID represents the policy ID.
