Technical Tip: How to enable IKE debugging with various debug levels using a bitmask to isolate specific types of information for troubleshooting IKE negotiation failures

Debug Levels and Information:

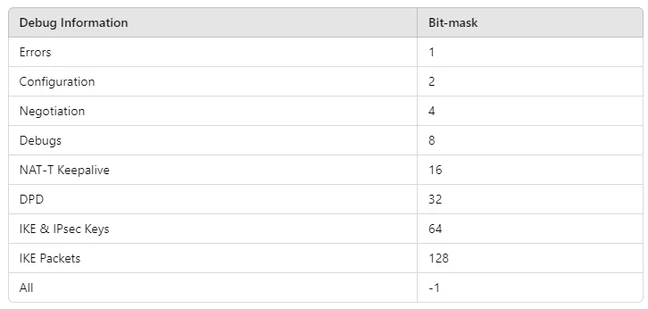

FortiGate offers various debug levels using a bitmask to isolate specific types of information. The following are the available debug information levels:

diagnose debug application ike «debug-level»

IKE debug with appropriate filters:

diagnose debug disable

diagnose debug reset
diagnose debug console timestamp enable
diagnose vpn ike log filter clear
diagnose vpn ike log filter dst-addr4 <ip.of.remote.peer>       <- Remote peer IP filter.
diagnose debug application ike -1                               <- Enable all levels of IKEd debug.
diagnose debug application fnbamd -1                            <- Only for cert. auth and Xauth/EAP.
diagnose debug console no-user-log-msg enable                   <- Disable writing on the console.
diagnose debug duration <munites>
diagnose debug enable

To stop debugging:

diagnose debug disable

diagnose debug reset

Starting from v7.4.1, the command to filter logs related to a specific Remote Peer IP has been changed to:

diagnose vpn ike log filter rem-addr4 <ip.of.remote.peer>

These steps will enable IKE debugging on the FortiGate to capture detailed information related to IKE negotiation failures, certificate authentication, NAT-T issues, and other related factors. The debug output can then be analyzed to identify and resolve VPN negotiation problems.

Note: Starting from FortiOS v7.6.3, it is possible to run IKE debugging directly from the GUI by navigating to VPN -> VPN Tunnels. 'Right-click' on the tunnel and select 'CLI diagnostics'. For more information, refer to Technical Tip: Collect IKE Debug Logs for IPsec VPN Directly from the GUI.
