Technical Tip: How to control/change the FortiGate source IP for self-originating traffic: SNMP, Syslog, FortiAnalyzer, Alert Email, FortiManager

By default, the source IP is the one from the FortiGate egress interface. This feature allows, for example, specifying a loopback address as the source IP:

• SNMP.
• Syslog.
• FortiAnalyzer.
• Alert Email.
• FortiManager.

This feature is available only in the CLI.

The following CLI commands show some examples :

config system snmp community
    edit 1
        config hosts
            edit 1
                set ip 10.160.0.171
                set source-ip 10.160.10.1    <----- Source IP to use.
            next
        end
        set name "community_name"
    next
end

For SNMP v3:

config system snmp user
    edit <user>
        set source-ip  10.160.10.1
    next
end

config system central-management
    set fmg-source-ip 172.16.122.154
end

config log syslogd setting
    set status enable
    set server "10.160.0.171"
    set source-ip 10.160.10.1
end

config system alertemail
    set source-ip 10.160.10.1
end

A sniffer trace allows to verify the source IP of the packets sent:

FGT# diagnose sniffer packet  any " port 162" 4

4.030647 internal out 10.160.10.1.162 -> 10.160.0.171.162: udp 112
4.031243 internal out 10.160.10.1.162 -> 10.160.0.171.162: udp 137

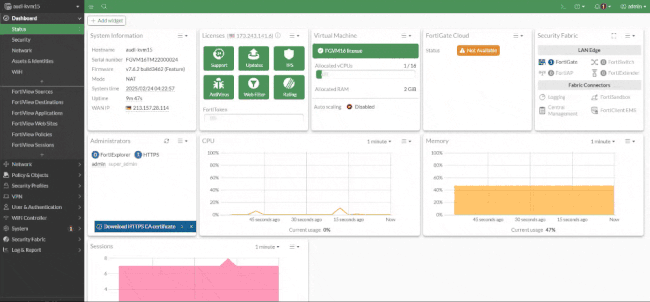

From v7.0.0 and later, local out routing can be modified in the GUI as well:

CLI:

config system global
    set gui-local-out enable <--- Displays the feature in the GUI.
end

Note:
The 'source-ip' setting will be removed on certain management services when enabling 'ha-direct' under HA settings.
The following warning message will appear in the CLI upon completing 'ha-direct' configuration.

ha-direct is enabled, so source-ip settings are not used in certain management services (e.g., remote logging, netflow and sflow).
We recommend to unset all these source-ip.
Do you want to unset them now? (y/n)y
