Technical Tip: How to control BGP route advertisement with prefix-list

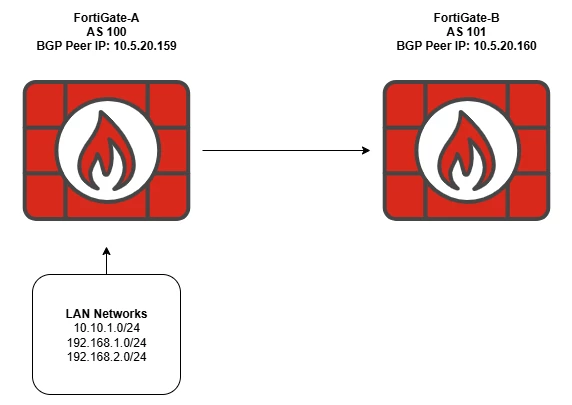

In this scenario, the administrator wants to configure FortiGate-A to block prefix 10.10.1.0/24 from being advertised to FortiGate-B while still allowing all other prefixes to be shared. Since there are no additional requirements (such as community tagging or adjusting BGP attributes like AS_PATH), the administrator has opted to use a simple outbound prefix-list to perform this filtering. Assume that the BGP peering is already working and in an Established state.

To accomplish this task, the administrator can perform the following steps on FortiGate-A:

Note the following key points for the prefix-list configuration:

• Prefix-list rules can have the action set to permit or deny, but it may be easier to think of the actions more as 'select' (permit) or 'ignore' (deny). For example, the above configuration could be described as follows: 'this prefix list ignores route prefixes matching 10.10.1.0/24 and selects/matches all remaining prefixes').
  This is more relevant when combining prefix-lists with route-maps, where prefix-lists are used to select a subset of prefixes that should then undergo a route-map rule.

• Prefix-lists, route-maps, and access-lists assess rules in order of increasing numeric ID, NOT from top-to-bottom order (i.e., Rule 10 is always assessed before Rule 20, even if Rule 10 was located below Rule 20 in the configuration).
  It is a good idea to put spacing in-between the rule IDs in case new rules need to be added in-between existing rules (for example, with existing Rules 10 and 20, it is simple to add Rule 15 anywhere in the prefix-list config since it is always assessed after rule 10 and before rule 20).
• Prefix-lists, route-maps, and access-lists all have implicit-deny rules, and this is why Rule 20 was added to permit the 'any' prefix. If this rule did not exist, then no prefixes would be matched/permitted by this prefix-list (Rule 10 would drop 10.10.1.0/24, and the implicit_deny would drop the remaining prefixes).
  Note that permit is the default action for a configured prefix-list rule, and so it will not appear when using the show command (but will appear with show full-configuration).

FortiGate-A # get router info bgp neighbors 10.5.20.160 advertised-routes
VRF 0 BGP table version is 2, local router ID is 172.31.135.228
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal
Origin codes: i - IGP, e - EGP, ? - incomplete

   Network          Next Hop            Metric LocPrf Weight RouteTag Path
*> 192.168.1.0      10.5.23.228                   100  32768        0 i <-/->
*> 192.168.2.0      10.5.23.228                   100  32768        0 i <-/->
Total number of prefixes 2
