Technical Tip: How to connect Windows 10 client to L2TP VPN network
How to connect Windows 10 client to L2TP VPN network
Solution
FortiGate configuration:
- “Users & Device” - “User Definition” -->“Create New”
- Select “User Type”
- Enter “Username” and “Password”
- Enter “Email Address”
- Select “User Account Status” and “User Group”
- Navigate to GUI: “VPN” - “IPsec Wizard”. Fill in “Name” field, select “Template Type”, “Remote Device Type” --> “Next”
Select physical “Incoming Interface”, select “Authentication Method”, “Pre-shared Key”, “User Group” --> “Next”
Select “Local Interface”, “Local Address”, fill in “Client Address Range” and “Subnet Mask” fields --> “Create”
Windows configuration:
- Navigate to Windows settings

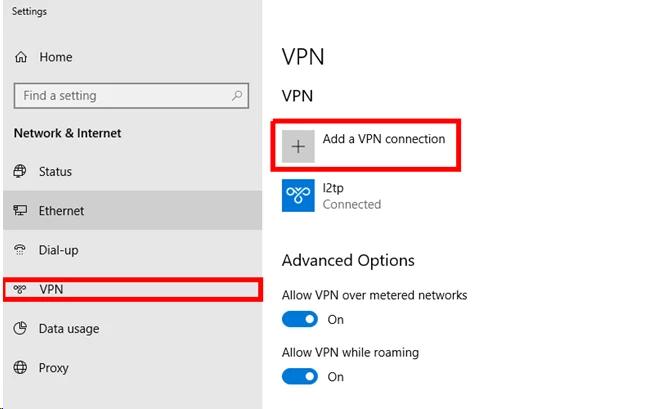

- Select “VPN” and then hit “Add a VPN connection” button

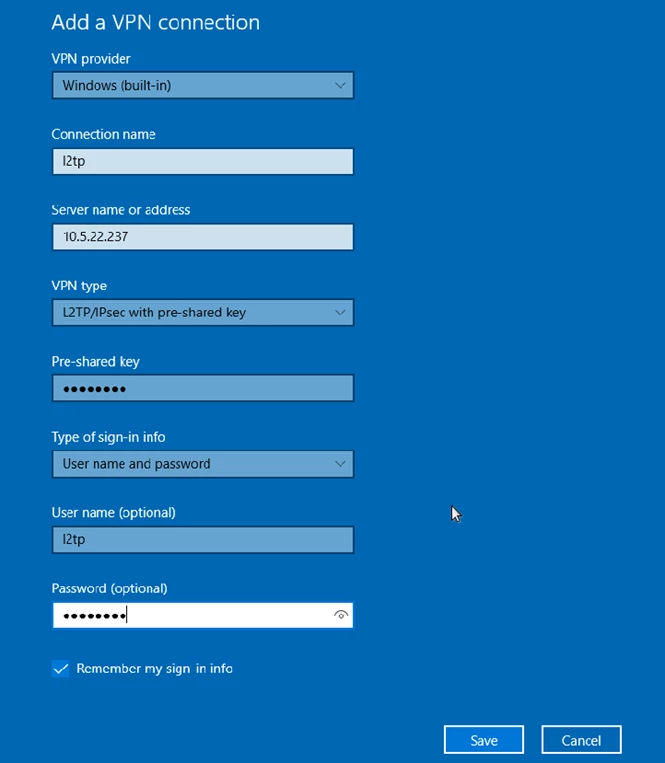

- Fill in all necessary fields and hit “Save” button
- After that connect to L2TP VPN network
- Connection is established
