Technical Tip: How to configure SSO Auto with LDAP users for SSL-VPN Bookmarks

This article describes how to configure SSO Auto with LDAP users for SSL-VPN bookmarks.

Scope

FortiGate

Solution
Note: At this moment, the FortiGate’s SSL-VPN SSO supports only FORM-BASED authentication and BASIC authorization method. Other authentication methods like Integrated Windows and Digest are currently not supported by SSO. Since the FortiAuthenticator login page has form based authentication method, the following http/https bookmark as an example will be configured with a FortiAuthenticator.

Outputs of view page source from FortiAuthenticator’s login page:

<div class="inner_wrapper">
    <form id="login_form" action="" method="post" autocomplete="off"><input type='hidden' name='csrfmiddlewaretoken' value='mSsFkkcooLE3hf6tSDHfNEsrsI9KVHHX' />
        <div>
            <table>
                <tbody>
                <tr>
                    <td><input id="id_username" placeholder="Username" maxlength="253" name="username" type="text" value=""></td>
                </tr>
                <tr>
                    <td><input id="id_password" placeholder="Password" name="password" type="password"></td>
                </tr>
                </tbody>
            </table>
            <input type="hidden" name="next" value="/">
            <input class="submit" type="submit" value="Login">
        </div>
    </form>
</div>

1) Configure LDAP server:

# config user ldap
    edit "LDAPSERVER"
        set server "172.16.190.216"
        set cnid "sAMAccountName"
        set dn "dc=iba,dc=local"
        set type regular
        set username "cn=Administrator, cn=Users, dc=iba, dc=local"
        set password SUPERSECRETPASSWORD
    next
end

1.2) Check the connectivity status between FortiGate and LDAP server. On GUI, click on the “Test Connectivity” button or run the checking by running the following CLI command:

# diagnose test authserver ldap <server_name> <username> <password>

2) Configure LDAP user group:

# config user group
    edit "ldapgroup1"
        set member " LDAPSERVER "
        config match
            edit 1
                set server-name "LDAPSERVER"
                set group-name "CN=ldapgroup1,CN=Users,DC=iba,DC=local"
            next
        end
    next
end

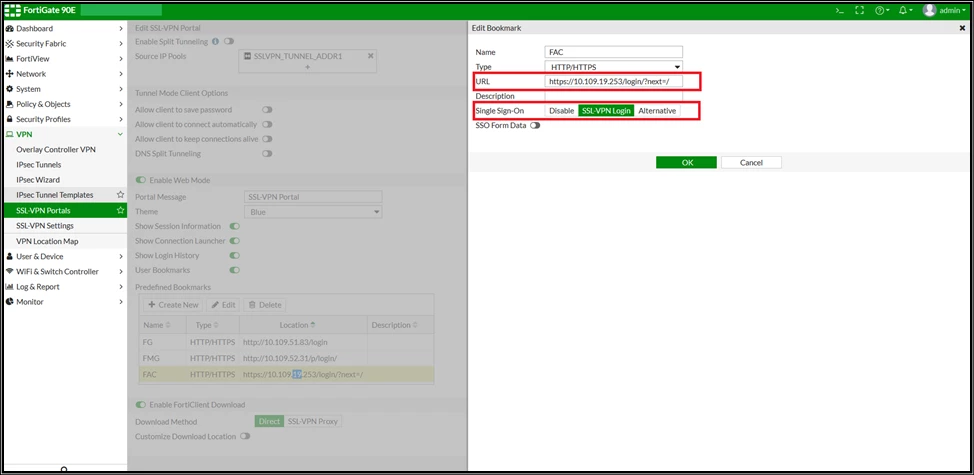

3) Configure SSL-VPN Portal and bookmark with SSO with type “auto” (it will automatically use SSL-VPN Login to connect to the web resource):

Note: the specified URL for bookmark is https://x.x.x.x/login/?next=/, since it is the login page URL of the FortiAuthenticator. Normally, using the login URL in the bookmarks is needed, otherwise it may not work.

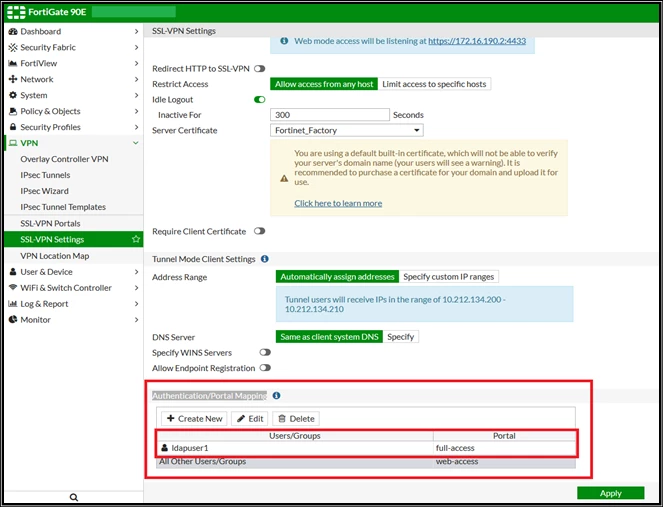

4) Configure Authentication/Portal Mapping in SSL-VPN settings:
