Technical Tip: How to configure specific SSL VPN address pool to SSL VPN Users/Usergroup
Description
This article describes how to create different SSL VPN IP POOL address and assign to Specific Users/User Group.
Solution

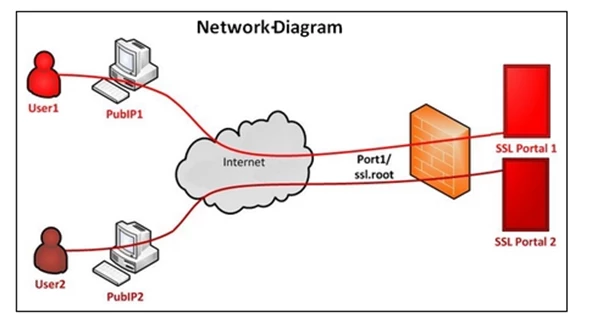

Network Diagram.
User1 needs to assign SSL VPN IP POOL OF 10.1.0.0/16.
User2 needs to assign SSL VPN IP POOL OF 10.2.0.0/16.
This article describes how to create different SSL VPN IP POOL address and assign to Specific Users/User Group.
Solution
Network Diagram.
User1 needs to assign SSL VPN IP POOL OF 10.1.0.0/16.
User2 needs to assign SSL VPN IP POOL OF 10.2.0.0/16.
1) Users and user groups configuration.

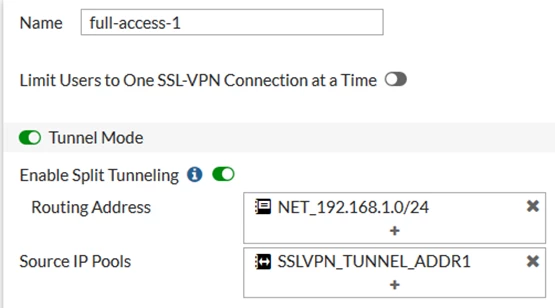

2) Create address group.3) Create 2 SSL VPN profiles.Inside SSL VPN Profile -1.
Source IP POOL of SSVPN_TUNNEL_ADDR1 Group.

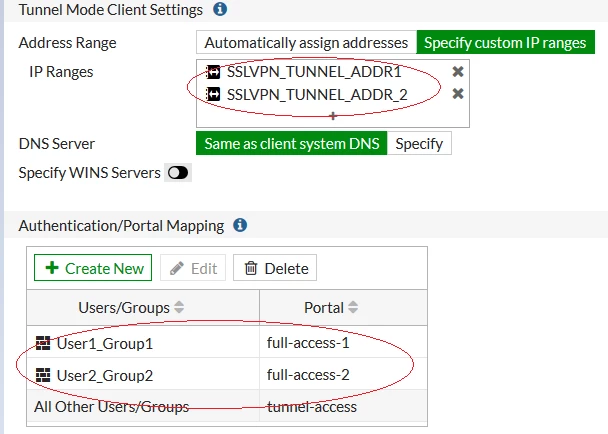

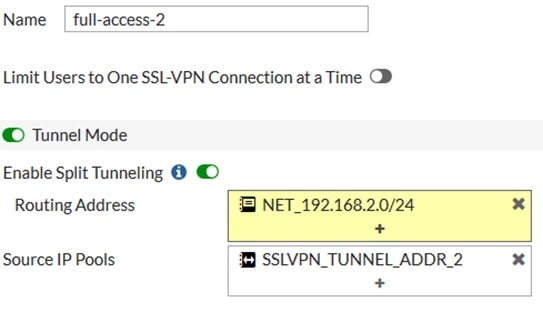

Add routing address if specific routing table is injected to FortiClient.Inside SSL VPN profile - 2.4) Go to VPN -> SSL -> Settings.

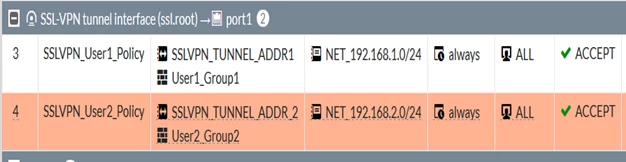

- Select the listen external interface (port1 in this case), listen port (10443).5) Create policy.
Configure policy to active SSLVPN and allow access.
NOTE:
Specific usergroup has to be set on both kind of policy.
- Go to Policy & Objects-> Policy -> IPv4.Result.

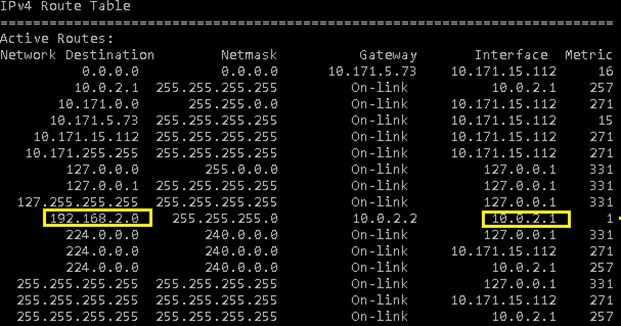

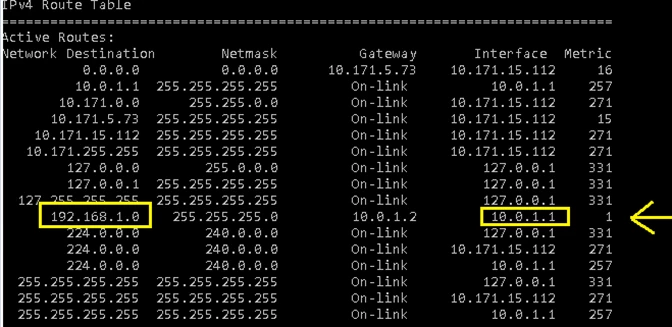

1) User1.Route print at client Windows machine.2) User2.
Route print.
