Technical Tip: How to configure Security Fabric Devices / Physical Topology/ Logical Topology from GUI
Description
This article describes how to configure Security Fabric / Physical Topology/ Logical Topology from GUI.
With this version, other Fortinet products to the Security Fabric is possible. The following products are supported:
- FortiMail
- FortiWeb
- FortiADC
- FortiDDOS
- FortiWLC
Solution
Sample configuration.
To configure Security Fabric Devices from GUI:

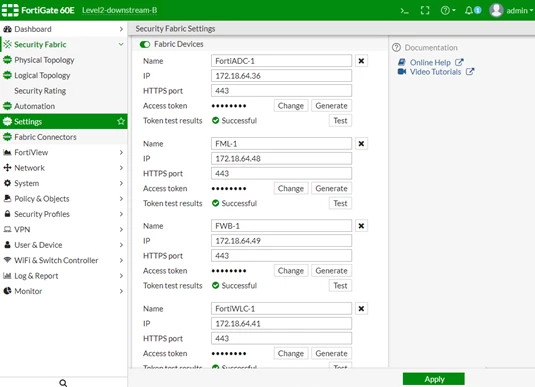

1) Go to Security Fabric -> Settings, configure 'Fabric Devices' to appear in the Topology field.
This article describes how to configure Security Fabric / Physical Topology/ Logical Topology from GUI.
With this version, other Fortinet products to the Security Fabric is possible. The following products are supported:
- FortiMail
- FortiWeb
- FortiADC
- FortiDDOS
- FortiWLC
Solution
Sample configuration.
To configure Security Fabric Devices from GUI:
1) Go to Security Fabric -> Settings, configure 'Fabric Devices' to appear in the Topology field.

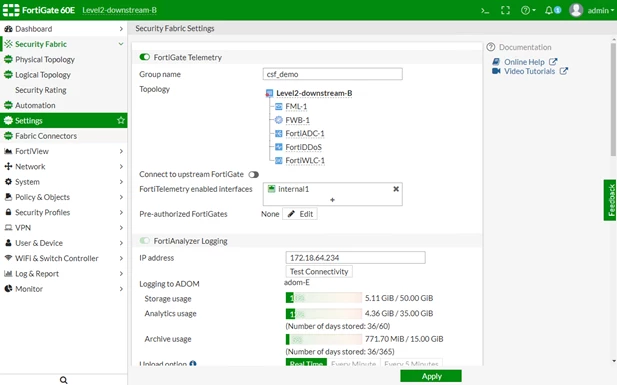

2) In the FortiGate telemetry section, the 'Topology' field shows the units.
To configure Security Fabric units from CLI.
1) Go to Security Fabric -> Physical Topology and configure the physical topology.
# config system csfTo configure the Security Fabric Physical Topology from GUI:
...
# config fabric-device
edit "FortiADC-1"
set device-ip 172.18.64.36
set access-token xxxxxx
next
edit "FML-1"
set device-ip 172.18.64.48
set access-token xxxxxx
next
edit "FWB-1"
set device-ip 172.18.64.49
set access-token xxxxxx
next
end
end

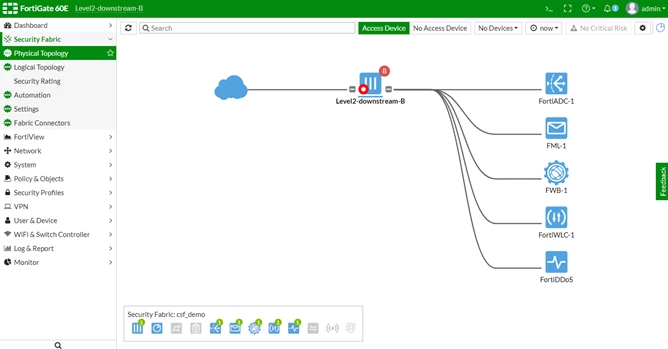

1) Go to Security Fabric -> Physical Topology and configure the physical topology.

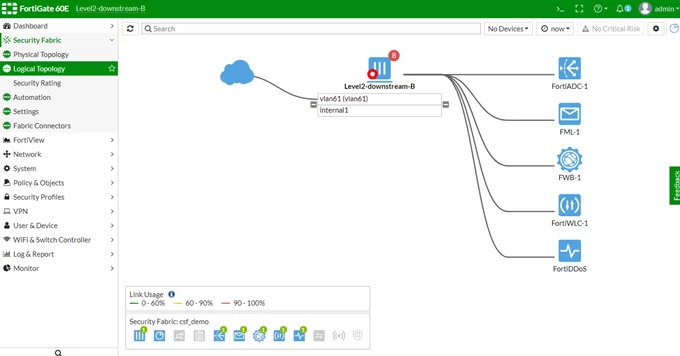

To configure the Security Fabric Logical Topology from GUI:
1) Go to Security Fabric -> Logical Topology and configure the logical topology.
1) Go to Security Fabric -> Logical Topology and configure the logical topology.

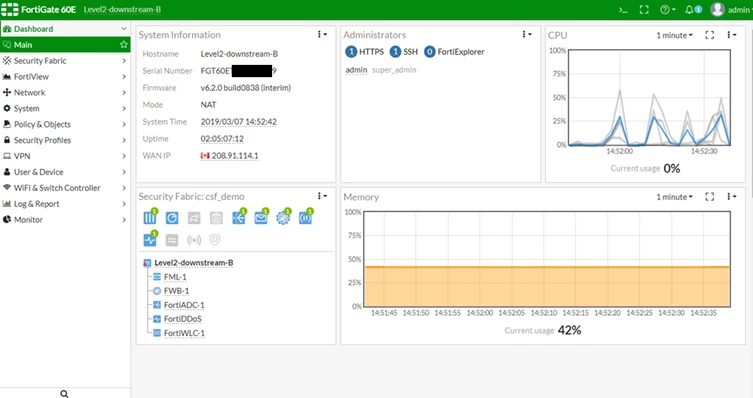

To view Security Fabric devices in the Dashboard:
1) Go to Dashboard -> Main. The Security Fabric widget includes the Security Fabric Devices.
1) Go to Dashboard -> Main. The Security Fabric widget includes the Security Fabric Devices.

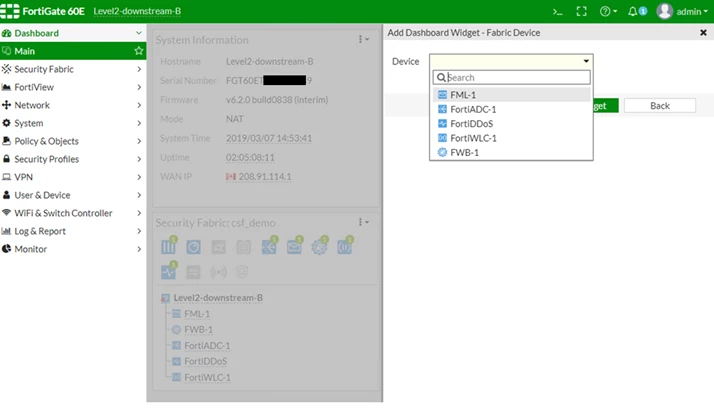

To add Security Fabric devices in the Dashboard:

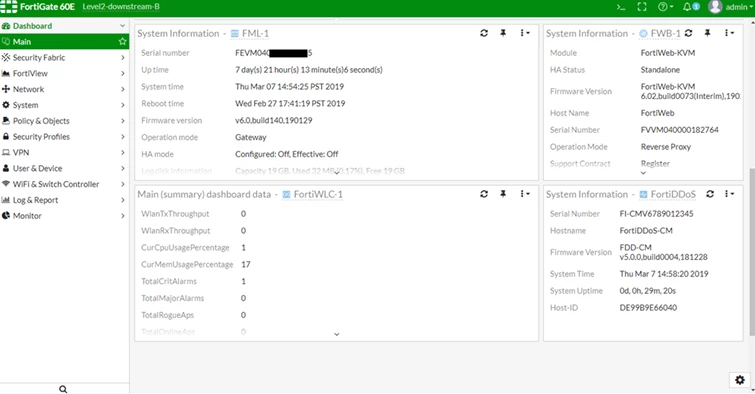

1) When a widget is added, Security Fabric Devices is available.
1) When a widget is added, Security Fabric Devices is available.
