Technical Tip: How to configure SD-WAN ADVPN 2.0 with iBGP on loopbacks (Hub-and-Spoke, 3 sites)

Forum|Forum|1 month ago
May 6, 2026
0 replies
309 views

Description

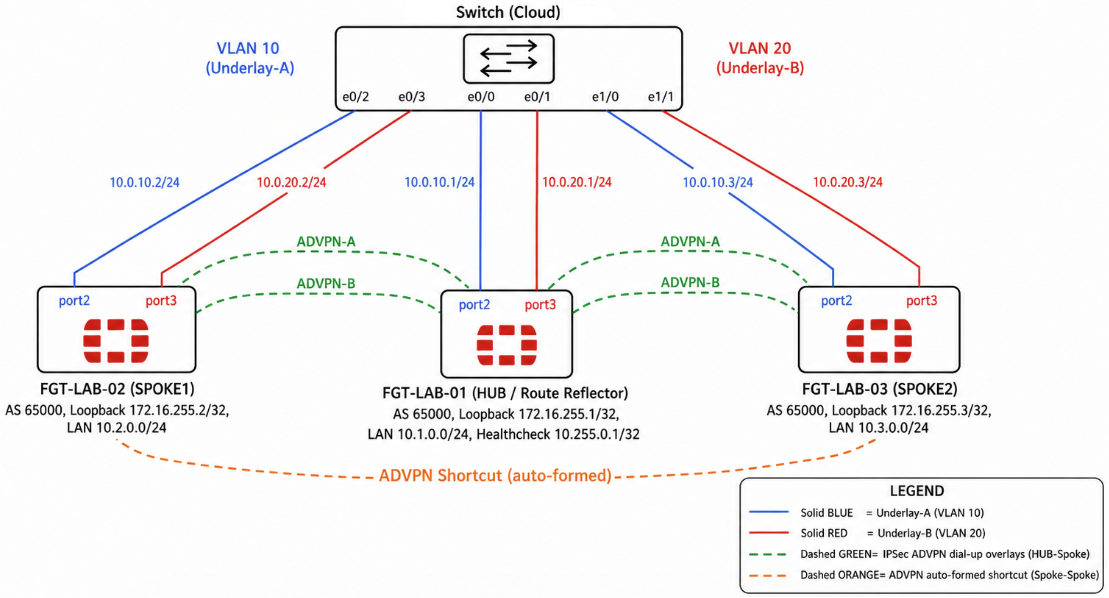

This article describes how to deploy a scalable SD-WAN topology with ADVPN 2.0 dial-up tunnels, iBGP peering on loopback interfaces, automatic spoke-to-spoke shortcuts, and per-overlay SD-WAN health checks. The design uses one Hub acting as a Route Reflector and two Spokes connecting over two underlays (dual transport).

Scope

FortiGate v7.x and earlier.

Solution

Step 1 - HUB: loopbacks and underlay interfaces.

config system interface
    edit "BGP-LO"
        set vdom "root"
        set ip 172.16.255.1 255.255.255.255
        set allowaccess ping
        set type loopback
    next
    edit "HC-LO"
        set vdom "root"
        set ip 10.255.0.1 255.255.255.255
        set allowaccess ping
        set type loopback
    next
    edit "LAN-LO"
        set vdom "root"
        set ip 10.1.0.1 255.255.255.0
        set allowaccess ping
        set type loopback
    next
    edit "port2"
        set ip 10.0.10.1 255.255.255.0
        set allowaccess ping
    next
    edit "port3"
        set ip 10.0.20.1 255.255.255.0
        set allowaccess ping
    next
end

Step 2 - HUB: phase1 (ADVPN sender) and phase2.

config vpn ipsec phase1-interface
    edit "ADVPN-A"
        set type dynamic
        set interface "port2"
        set ike-version 2
        set peertype any
        set net-device disable
        set exchange-ip-addr4 172.16.255.1
        set proposal aes256-sha256
        set add-route disable
        set dpd on-idle
        set dhgrp 14
        set auto-discovery-sender enable
        set auto-discovery-forwarder enable
        set network-overlay enable
        set network-id 10
        set psksecret <PSK>
    next
    edit "ADVPN-B"
        set type dynamic
        set interface "port3"
        set ike-version 2
        set peertype any
        set net-device disable
        set exchange-ip-addr4 172.16.255.1
        set proposal aes256-sha256
        set add-route disable
        set dpd on-idle
        set dhgrp 14
        set auto-discovery-sender enable
        set auto-discovery-forwarder enable
        set network-overlay enable
        set network-id 20
        set psksecret <PSK>
    next
end
config vpn ipsec phase2-interface
    edit "ADVPN-A-P2"
        set phase1name "ADVPN-A"
        set proposal aes256-sha256
        set dhgrp 14
    next
    edit "ADVPN-B-P2"
        set phase1name "ADVPN-B"
        set proposal aes256-sha256
        set dhgrp 14
    next
end
config system interface
    edit "ADVPN-A"
        set ip 169.254.10.1 255.255.255.255
        set remote-ip 169.254.10.254 255.255.255.0
        set allowaccess ping
    next
    edit "ADVPN-B"
        set ip 169.254.20.1 255.255.255.255
        set remote-ip 169.254.20.254 255.255.255.0
        set allowaccess ping
    next
end

Step 3 - HUB: blackhole routes.

config router static
    edit 0
        set dst 172.16.255.0 255.255.255.0
        set blackhole enable
    next
    edit 0
        set dst 10.0.0.0 255.0.0.0
        set blackhole enable
        set distance 254
    next
end

Step 4 - HUB: SD-WAN zone and members.

config system sdwan
    set status enable
        config zone
            edit "ADVPN"
            next
        end
        config members
            edit 1
                set interface "ADVPN-A"
                set zone "ADVPN"
            next
            edit 2
                set interface "ADVPN-B"
                set zone "ADVPN"
            next
        end
    end

Step 5 - HUB: iBGP with neighbor-group and Route Reflector.

config router bgp
    set as 65000
    set router-id 172.16.255.1
    set keepalive-timer 15
    set holdtime-timer 45
    set ibgp-multipath enable
    set recursive-next-hop enable
    set recursive-inherit-priority enable
    set graceful-restart enable
        config neighbor-group
            edit "Spokes"
                set advertisement-interval 1
                set next-hop-self disable
                set soft-reconfiguration enable
                set interface "BGP-LO"
                set remote-as 65000
                set update-source "BGP-LO"
                set route-reflector-client enable
            next
        end
        config neighbor-range
            edit 0
                set prefix 172.16.255.0 255.255.255.0
                set neighbor-group "Spokes"
            next
        end
        config network
            edit 0
                set prefix 172.16.255.0 255.255.255.0
            next
            edit 0
                set prefix 10.255.0.1 255.255.255.255
            next
            edit 0
                set prefix 10.1.0.0 255.255.255.0
            next
            edit 0
                set prefix 10.0.0.0 255.0.0.0
            next
        end
    end

Step 6 - HUB: firewall policies.

config firewall policy
    edit 0
        set name "ADVPN_to_BGP-LO"
        set srcintf "ADVPN"
        set dstintf "BGP-LO"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "ALL"
    next
    edit 0
        set name "BGP-LO_to_ADVPN"
        set srcintf "BGP-LO"
        set dstintf "ADVPN"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "ALL"
    next
    edit 0
        set name "ADVPN_to_HC-LO"
        set srcintf "ADVPN"
        set dstintf "HC-LO"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "ALL"
    next
    edit 0
        set name "ADVPN_to_LAN-LO"
        set srcintf "ADVPN"
        set dstintf "LAN-LO"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "ALL"
    next
    edit 0
        set name "LAN-LO_to_ADVPN"
        set srcintf "LAN-LO"
        set dstintf "ADVPN"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "ALL"
    next
    edit 0
        set name "ADVPN_to_ADVPN"
        set srcintf "ADVPN"
        set dstintf "ADVPN"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "ALL"
    next
end

Step 7 - SPOKE: loopbacks, underlays, phase1 (ADVPN receiver) and phase2.

Replace <spoke-id> with 2 for SPOKE1 and 3 for SPOKE2.

config system interface
    edit "BGP-LO"
        set vdom "root"
        set ip 172.16.255.<spoke-id> 255.255.255.255
        set allowaccess ping
        set type loopback
    next
    edit "LAN-LO"
        set vdom "root"
        set ip 10.<spoke-id>.0.1 255.255.255.0
        set allowaccess ping
        set type loopback
    next
    edit "port2"
        set ip 10.0.10.<spoke-id> 255.255.255.0
        set allowaccess ping
    next
    edit "port3"
        set ip 10.0.20.<spoke-id> 255.255.255.0
        set allowaccess ping
    next
end
config vpn ipsec phase1-interface
    edit "ADVPN-A"
        set interface "port2"
        set ike-version 2
        set peertype any
        set net-device enable
        set exchange-ip-addr4 172.16.255.<spoke-id>
        set proposal aes256-sha256
        set dpd on-idle
        set dhgrp 14
        set auto-discovery-receiver enable
        set auto-discovery-shortcuts dependent
        set network-overlay enable
        set network-id 10
        set remote-gw 10.0.10.1
        set psksecret <PSK>
    next
    edit "ADVPN-B"
        set interface "port3"
        set ike-version 2
        set peertype any
        set net-device enable
        set exchange-ip-addr4 172.16.255.<spoke-id>
        set proposal aes256-sha256
        set dpd on-idle
        set dhgrp 14
        set auto-discovery-receiver enable
        set auto-discovery-shortcuts dependent
        set network-overlay enable
        set network-id 20
        set remote-gw 10.0.20.1
        set psksecret <PSK>
    next
end
config vpn ipsec phase2-interface
    edit "ADVPN-A-P2"
        set phase1name "ADVPN-A"
        set proposal aes256-sha256
        set dhgrp 14
    next
    edit "ADVPN-B-P2"
        set phase1name "ADVPN-B"
        set proposal aes256-sha256
        set dhgrp 14
    next
end
config system interface
    edit "ADVPN-A"
        set ip 169.254.10.<spoke-id> 255.255.255.255
        set remote-ip 169.254.10.1 255.255.255.0
        set allowaccess ping
    next
    edit "ADVPN-B"
        set ip 169.254.20.<spoke-id> 255.255.255.255
        set remote-ip 169.254.20.1 255.255.255.0
        set allowaccess ping
    next
end

Step 8 - SPOKE: blackhole and SD-WAN (zone, members, healthcheck, service rule).

config router static
    edit 0
        set dst 10.0.0.0 255.0.0.0
        set blackhole enable
        set distance 254
    next
end
config system sdwan
    set status enable
        config zone
            edit "ADVPN"
            next
        end
        config members
            edit 1
                set interface "ADVPN-A"
                set zone "ADVPN"
                set priority 1
            next
            edit 2
                set interface "ADVPN-B"
                set zone "ADVPN"
                set priority 2
            next
        end
        config health-check
            edit "HCHub"
                set server "10.255.0.1"
                set members 1 2
                set source 172.16.255.<spoke-id>
                    config sla
                        edit 1
                            set link-cost-factor latency
                            set latency-threshold 250
                        next
                    end
                next
            end
            config service
                edit 1
                    set name "ADVPN-SLA"
                    set mode sla
                    set src "all"
                    set dst "all"
                        config sla
                            edit "HCHub"
                                set id 1
                            next
                        end
                    set priority-members 1 2
                next
            end
        end

Step 9 - SPOKE: route-map and BGP.

config router route-map
    edit "FROM_HUB_TAG"
        config rule
            edit 1
                set set-tag 100
            next
        end
    next
end
config router bgp
    set as 65000
    set router-id 172.16.255.<spoke-id>
    set keepalive-timer 15
    set holdtime-timer 45
    set ibgp-multipath enable
    set recursive-next-hop enable
    set graceful-restart enable
    set tag-resolve-mode merge
        config neighbor
            edit "172.16.255.1"
                set advertisement-interval 1
                set soft-reconfiguration enable
                set interface "BGP-LO"
                set remote-as 65000
                set route-map-in "FROM_HUB_TAG"
                set update-source "BGP-LO"
                set connect-timer 1
            next
        end
        config network
            edit 0
                set prefix 172.16.255.<spoke-id> 255.255.255.255
            next
            edit 0
                set prefix 10.<spoke-id>.0.0 255.255.255.0
            next
        end
    end

Step 10 - SPOKE: firewall policies.

config firewall policy
    edit 0
        set name "BGP-LO_to_ADVPN"
        set srcintf "BGP-LO"
        set dstintf "ADVPN"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "ALL"
    next
    edit 0
        set name "ADVPN_to_BGP-LO"
        set srcintf "ADVPN"
        set dstintf "BGP-LO"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "ALL"
    next
    edit 0
        set name "ADVPN_to_LAN-LO"
        set srcintf "ADVPN"
        set dstintf "LAN-LO"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "ALL"
    next
    edit 0
        set name "LAN-LO_to_ADVPN"
        set srcintf "LAN-LO"
        set dstintf "ADVPN"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "ALL"
    next
end

Verification:

IPsec - three tunnels per spoke (HUB-A, HUB-B, and the auto-formed shortcut).

SPOKE1 # diagnose vpn tunnel list
name=ADVPN-A_0 serial=a 10.0.10.2:0->10.0.10.3:0 tun_id=10.0.10.3 status=up
name=ADVPN-A serial=1 10.0.10.2:0->10.0.10.1:0 tun_id=10.0.10.1 status=up
name=ADVPN-B serial=2 10.0.20.2:0->10.0.20.1:0 tun_id=10.0.20.1 status=up

BGP peering — TCP session loopback <-> loopback.

HUB # get router info bgp neighbors 172.16.255.2
BGP neighbor is 172.16.255.2, remote AS 65000, local AS 65000, internal link
BGP state = Established, up for 03:39:38
Update source is BGP-LO
Local host: 172.16.255.1, Local port: 179
Foreign host: 172.16.255.2, Foreign port: 9403
Nexthop interface: BGP-LO

BGP summary on HUB:

HUB # get router info bgp summary
Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd
172.16.255.2 4 65000 1007 1013 6 0 0 03:39:35 2
172.16.255.3 4 65000 1005 1007 6 0 0 03:39:35 2

IKE-injected loopback routes (ECMP across both overlays).

HUB # get router info routing-table all | grep 172.16.255
S 172.16.255.2/32 [15/0] via ADVPN-A tunnel 172.16.255.2
[15/0] via ADVPN-B tunnel 10.0.0.3
S 172.16.255.3/32 [15/0] via ADVPN-B tunnel 172.16.255.3
[15/0] via ADVPN-A tunnel 10.0.0.4

Spoke-to-spoke shortcut auto-forms on first inter-spoke flow.

SPOKE1 # execute ping-options source 10.2.0.1
SPOKE1 # execute ping 10.3.0.1
icmp_seq=0 ttl=254 time=10.8 ms <- first packet via HUB
icmp_seq=1 ttl=255 time=2.1 ms <- shortcut formed; direct
icmp_seq=2 ttl=255 time=1.7 ms
icmp_seq=3 ttl=255 time=2.4 ms

TTL goes from 254 to 255 between packets 0 and 1, confirming the HUB hop is gone. Latency ~5× lower.

SD-WAN healthcheck monitoring all paths including the shortcut:

diagnose sys sdwan health-check status
Health Check(HCHub):
Seq(1 ADVPN-A): state(alive) loss(0%) latency(3.5ms) jitter(2.3ms) mos(4.40) sla_map=0x1
Seq(1 ADVPN-A_0): state(alive) loss(0%) latency(3.0ms) jitter(2.8ms) mos(4.40) sla_map=0x1
Seq(2 ADVPN-B): state(alive) loss(0%) latency(2.0ms) jitter(1.6ms) mos(4.40) sla_map=0x1

sla_map=0x1 means SLA #1 (latency < 250 ms) is satisfied on every path, including the auto-formed ADVPN-A_0 shortcut.

Notes:

HUB BGP next-hop-self disable is mandatory for dependent shortcuts to fire. Earlier Fortinet examples show enable; that prevents shortcut formation.
exchange-ip-addr4 <own-lo.BGP> in phase1 makes IKE inject /32 routes for peer loopbacks automatically — no manual statics needed.
HUB: net-device disable + auto-discovery-sender enable + auto-discovery-forwarder enable. SPOKE: net-device enable + auto-discovery-receiver enable + auto-discovery-shortcuts dependent.
Single healthcheck with multiple members (not one per overlay). FortiGate rejects two healthchecks pointing to the same server IP. Output reports each member as a separate Seq() line.
Healthcheck names cannot contain hyphens on 7.4.11 (HC-A fails, HCA works).
Keep the 172.16.255.0/24 summary advertised by the HUB. The first inter-spoke packet uses it as fallback while the shortcut negotiates; from packet 2 onward traffic goes direct.
Firewall policy is required between BGP-LO and the ADVPN zone. Without it, BGP TCP/179 stays in Connect state.

Sign up

Login with SSO

Login to the community

Login with SSO

Scanning file for viruses.

This file cannot be downloaded
