Technical Tip: How to configure an IPsec remote access tunnel using the Wizard Feature in FortiGate 7.6 and lower versions

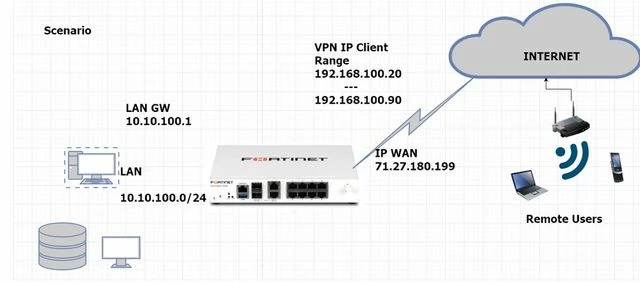

Scenario:

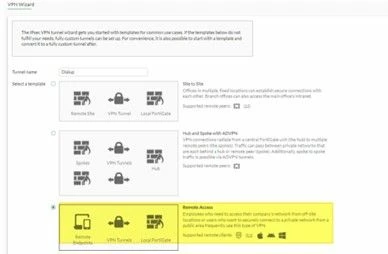

Create an IPsec VPN with the VPN Wizard on FortiGate:

• Select the VPN type (Remote Access was chosen in this case).

• Use a client pool with approximately 20 IP addresses:

  • Pool range: 192.168.100.20 to 192.168.100.40

Version 7.6.2:

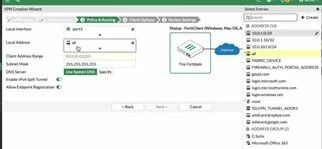

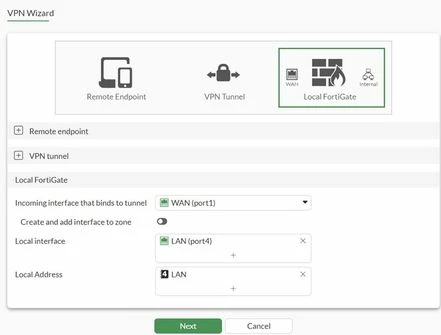

The incoming interface (connected to the Internet) and the local interface (connected to the LAN) must be declared. A pool for remote user connections must be created, along with user/group access for remote connections. The Split Tunneling option ensures internal resources remain reachable.

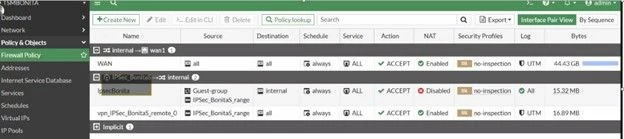

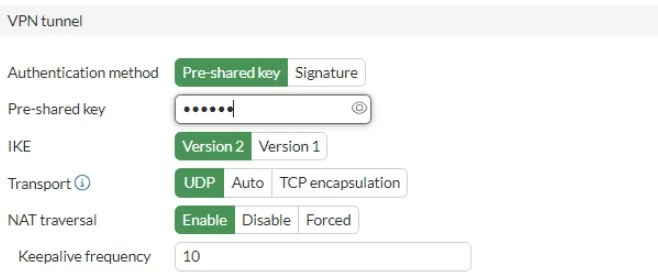

Configure the IPsec VPN parameters and policies, then validate the configuration.

Lower versions than 7.6.x.

The configuration remains similar to version 7.6.x, but the GUI differs (e.g., classic view in 7.4.7).

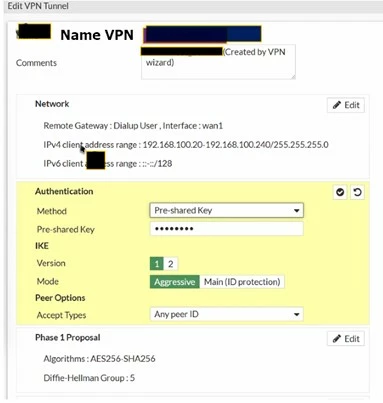

After using the VPN Wizard, navigate to VPN -> IPsec Tunnels and double-click the VPN to verify parameters. Ensure XAUTH is enabled in the wizard to match the user group for VPN access.

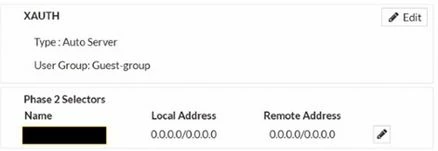

Phase 2 Selector Parameters:

• Proposals: AES-256, SHA-256.

• Diffie-Hellman Group: 5.

Configuration Validation:

Use FortiClient 7.4.3 (compatible with these FortiGate versions).

Replicate same parameters on it.

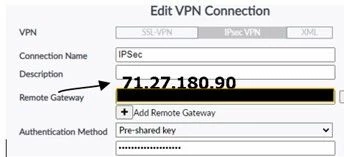

Parameters on FortiClient:

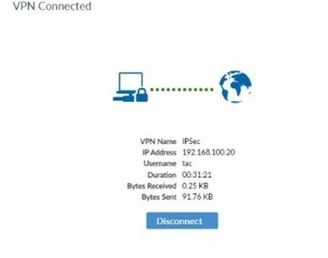

Testing Connectivity:

On a Windows device:

• Ping the LAN's default gateway behind the FortiGate.

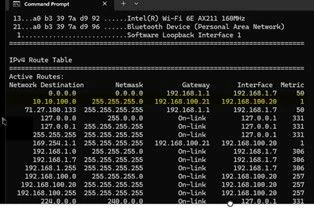

• Execute route print to confirm the internal segment is reachable via the VPN pool IP.

Verification:

In the IPsec Monitor, filter the same VPN, and the connected client details will be seen:

From the CLI the same information can be see as follows:

diagnose vpn tunnel list
list all ipsec tunnel in vd 0
------------------------------------------------------
name=adminFCT_0 ver=1 serial=e 10.5.135.146:4500->10.5.145.161:53714 nexthop=0.0.0.0 tun_id=10.10.10.1 tun_id6=::10.0.0.7 status=up dst_mtu=1500 weight=1
bound_if=3 real_if=3 lgwy=static/1 tun=intf mode=dial_inst/3 encap=none/74664 options[123a8]=npu rgwy-chg rport-chg frag-rfc run_state=0 role=primary accept_traffic=1 overlay_id=0

parent=adminFCT index=0
proxyid_num=1 child_num=0 refcnt=6 ilast=7 olast=43317130 ad=/0
stat: rxp=269 txp=0 rxb=20046 txb=0
dpd: mode=on-demand on=1 status=ok idle=20000ms retry=3 count=0 seqno=0
natt: mode=keepalive draft=0 interval=10 remote_port=53714
fec: egress=0 ingress=0
proxyid=adminFCT proto=0 sa=1 ref=2 serial=1 add-route
src: 0:0.0.0.0-255.255.255.255:0
dst: 0:10.10.10.1-10.10.10.1:0
SA: ref=3 options=20682 type=00 soft=0 mtu=1422 expire=42252/0B replaywin=2048
seqno=1 esn=0 replaywin_lastseq=0000010d qat=0 rekey=0 hash_search_len=1
life: type=01 bytes=0/0 timeout=43190/43200
dec: spi=2275519e esp=aes key=16 bf8d7f5224894941702c034052f1c6b1
ah=sha1 key=20 102a3ea732a2cfc838d36b0f0a5c25d32b550276
enc: spi=5de24c3f esp=aes key=16 9970a4234370b073dce4b4bf4dc1b2ae
ah=sha1 key=20 6ecd3ff7ae7f36dd309f6ebd569ba4ce9a62a70e
dec:pkts/bytes=269/20046, enc:pkts/bytes=0/0
npu_flag=00 npu_lgwy=0.0.0.0:0 npu_rgwy=0.0.0.0:0
npu_selid=9 dec_npuid=0 enc_npuid=0

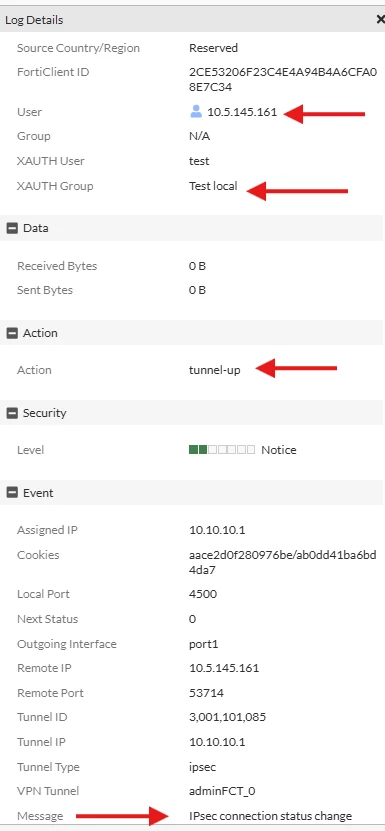

The VPN event logs will be as follows which shows in a clear manner:

date=2026-02-24 time=17:54:38 eventtime=1771935878707040318 tz="+0530" logid="0101037138" type="event" subtype="vpn" level="notice" vd="root" logdesc="IPsec connection status changed" msg="IPsec connection status change" action="tunnel-up" remip=10.5.145.161 locip=10.5.135.146 remport=53714 locport=4500 outintf="port1" srccountry="Reserved" cookies="aace2d0f280976be/ab0dd41ba6bd4da7" user="10.5.145.161" group="N/A" useralt="N/A" xauthuser="test" xauthgroup="Test local" assignip=10.10.10.1 vpntunnel="adminFCT_0" tunnelip=10.10.10.1 tunnelid=3001101085 tunneltype="ipsec" duration=0 sentbyte=0 rcvdbyte=0 nextstat=0 fctuid="2CE53206F23C4E4A94B4A6CFA08E7C34" advpnsc=0

These logs will clearly show the user details, including the assigned IP and other details, on a successful connection.
