Technical Tip: How to check whether deep inspection is performed using the browser and wireshark

Description

This article explains how to check whether a deep inspection is performed using the browser and Wireshark.

Solution

How to check, using the browser:

1. Deep inspection is not performed:

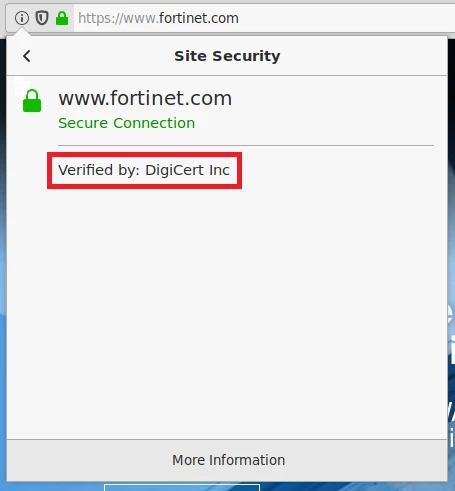

   Navigate to the URL. Then select the button next to the URL:

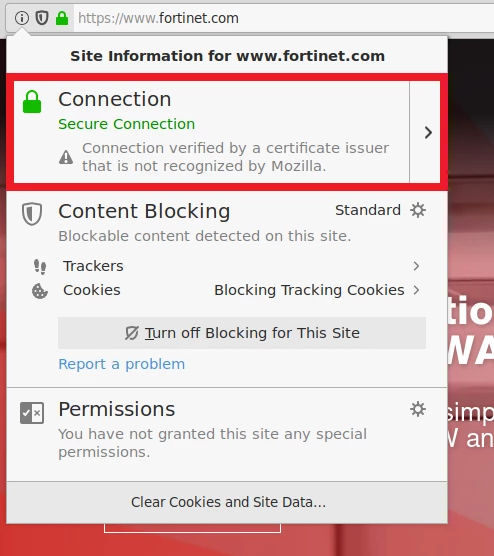

   and select the 'Connection' button:



Navigate to the URL. Then select the button next to the URL:

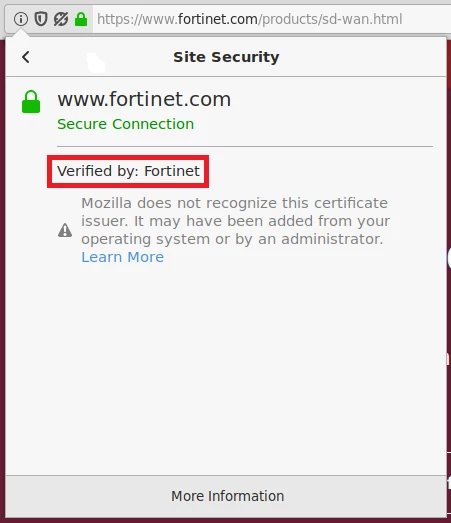

'Verified by: Fortinet' means that deep inspection is performed, since 'Fortinet' is not a public CA.



How to check, using Wireshark:



It is not always possible to check whether a deep inspection is performed using the browser. Alternatively, it is also possible to check whether a deep inspection is performed using Wireshark:

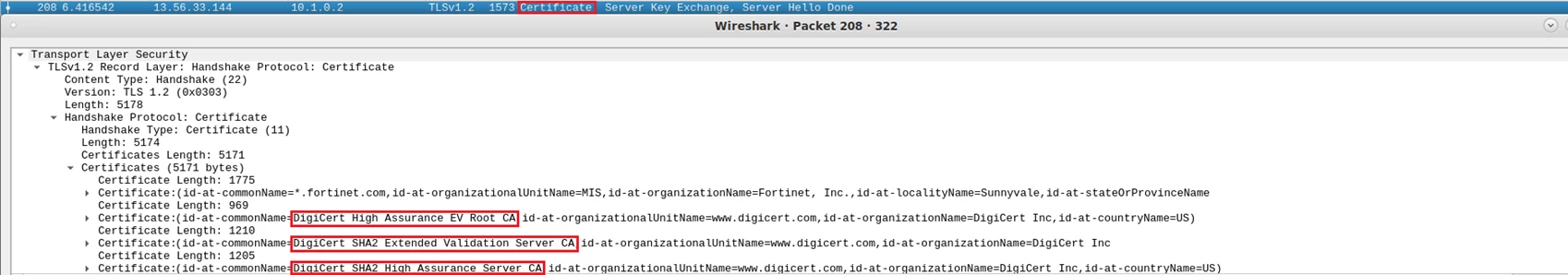

1. Deep inspection is not performed:

• Open a pcap file in Wireshark.
• Trace the TLS session and find a packet with a certificate.
• Expand 'Transport Layer Security' field and find trusted public CA certificates.

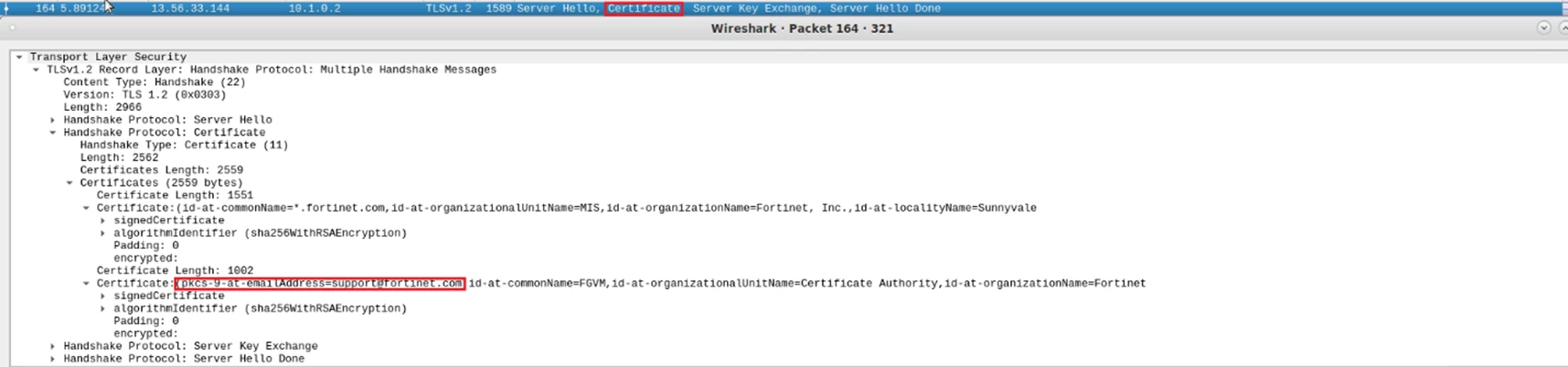

     2. Deep inspection is performed:



• Open a pcap file in Wireshark.
• Trace the TLS session and find a packet with a certificate.
• Expand the 'Transport Layer Security' field and find the self-signed CA certificate.







In the case of TLS 1.3, the certificate is encrypted.
