Technical Tip: how to check the historical total number of allowed or blocked sessions using Fortiview Sources
| Description | This article explains how to check the historical total number of allowed or blocked sessions using Fortiview Sources. |
| Scope | FortiGate. |

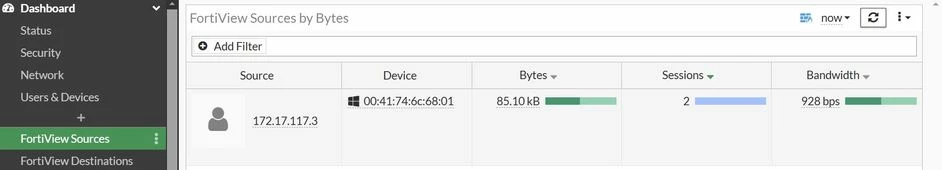

| Solution | Go under Dashboard -> FortiView Sources. When the period is set to 'now,' this page displays the currently active sessions per IP address.

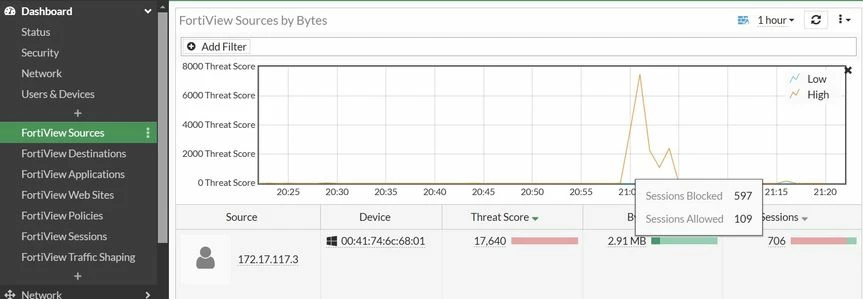

To check the total number of allowed or blocked sessions, change the time-period option from 'now ' to either 5 minutes or 1 hour and hover the cursor over the sessions column.

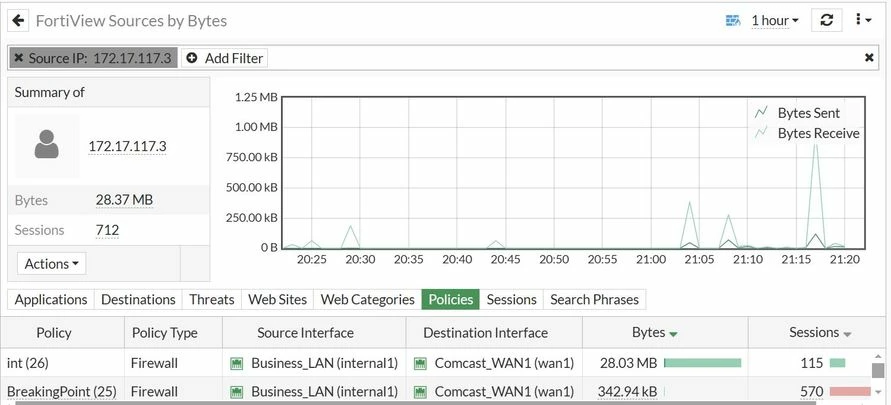

To expand the information, select the IP address to view the category-based information:
