Technical Tip: How to check incoming and outgoing interface based on session output

Description

This article describes how to check the actual incoming and outgoing interfaces based on index values in session output.

Scope

FortiGate.

Solution

'firewallgeeks.com' website, which will be resolved to '92.249.44.124', and observe the incoming and outgoing interfaces based on the index values in the session list output.

Replication:

Access the website 'firewallgeeks.com' from the internal machine, which will create a session in the firewall.

Execute the following commands to filter sessions associated with the website:

diagnose sys session filter clear

diagnose sys session filter dst 92.249.44.124

diagnose sys session list

The above command lines are to clear the current session filter and to apply a filter of destination IP 92.2249.44.124.

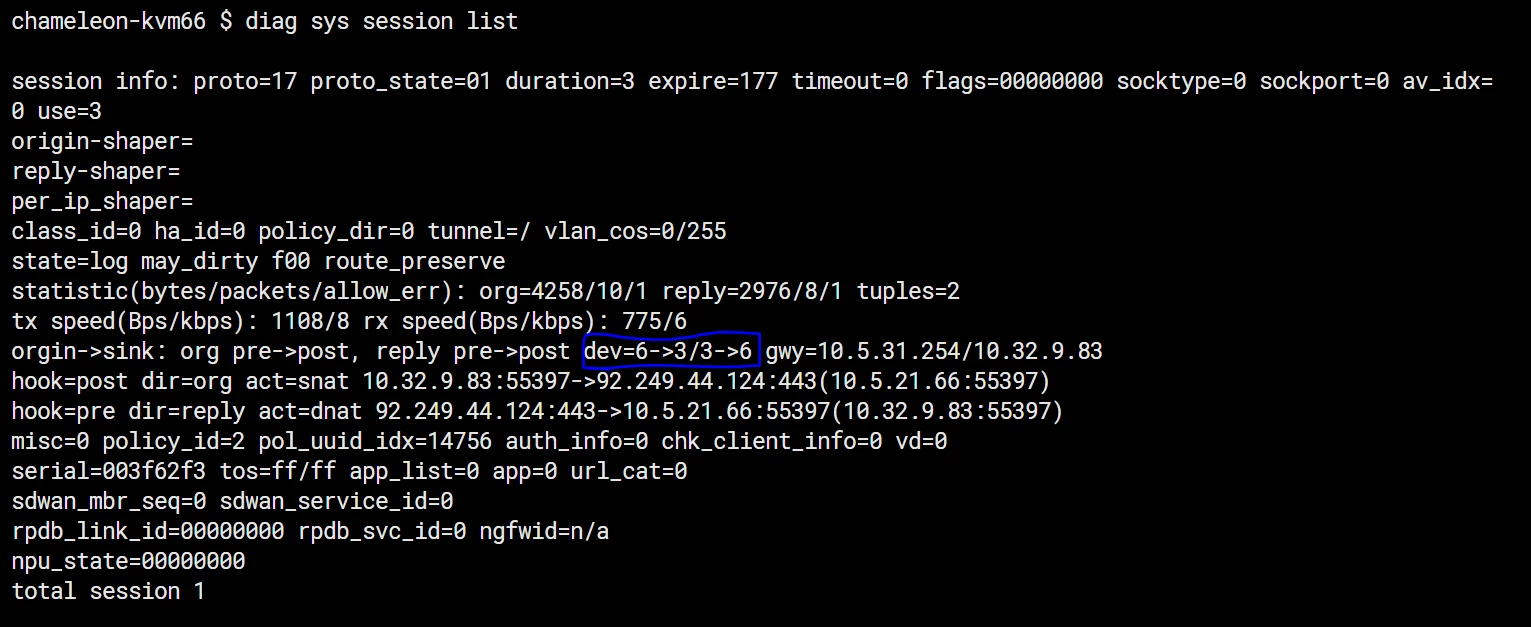

Once these commands are entered,  the session output will focus on the highlighted output:

Here is the dev means interface:

Traffic is coming from index 6 to index 3, and reply traffic is coming from index 3 to index 6. Execute this command 'diagnose netlink interface list' to find out specific interfaces using index values.

if=port4 family=00 type=1 index=6 mtu=1500 link=0 master=0

ref=41 state=start present fw_flags=0 flags=up broadcast run multicast

if=port1 family=00 type=1 index=3 mtu=1500 link=0 master=0

ref=77 state=start present fw_flags=8000000 flags=up broadcast run multicast

So from this output, traffic is coming from port4 to port1, and reply traffic is coming from port1 to port4. It is possible to match the firewall policy with the corresponding interfaces to allow the traffic.
