Technical Tip: How to block the upload or download of files using DLP for HTTP, smtp, pop3, imap

  • January 3, 2015
  • 0 replies
  • 27731 views

Description



This article describes how to use a DLP sensor to block the file upload or download for HTTP/HTTPS, SMTP, POP3, and IMAP on v5.0, v5.2 and newer versions.

Solution



Step1:



For 5v.2.x:

Create a DLP sensor:

  • Go to Security profiles -> Data Leak Prevention -> Create New Filter -> select Files.
  • Specify File Types -> File Name Pattern -> Enter the pattern *.*.
  • Select the services such as HTTP-GET, POP3, or IMAP to block the download over HTTP, POP3, and IMAP.
  • To block the upload and download over HTTP or SMTP, select the services HTTP-POST, HTTP-GET, and SMTP.
  • Set the Action to Block.

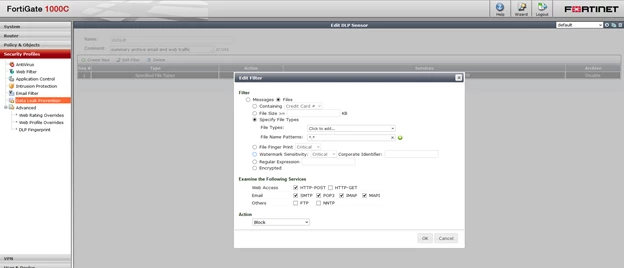

See the screenshot below:






For 5.0.x:

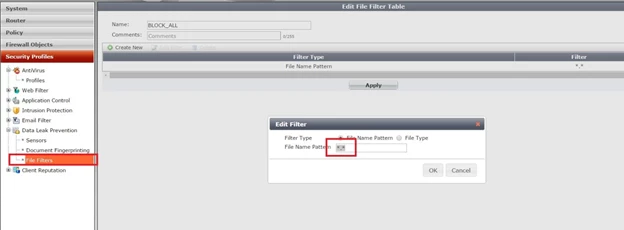

Create a file filter as shown in the screenshot below:

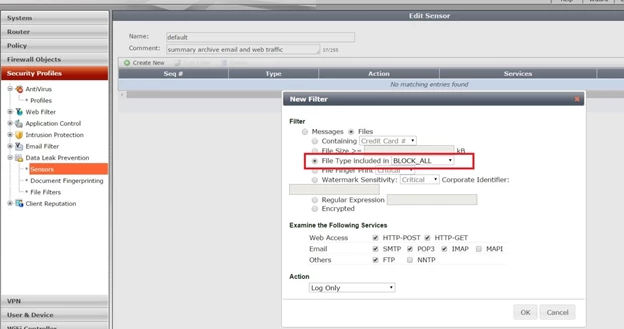

Apply the created file filter under the DLP Sensor:






Step 2: Include it in the required firewall policy.

Once the DLP sensor is configured, enable the configured DLP sensor in a firewall policy.



Important note:

  • http-post will block the uploads from http. Select all protocols to block uploads on all supported protocols.
  • Email protocols will block the complete emails with attachments, not only the attachments. Blocking of email attachments is not possible with the current OS. It would be a new feature request, which can be requested by contacting the local sales team or emailing sales@fortinet.com.
  • For it to work, the user should generate the traffic (upload files) from one of the supported protocols. If the users are using other means to upload or download, it would not work.

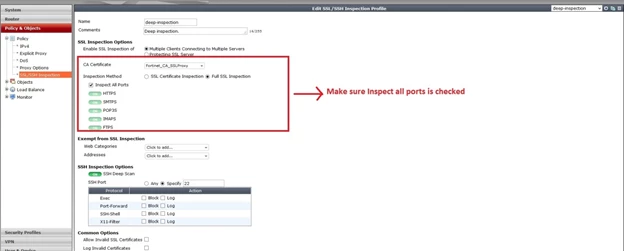

  • For it to work on SSL protocols (https,smtps,pop3s), enable SSL inspection and make sure these options are checked. The screen shot below is attached for reference:






Additional note:

 Make sure the policy should be proxy inspection ,andthe  SSL inspection profile would be deep inspection

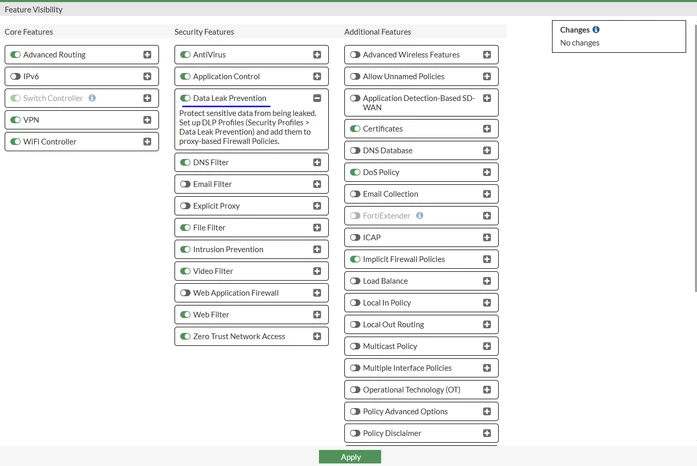

On newer versions, including v7.2.x, v7.4.x and v7.6.x, the feature needs to be enabled under System -> Feature Visibility -> Data Leak Prevention by selecting Apply.

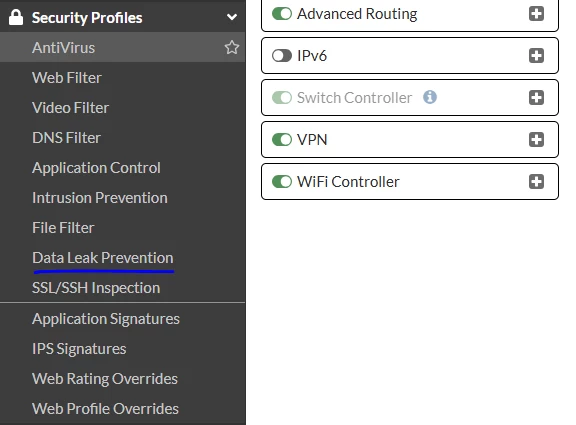

After this step, the option will be visible under Security Profiles as seen below:



DLP Feature Visibility.PNG



DLP Security Profiles.PNG

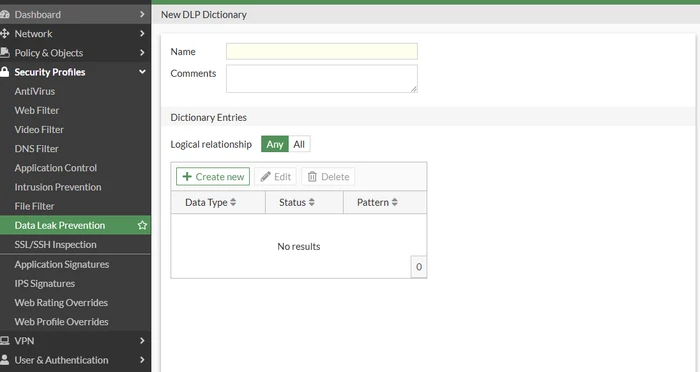

The window view has also changed in newer versions. The 'New DLP Dictionary' looks as follows:



New DLP Dictionary.PNG

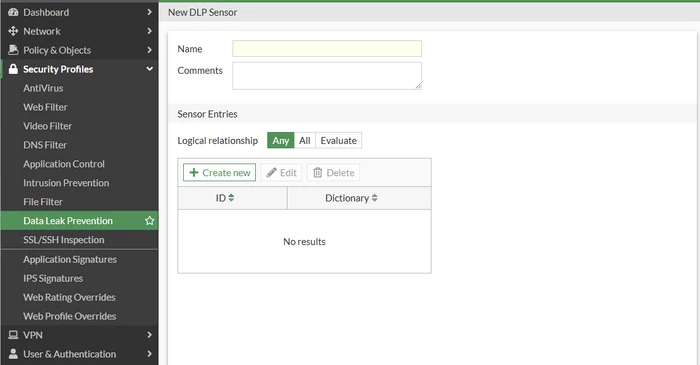

The 'New DLP Sensor' looks as follows:



New DLP Sensor.PNG

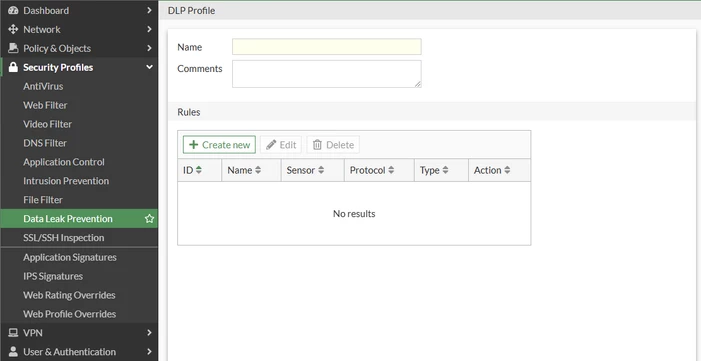

The DLP Profile layout looks as seen below:



DLP Profile.PNG



For more information on how to configure each step of this Security Profile, it is recommended to follow the official documentation of each FortiOS, depending on the FortiGate version the user has.
