Technical Tip: How to block ICMP timestamp and replies for internal traffic

This article demonstrates an example of how to block ICMP timestamps and replies for internal traffic that originates from behind the FortiGate.

The following topology is used:


The goal is to block ICMP timestamps and replies that originated from the machine behind port1 going to ANY internal interface.

1. Create a firewall service for ICMP type 13 (timestamp request) and type 14 (timestamp replies):



config firewall service custom

    edit "TIMESTAMP"
        set protocol ICMP
        set icmptype 13
        unset icmpcode
    next

    edit "TIMESTAMP_Replies"
        set protocol ICMP
        set icmptype 14
        unset icmpcode
    next
end

2. Create a firewall policy to block timestamp requests on the internal interface as follows:

config firewall policy
    edit 0
        set name "Block_ICMP_Type13&14"
        set srcintf "port1"
        set dstintf "any"
        set srcaddr "Local_Subnet"
        set dstaddr "all"
        set schedule "always"

              set action deny
        set service "TIMESTAMP" "TIMESTAMP_Replies"     <----- Services created above.
        set logtraffic all
    next
end

Note:

'edit 0' will create a new policy using the next unused policy ID.

Results:

Before the traffic is initiated, no traffic hits the policy.

After the traffic is initiated:

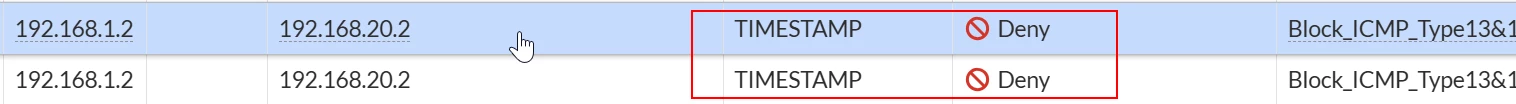

Logs:

ICMP timestamp traffic is being denied.

Note:

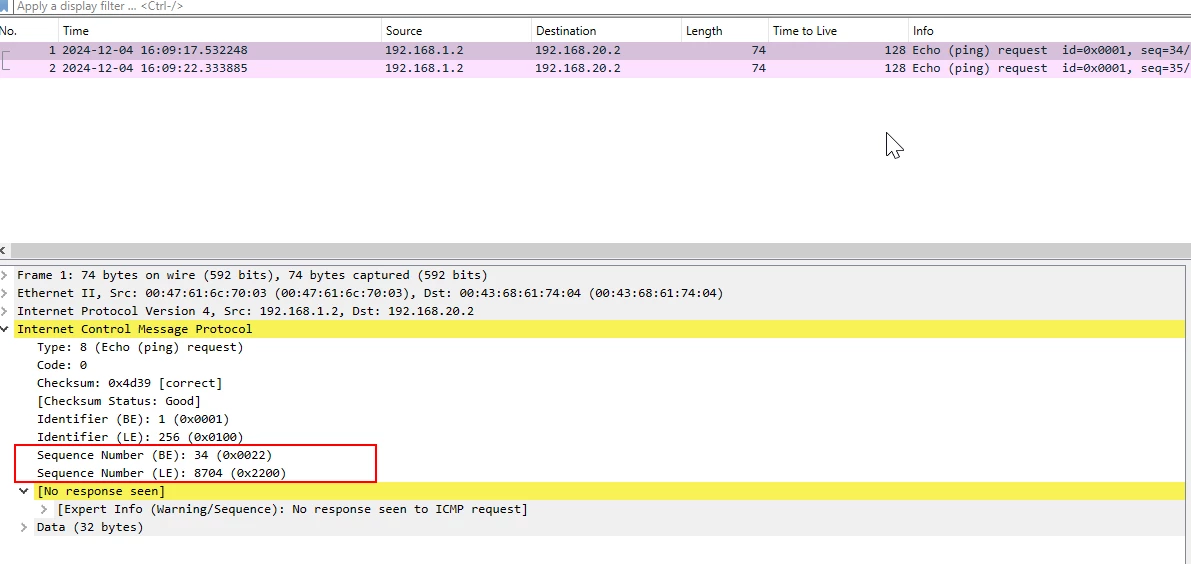

By default, normal ping through Windows does not send ICMP timestamp requests.

To test the ICMP timestamp traffic, a tool such as hping3 or Nmap can be used to generate traffic.

hping3(8) - Linux man page

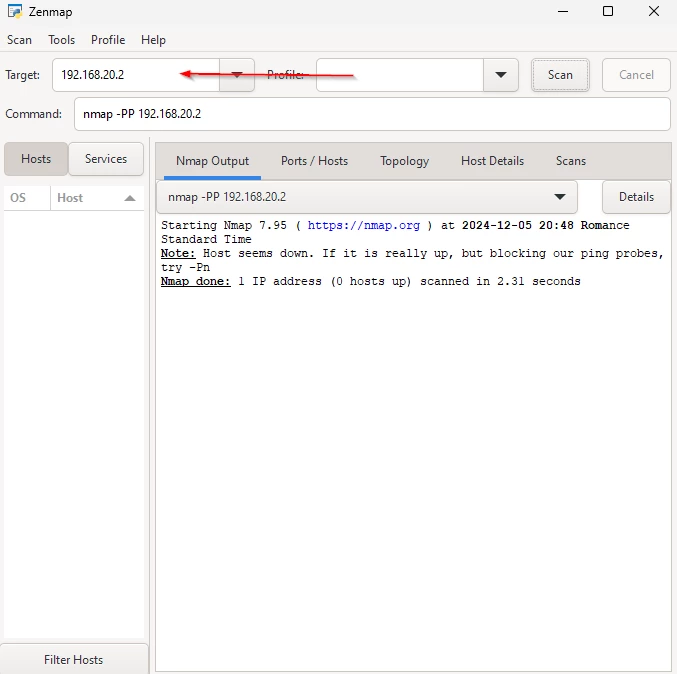

The following shows how traffic can be initiated through NMAP: the target IP has to be mentioned in the target field.


Note:

ICMP timestamps can also be blocked using the 'local-in policy' if it is destined to the FortiGate interface.
Reference: Technical Tip: Block ICMP timestamp on FortiGate interface while keeping ping enabled.

Also, starting from FortiGate v7.6.0, the 'local-in policy' can now be configured in the GUI. Refer to this articlefor reference: Technical Tip: Creating a Local-In policy (IPv4 and IPv6) on GUI.
