Description
This article describes How to apply UTM security profiles on FortiGate interfaces.

Solution

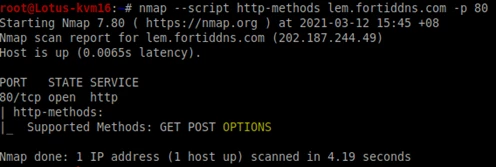

Without UTM security profiles assigned to FortiGate interface:

In this example, IPS Sensor was used but other UTM security profiles can be bind to the firewall interface policy as well.

Solution.

FortiGate.

# config ips custom
    edit "102613"
        set signature "F-SBID( --attack_id 4976; --name \"HTTP.OPTIONS.LEMUEL\"; --service HTTP; --flow from_client; --pattern \"OPTIONS \"; --context uri; --no_case; --within 8,context; )"
        set severity critical
        set action block
        set comment ''
    next
end
# config ips sensor
    edit "IPS_Filter"
        set block-malicious-url enable
        set scan-botnet-connections block
        # config entries
            edit 1
                set rule 4976
                set status enable
                set action block
                set quarantine attacker
                set quarantine-expiry 1d
            next
        end
    next
end
# config firewall interface-policy
    edit 1
        set interface "wan1"
        set srcaddr "all"
        set dstaddr "all"
        set service "ALL"
        set ips-sensor-status enable
        set ips-sensor "IPS_Filter"
    next
end
