Technical Tip: How to allow traffic when using the same logical interface for ingress and egress with source and destination IP is from different network
| Description | This article describes how to allow traffic when only using the same logical interface for ingress and egress with source and destination IPs from different networks. |
| Scope | FortiGate v7.0.14 and later, v7.2.6 and later, v7.4.0 and later, v7.6.0 and later. |
| Solution |   

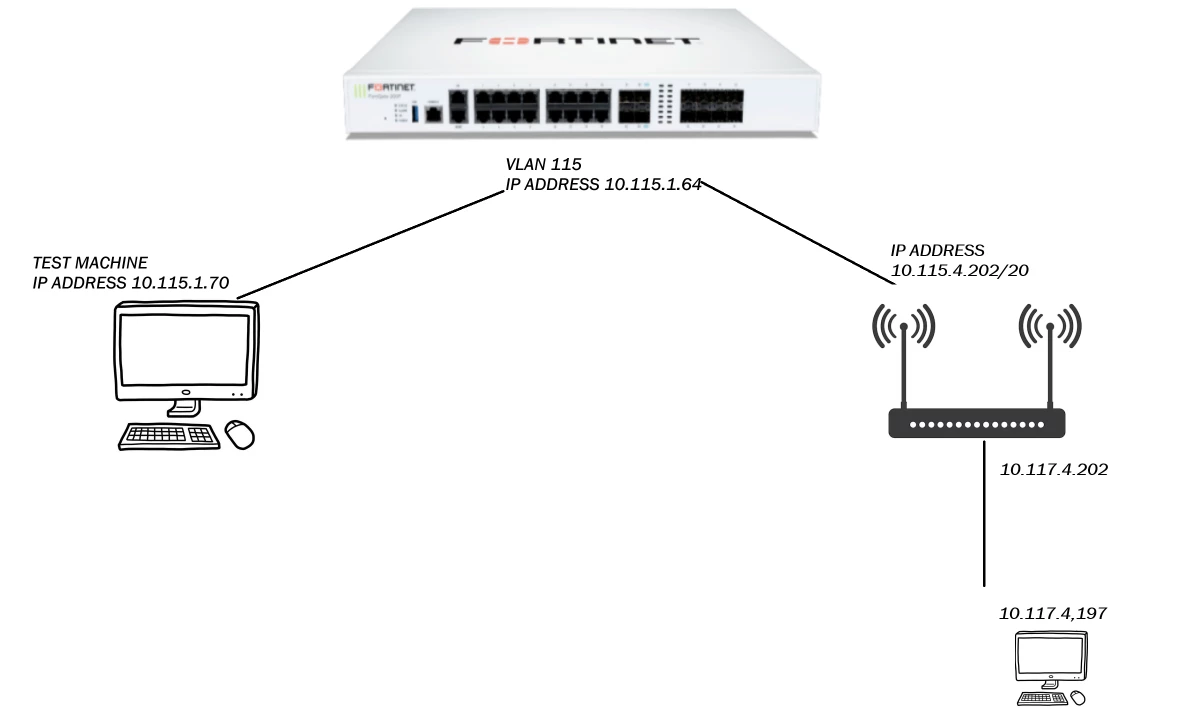

This traffic will not be successful when the 'allow traffic redirect' is enabled, which is enabled by default in the FortiGate global config.
Alza-kvm34 # config sys global Alza-kvm34 (global) # get | grep -f allow-traffic-redirect allow-traffic-redirect: enable <--- ipv6-allow-traffic-redirect: enable <---
Here is how the debug flow will look for the said test traffic when the 'allow traffic redirect' is enabled:
Alza-kvm34 # id=20085 trace_id=54 func=print_pkt_detail line=5867 msg="vd-root:0 received a packet(proto=1, 10.117.4.197:91->10.115.1.70:0) tun_id=0.0.0.0 from vlan 115. type=0, code=0, id=91, seq=0." id=20085 trace_id=54 func=vf_ip_route_input_common line=2611 msg="find a route: flag=00000000 gw-10.115.1.70 via vlan 115" id=20085 trace_id=54 func=fw_forward_dirty_handler line=374 msg="no session matched" id=20085 trace_id=55 func=print_pkt_detail line=5867 msg="vd-root:0 received a packet(proto=1, 10.117.4.197:91->10.115.1.70:0) tun_id=0.0.0.0 from vlan 115. type=0, code=0, id=91, seq=1." id=20085 trace_id=55 func=vf_ip_route_input_common line=2611 msg="find a route: flag=00000000 gw-10.115.1.70 via vlan 115" id=20085 trace_id=55 func=fw_forward_dirty_handler line=374 msg="no session matched" id=20085 trace_id=56 func=print_pkt_detail line=5867 msg="vd-root:0 received a packet(proto=1, 10.117.4.197:91->10.115.1.70:0) tun_id=0.0.0.0 from vlan 115. type=0, code=0, id=91, seq=2." id=20085 trace_id=56 func=vf_ip_route_input_common line=2611 msg="find a route: flag=00000000 gw-10.115.1.70 via vlan 115" id=20085 trace_id=56 func=fw_forward_dirty_handler line=374 msg="no session matched"
The reason it is not working is that the ICMP reply traffic is coming from the subnet 10.117.4.0/24, which is different from the subnet 10.115.1.0/24 on the FortiGate interface.
In this case, to do the traffic redirection, 'ICMP reply' will need to match with the firewall policy and existing session, since asymmetric routing is not permitted on FortiGate by default.
However, no session is established for the ICMP traffic, as ICMP requests have their source address in the same subnet as the FortiGate interface, so no policy or session is required.
From v7.0.16, v7.2.11, v7.4.4, and v7.6.0, the behavior was changed (search for Release Notes -> Changes in default behavior, ID 985508), and no policy or existing session will be required if allow-traffic-redirect is enabled.
Even if the source IP is from a subnet other than the FortiGate's interface subnet, the traffic will be allowed without a policy or session match. It addressed the previous disparity where a source IP from the same subnet as the FortiGate interface subnet was allowed to send traffic towards a destination on another subnet. It required no policy match and a session creation. When the response traffic came back with the source IP from a different subnet than the firewall interface IP, the traffic was not allowed, as it matched no existing session.
If allow-traffic-redirect is disabled, FortiGate will perform a policy match. Due to this behavior change, a policy is required to allow traffic ingressing and egressing from the same interface.
Details can be found in the articles below: Technical Tip: Traffic handled by FortiGate for packet which ingress and egress same interface Technical Tip: How the FortiGate behaves when asymmetric routing is enabled
To make this work, it is necessary to configure the following:
Alza-kvm34 # config sys global Alza-kvm34 (global) # set allow-traffic-redirect disable Alza-kvm34 (global) # end Alza-kvm34 # show sys global | grep -f allow-traffic-redirect config system global set admin-https-redirect disable set admintimeout 480 set allow-traffic-redirect disable <--- set gui-ipv6 enable set gui-local-out enable set hostname "Alza-kvm34" set lldp-transmission enable set timezone 57 end
Alza-kvm34 # config firewall policy Alza-kvm34 (policy) # show config firewall policy edit 1 set name "vlan 115 to 115" set uuid 328a4122-d53d-51ee-9a0f-171d6947d4b6 set srcintf "vlan 115" set dstintf "vlan 115" set action accept set srcaddr "all" set dstaddr "all" set schedule "always" set service "ALL" next end
After doing that, this result will appear:
lza-kvm34 # id=20085 trace_id=72 func=print_pkt_detail line=5867 msg="vd-root:0 received a packet(proto=1, 10.115.1.70:95->10.117.4.197:2048) tun_id=0.0.0.0 from vlan 115. type=8, code=0, id=95, seq=0." id=20085 trace_id=72 func=init_ip_session_common line=6046 msg="allocate a new session-0069d984, tun_id=0.0.0.0" id=20085 trace_id=72 func=iprope_dnat_check line=5336 msg="in-[vlan 115], out-[]" id=20085 trace_id=72 func=iprope_dnat_tree_check line=827 msg="len=0" id=20085 trace_id=72 func=iprope_dnat_check line=5348 msg="result: skb_flags-02000000, vid-0, ret-no-match, act-accept, flag-00000000" id=20085 trace_id=72 func=vf_ip_route_input_common line=2611 msg="find a route: flag=05000000 gw-10.115.4.202 via vlan 115" id=20085 trace_id=72 func=iprope_fwd_check line=782 msg="in-[vlan 115], out-[vlan 115], skb_flags-02000000, vid-0, app_id: 0, url_cat_id: 0" id=20085 trace_id=72 func=__iprope_tree_check line=561 msg="gnum-100004, use addr/intf hash, len=2" id=20085 trace_id=72 func=__iprope_check_one_policy line=2025 msg="checked gnum-100004 policy-1, ret-matched, act-accept" id=20085 trace_id=72 func=__iprope_user_identity_check line=1814 msg="ret-matched" id=20085 trace_id=72 func=__iprope_check_one_policy line=2242 msg="policy-1 is matched, act-accept" id=20085 trace_id=72 func=iprope_fwd_check line=819 msg="after iprope_captive_check(): is_captive-0, ret-matched, act-accept, idx-1" id=20085 trace_id=72 func=iprope_fwd_auth_check line=838 msg="after iprope_captive_check(): is_captive-0, ret-matched, act-accept, idx-1" id=20085 trace_id=72 func=fw_forward_handler line=881 msg="Allowed by Policy-1:" id=20085 trace_id=72 func=__if_queue_push_xmit line=391 msg="send out via dev-port2, dst-mac-00:43:61:6d:44:02" id=20085 trace_id=73 func=print_pkt_detail line=5867 msg="vd-root:0 received a packet(proto=1, 10.117.4.197:95->10.115.1.70:0) tun_id=0.0.0.0 from vlan 115. type=0, code=0, id=95, seq=0." id=20085 trace_id=73 func=resolve_ip_tuple_fast line=5953 msg="Find an existing session, id-0069d984, reply direction" id=20085 trace_id=73 func=vf_ip_route_input_common line=2611 msg="find a route: flag=00000000 gw-10.115.1.70 via vlan 115" id=20085 trace_id=73 func=npu_handle_session44 line=1183 msg="Trying to offloading session from vlan 115 to vlan 115, skb.npu_flag=00000000 ses.state=00000200 ses.npu_state=0x00000100" id=20085 trace_id=73 func=fw_forward_dirty_handler line=410 msg="state=00000200, state2=00000000, npu_state=00000100" id=20085 trace_id=73 func=__if_queue_push_xmit line=391 msg="send out via dev-port2, dst-mac-00:41:6c:7a:28:02" id=20085 trace_id=74 func=print_pkt_detail line=5867 msg="vd-root:0 received a packet(proto=1, 10.115.1.70:95->10.117.4.197:2048) tun_id=0.0.0.0 from vlan 115. type=8, code=0, id=95, seq=1." id=20085 trace_id=74 func=resolve_ip_tuple_fast line=5953 msg="Find an existing session, id-0069d984, original direction" id=20085 trace_id=74 func=ipv4_fast_cb line=53 msg="enter fast path" id=20085 trace_id=74 func=__if_queue_push_xmit line=391 msg="send out via dev-port2, dst-mac-00:43:61:6d:44:02" id=20085 trace_id=75 func=print_pkt_detail line=5867 msg="vd-root:0 received a packet(proto=1, 10.117.4.197:95->10.115.1.70:0) tun_id=0.0.0.0 from vlan 115. type=0, code=0, id=95, seq=1." id=20085 trace_id=75 func=resolve_ip_tuple_fast line=5953 msg="Find an existing session, id-0069d984, reply direction" id=20085 trace_id=75 func=ipv4_fast_cb line=53 msg="enter fast path" id=20085 trace_id=75 func=__if_queue_push_xmit line=391 msg="send out via dev-port2, dst-mac-00:41:6c:7a:28:02"
If reply traffic is dropped while outbound traffic matches the policy, consider disabling anti-replay on the affected policy. Logs typically show outbound traffic allowed, while reply traffic is silently dropped due to replay detection.
config firewall policy edit <policy_id> set anti-replay [ enable | disable ] <----- The default is enabled. next end
Update on the default behavior (starting versions 7.4.10, 7.6.5, and 8.0.0): Beginning with the recent firmware updates, the default values for allow-traffic-redirect and ipv6-allow-traffic-redirect have changed from enable to disable:
show full system global | grep redirect set allow-traffic-redirect disable set ipv6-allow-traffic-redirect disable
During an upgrade, both settings will automatically be switched to disabled, even if they were previously enabled. When these options are disabled, any traffic that enters and egresses through the same interface (physical or logical) must be explicitly permitted by a firewall policy. If it requires traffic redirection based solely on routing decisions, without creating a policy, these settings must be manually re-enabled.
To manually re-enable the traffic redirect:
config system global set allow-traffic-redirect enable set ipv6-allow-traffic-redirect enable end

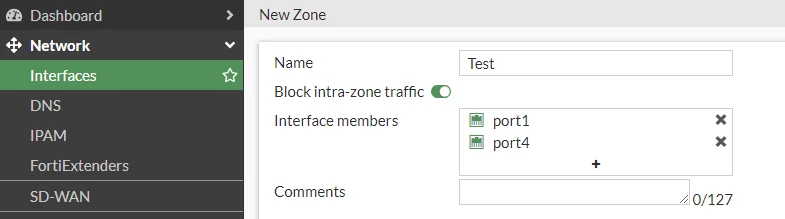

Note: The interface is part of the zone, and the following changes have already been made; however, the traffic is still being blocked.
config system zone
