Technical Tip: How to allow a port

  • September 20, 2019
  • 0 replies
  • 227917 views

Description


This article describes how to allow a port on a FortiGate.
By default, the FortiGate firewall denies all traffic passing through it on all ports due to a pre-configured 'implicit deny policy'.



Scope



FortiGate.

Solution


To allow any traffic through FortiGate on any port, configure the IPv4 policy with the 'action' set to 'Accept/Permit'.

Below is an example of how to allow the RDP port 3389 traffic through FortiGate:

Step 1:

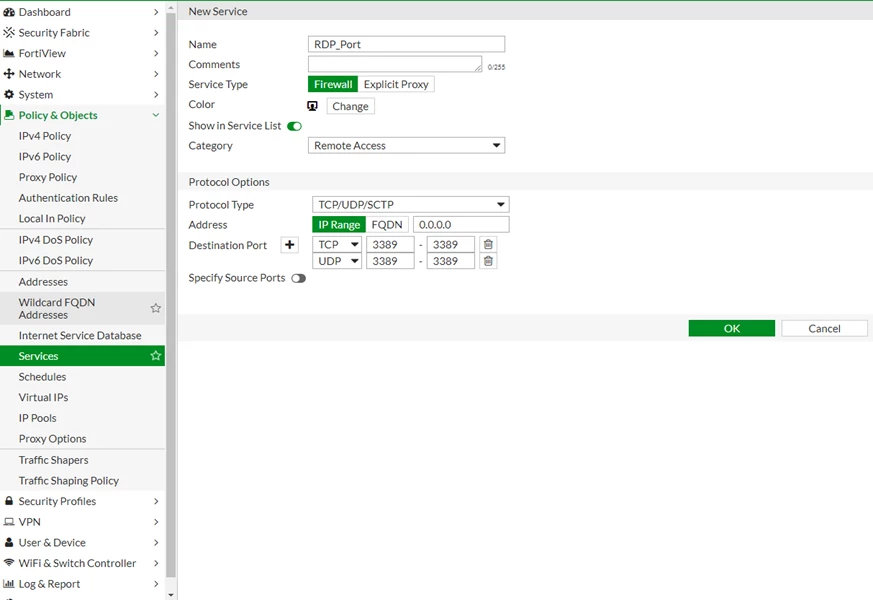

Create the 'Service' Object for the port that needs to be allowed under Policy and Object -> Services.
If it is the standard port, there are predefined service objects under the' service list'.
If not, configure the 'Service' Object under Policy and Object -> Services -> Create New -> Service.


Using the CLI:

config firewall service custom

    edit "RDP_Port"

        set category "Remote Access"
        set tcp-portrange 3389 3389

    next

end


Note: In this RDP example, RDP uses both TCP and UDP, so both need to be added. If there is only a specific protocol, either UDP or TCP, only add that protocol with a port number. Otherwise, the UDP can be added alongside the TCP with the command 'set udp-portrange <low> <high>'.

Step 2:

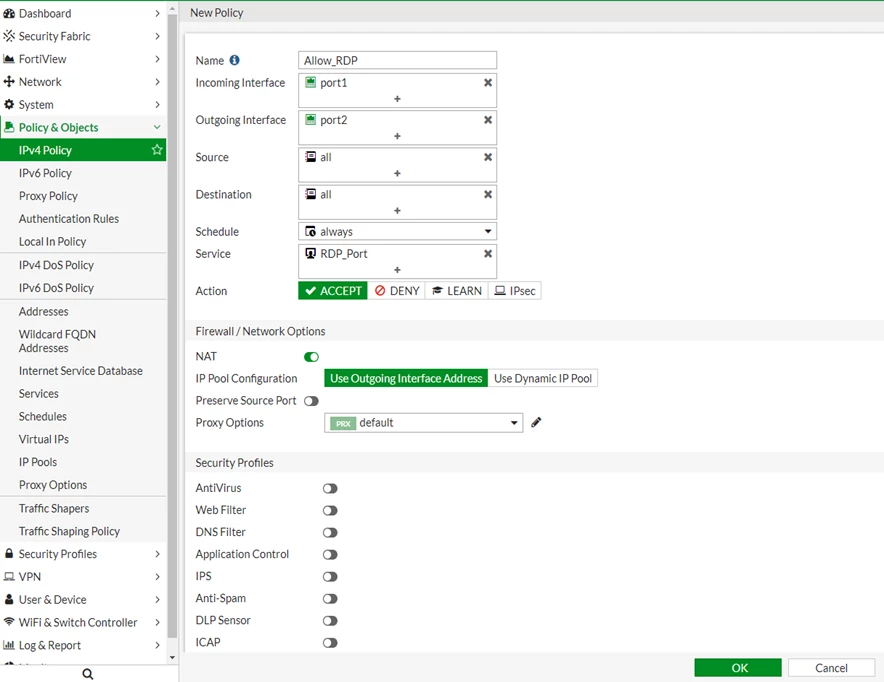

Apply the configured service object 'RDP_Port' under the 'Service' option of the policy configuration:

To create a policy, navigate to Policy and Object -> IPv4 Policy -> Create New.


Using the CLI:

config firewall policy
    edit 11
        set name "Allow_RDP"
        set uuid 902f509c-8249-51ef-9cd2-05d76de7c7d2
        set srcintf "port1"
        set dstintf "port2"
        set action accept
        set srcaddr "all"
        set dstaddr "all"
        set schedule "always"
        set service "RDP_Port"
        set logtraffic all
        set nat enable
    next
end

To verify, run the sniffer as follows:

diagnose sniffer packet any "tcp port 3389 or udp port 3389" 4 0 1
interfaces=[any]
filters=[tcp port 3389 or udp port 3389]
1.427148 port1 in 10.143.3.189.64958 -> 10.5.41.48.3389: syn 2923297620    <- Packet enters on FortiGate Port1 (ingress).
1.427148 port2 out 10.143.3.189.64958 -> 10.5.41.48.3389: syn 2923297620   <- Packet is leaving on port 2 (egress).


Notes:

  • Place this specific policy on top of all other general policies.
  • If it is required to block the specific port, the steps are the same except with the 'action' set to 'Deny'.
  • Configure a Virtual IP (VIP) to allow or deny access to an internal service through FortiGate when the service is hosted on a device behind the FortiGate.
  • Use Local-In Policy to allow or block specific incoming ports targeting FortiGate’s IP.
