Technical Tip: How to add FortiGate-7000 in FortiManager

Environment Details:

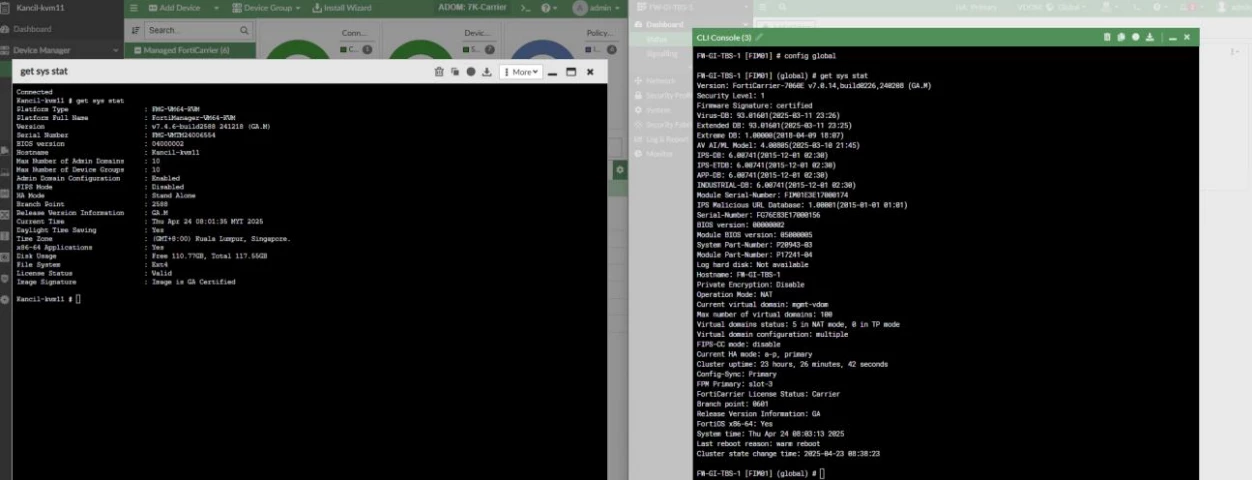

• Chassis v7.0.14 (Build 0226).
• FortiManager v7.4.6 (Build 2588).

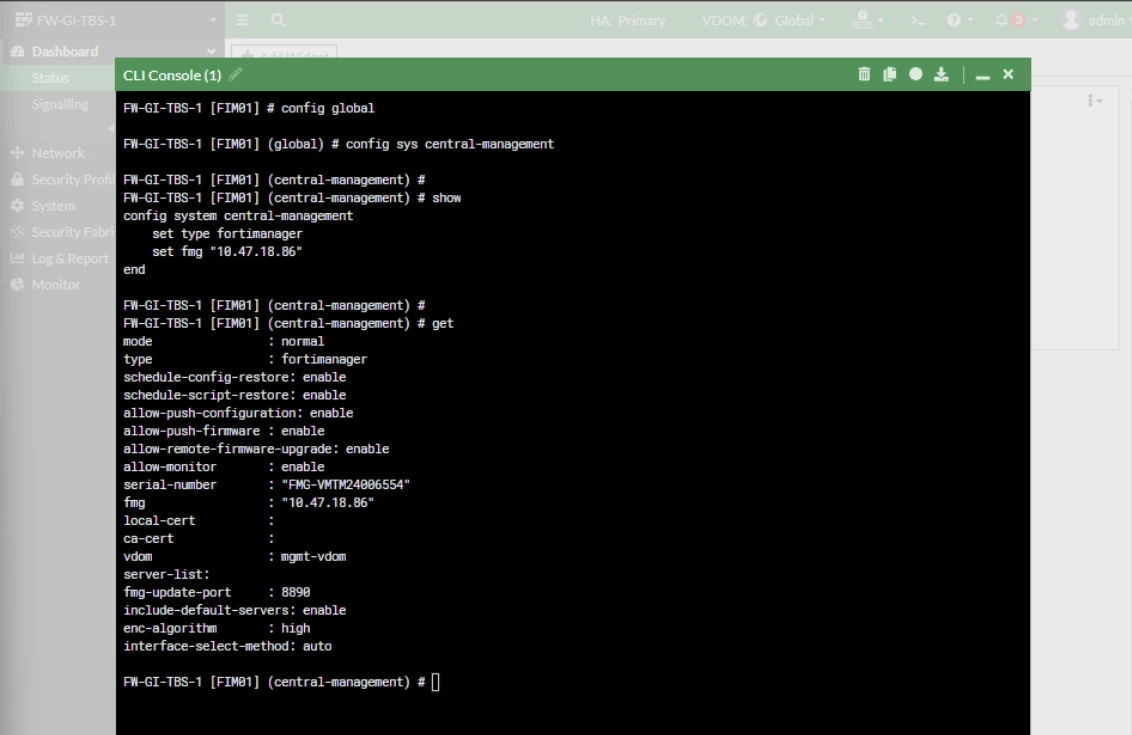

Step 1: Configure Central Management on the Chassis: On the Chassis side, configure the system central-management settings to allow it to connect with FortiManager.

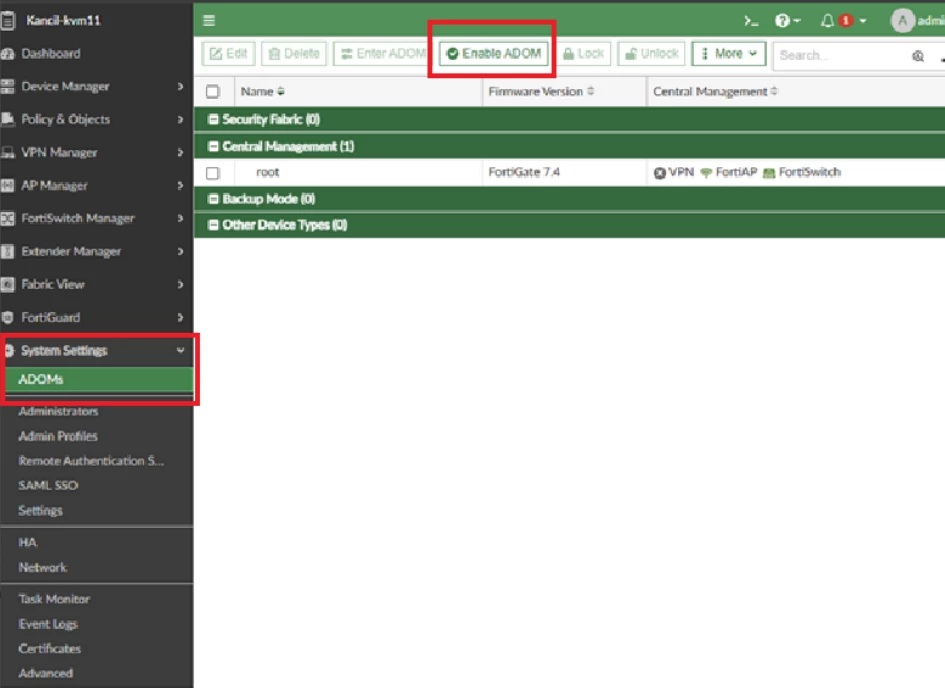

Step 2: Enable ADOM Mode on FortiManager: Log in to FortiManager and enable ADOM (Administrative Domain) Mode.

Note:

After enabling, FortiManager will log out. Log back in to proceed.

Step 3: Create a New ADOM:

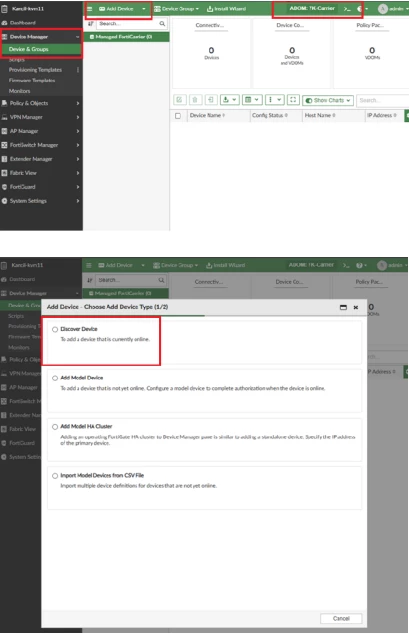

Step 4: Add the Chassis as a Managed Device:

• Go to the newly created 7K-Carrier ADOM.
• Add a new device.

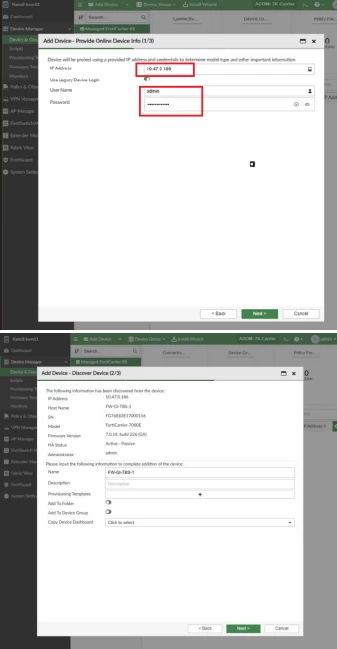

• Enter the IP address of the Chassis (must be reachable by FortiManager).

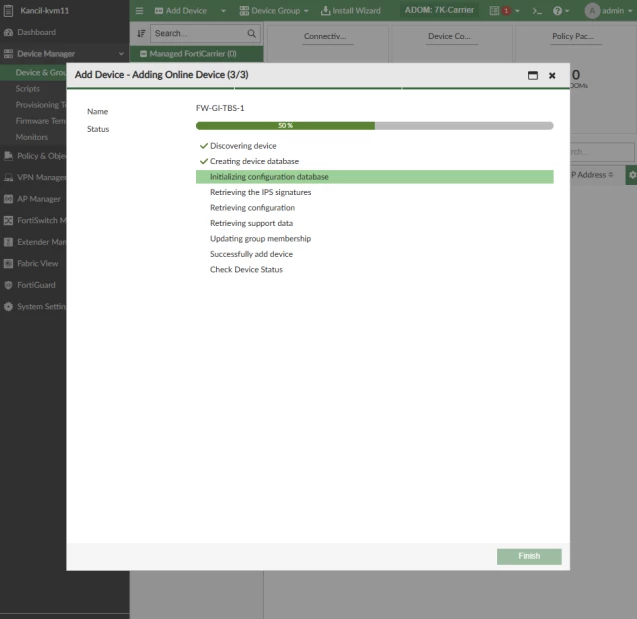

Step 5: Device Discovery: FortiManager will initiate the discovery process. Wait for it to complete.

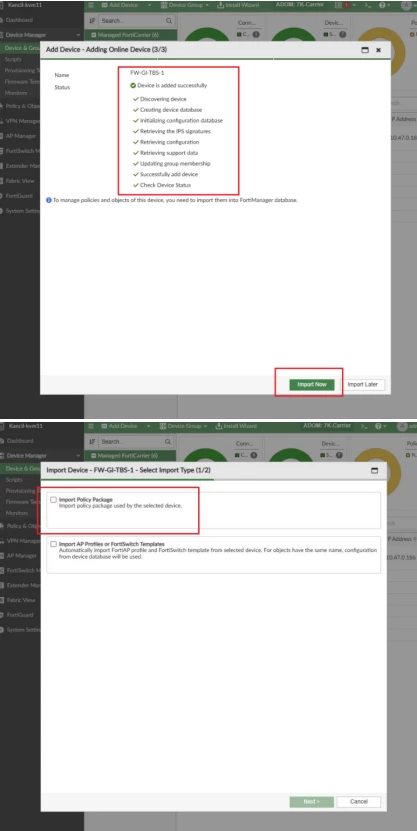

Step 6: Import Chassis Configuration: Once discovery is successful, proceed to import the Chassis configuration:

• Can import configuration per VDOM or all VDOMs at once.
• For this guide, it will import all VDOMs in one go.

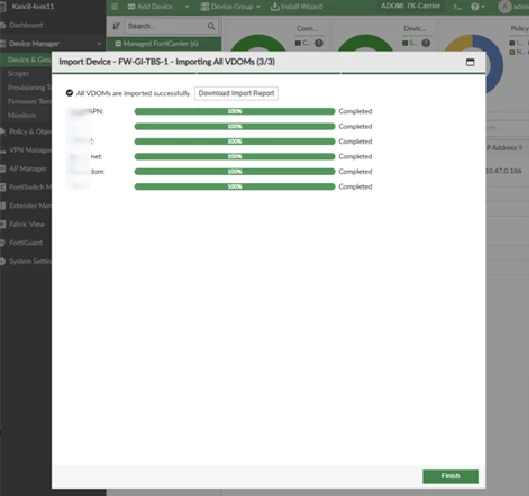

Step 7: Confirmation: Once the import is complete, the Chassis should now appear as successfully managed by FortiManager:

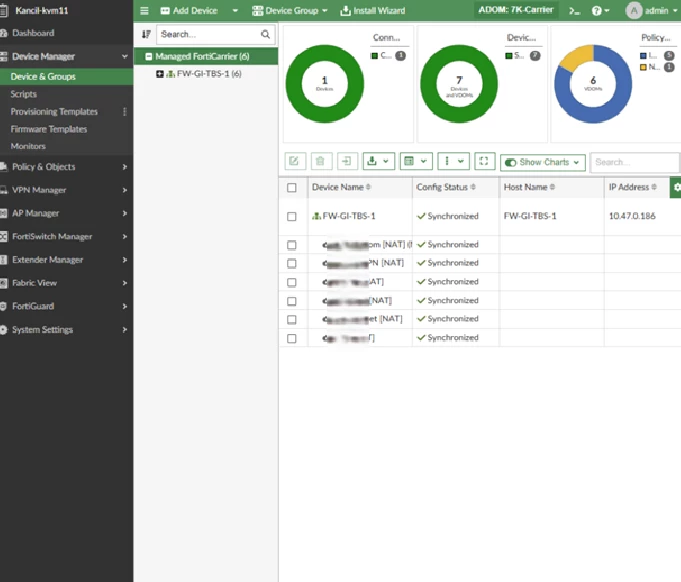

The Chassis is now successfully registered and managed by FortiManager:
