Technical Tip: How many service ports in one service Object
Description
This article describes how many service ports are possible to be added in one Service Object.
Solution
It is possible to add on 16 ports in service object for the TCP or UDP and if more than 16, it is possible to try to add in configuration, it will not allow and delete other 16 entries as well.
In below screenshot the 16 entry was 99-100 and when I tried to add 17 entries from 99-1000 port in CLI I pops up an error.

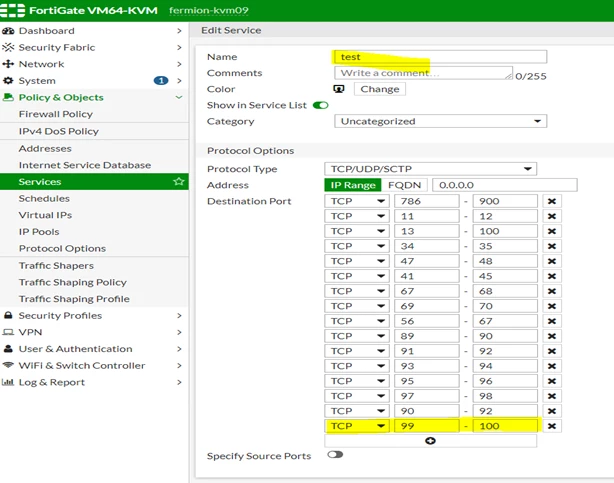

First 16 entry added as below:

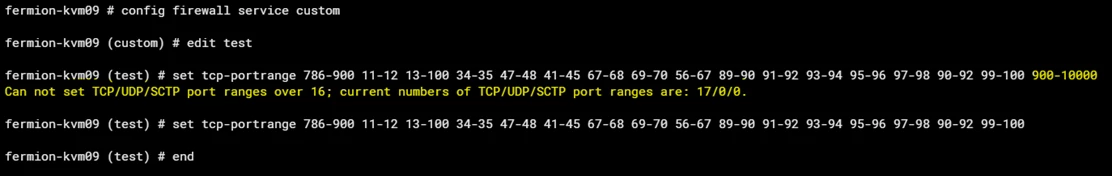

When the user will try to add 17th entry then below is the error from CLI:
Solution.
Need to create Multiple service object to add the ports.
Need to create Multiple service object to add the ports.
