Technical Tip: Heartbeat and Management Interface Configuration Fails to Load in FortiGate GUI after Firmware Upgrade to v7.6.0

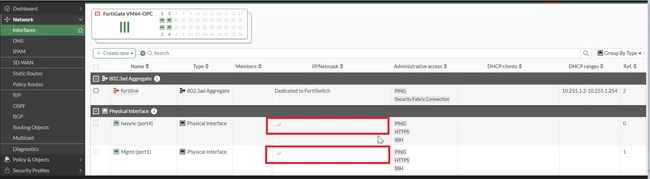

The IP/Netmask configuration for the Heartbeat and Management interfaces continues to spin in the GUI, preventing proper loading, as shown below.

Sample configuration of HA:

config system ha

    set group-name "Fortinet"

    set mode a-p

    set hbdev "port4" 100

    set session-pickup enable

    set ha-mgmt-status enable

        config ha-mgmt-interfaces

            edit 1

                set interface "port1"

                set gateway 10.1.0.1

            next

        end

    set override disable

    set priority 255

end

This issue has been resolved in v7.6.1 (available on the Fortinet Support Portal).
