Technical Tip: Getting error notification when selecting the VPN tunnel interface in firewall policy

  • December 18, 2024
  • 0 replies
  • 405 views
Description This article describes that it is possible to get an error notification when selecting the VPN tunnel as an Incoming/Outgoing interface in the Firewall Policy.
Scope FortiGate.
Solution

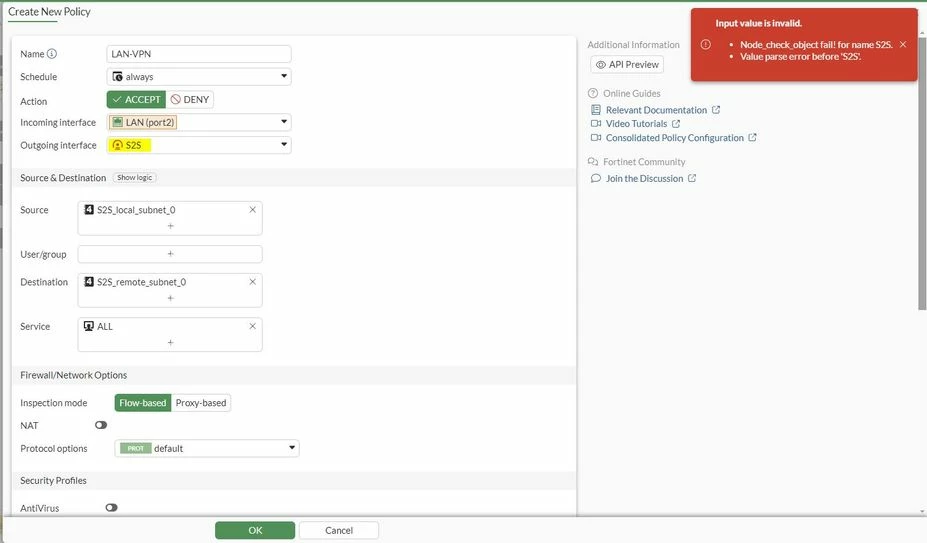

The error notification image below is received when selecting the VPN tunnel as an Incoming/Outgoing interface in the Firewall Policy.


The error notification will appear if the selected VPN tunnel interface is a member of a Zone. To resolve this find the Zone where the VPN tunnel is member.

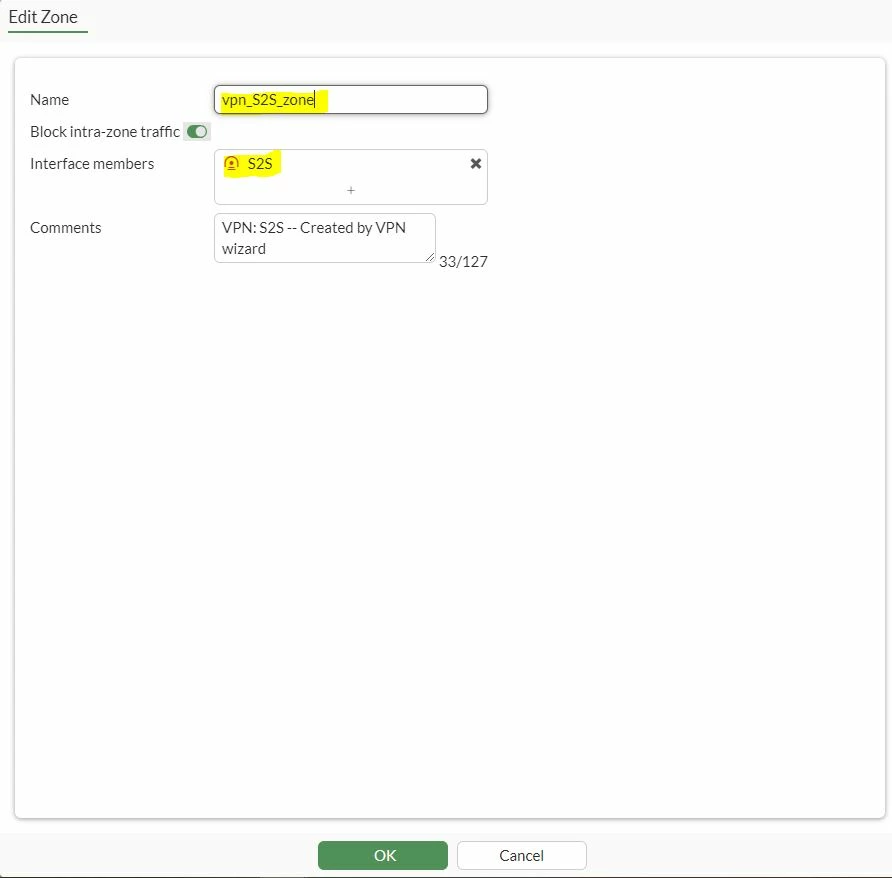

In this image example below VPN tunnel interface 'S2S' was a member of a Zone 'vpn_S2S_zone'. Zone can be found on the FortiGate GUI under Network -> Interfaces -> Zone.

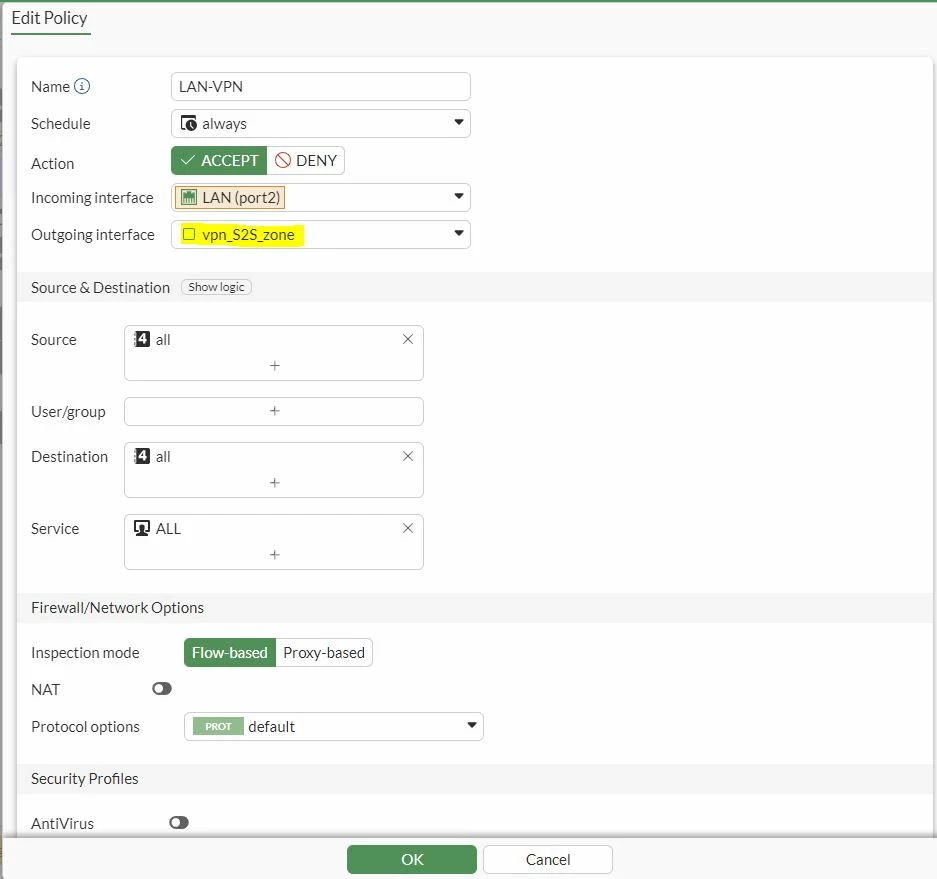

Once the Zone is identified, Select the identified Zone as an Incoming/Outgoing Interface on the Firewall Policy.






The error notification message will disappear as the correct Zone is applied where the VPN tunnel interface is a member.
