Technical Tip: Geography Based Addressing (version 5.4 and above)
Description
This article describes the option to add a geography-based address scheme.
With this type of addressing, the geographic region or country can be indicated.
The FortiGate unit includes an internal list of countries and IPv4 IP addresses based on historical data from the FortiGuard network.
Scope
FortiGate version 5.4 and above.
Solution
In the following examples, a geographic-based address for China is added.
Via CLI:
config firewall address
edit China
set type geography
set country CN
set associated-interface wan1
end
end

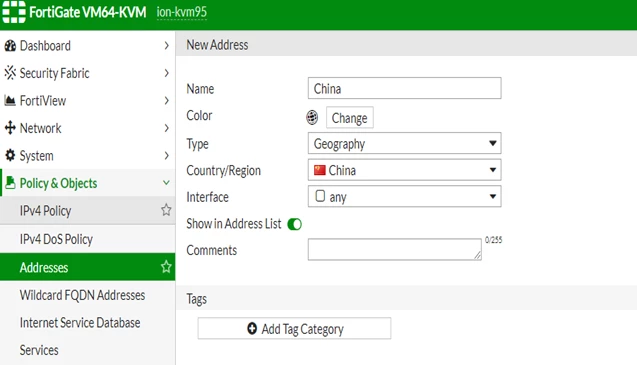

Via GUI:
- Go to Policy & Objects -> Addresses. Select Create New and Address.
- Field Name: Enter China.
- Field Type, select Geography.
- From the Country/Region list, select China.
- From Interface, select WAN1 or Any Interface.
- Select OK.
After adding under security policies, the traffic (originating or going to a particular country) can be logged, blocked, or a specific filtering can be applied.
Diagnose command:
To know the current FortiGuard IP Geography database version in the FortiGate.
diagnose autoupdate versions | grep -A5 Geo
To show the IP range and the total IP range associated with the country:
diagnose firewall ipgeo ip-list <country id>
Determine which country a specific IP address belongs to:
diagnose firewall ipgeo ip2country <IP>
Update FortiGuard IP Geography database:
execute update-geo-ip
