Technical Tip: G Suite MFA using SAML and SSO is not connecting as username in the config mismatch

In the SAML settings, type the below commands:

config user saml

    edit "gsuite-sslvpn"

        set cert "Fortinet_Factory"
        set entity-id "https://<FGT-pub-IP>:<port-ssl-vpn>/remote/saml/metadata/"
        set single-sign-on-url "https://<FGT-pub-IP>:<port-ssl-vpn>/remote/saml/login/"
        set single-logout-url "https://<FGT-pub-IP>:<port-ssl-vpn>/remote/saml/logout/"
        set idp-entity-id "https://accounts.google.com/o/saml2?idpid="
        set idp-single-sign-on-url "https://accounts.google.com/o/saml2/idp?idpid="

        set idp-single-logout-url "https://accounts.google.com/logout"
        set idp-cert "REMOTE_Cert_1"

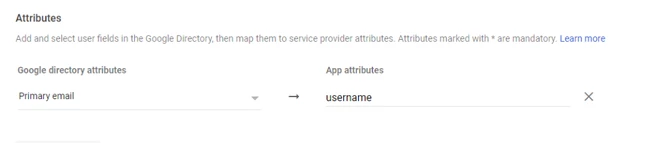

        set user-name "username"  <-- Called username here, In the Google admin it is email.
        set group-name "group" --> Optional.
        set digest-method sha1

    next

end

The logs give errors below:

[352:root:2585]SSL established: TLSv1.3 TLS_AES_256_GCM_SHA384
[352:root:2585]req: /remote/info
[352:root:2585]User Agent: FortiSSLVPN (Windows NT; SV1 [SV{v=02.01; f=07;}])
[352:root:2585]capability flags: 0x3cdf
[352:root:2585]req: /remote/saml/login
[352:root:2585]Transfer-Encoding n/a
[352:root:2585]Content-Length 6171
[352:root:2585]readPostEnter:19 Post Data length 6171.
[352:root:2585]fsv_rmt_saml_login_cb:100 SAML resp 6080.
[352:root:2585]fsv_rmt_saml_login_cb:111 magic id: magic=1-737182982777f1e2
[352:root:2585]fsv_rmt_saml_login_cb:138 idx 1 epoch: 737182982777f1e2
[352:root:2585]stmt: email  <-----
[352:root:2585]fsv_saml_login_response:694 No group info in SAML response.  <----------
[352:root:2585]fsv_saml_login_response:700 No user name info in SAML response. Please check saml configuration.  <-----
[352:root:2585]fsv_saml_login_resp_cb:244 SAML response error: 4.
[352:root:2585]saml login [352:9605] SAML_ERROR: SAML response error 4
[352:root:2585]Timeout for connection 0x7fac854800.

Solution:

The username and email should be the same on FortiGate and Google:

config user saml

    set user-name "email"  <-- In the Google Attributes, it is called 'email'.

end
