Technical Tip: FSSO disconnection and user monitor timer behavior

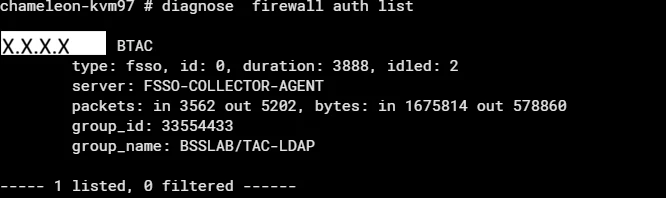

When users log in to the domain, the FortiGate initiates a user login timer. This timer can be viewed using the following command:

diagnose firewall auth list

In the event of an intermittent FSSO disconnection, FortiGate removes user authentication entries based on the configured user cache (logon) timeout. This timeout determines how long a user entry is retained when FSSO connectivity is lost.

The user cache timer can be configured using the following command:

config user fsso

    edit <server name>

        set logon-timeout  <in minutes> <-- 1 - 2880, default = 5.

  end

A scenario where user logins appear as 'logged in a few minutes ago', even though the user logged in much earlier, occurs because the login timers are refreshed after FSSO connectivity is restored.

If the logon-timeout is configured appropriately, FortiGate does not remove user entries until the timer expires. When the FSSO connection is re-established, FortiGate refreshes the timers rather than creating new entries. As a result, the login time may appear recent, even though the user session has been active for a longer period.
