Technical Tip: FSSO choose between DC Agent mode or Polling mode
Description
This article describes the two operational modes for Fortinet Single Sign On Collector Agent (FSSO-CA).
Scope
FSSO Collector Agent.
Solution

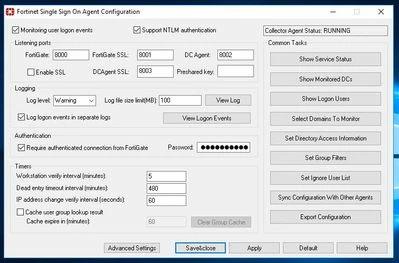

Fortinet Single Sign-On Collector Agent (FSSO-CA):
FSSO-CA is a software developed by Fortinet Inc. That fulfills the function of a collector agent for domain logon events; it can be installed on a DC or on any other server that belongs to the domain to work with.
FSSO-CA can work in two operation modes: 'DC Agent' or 'Polling'.
On the download page (Technical Tip: Downloading FSSO agent software), find the steps to install the DCAgent_Setup and FSSO_Setup files.
The 'DCAgent_Setup' is for installing the DC Agent on domain controllers, while the 'FSSO_Setup' is for installing the FSSO Collector Agent, which can work with or without the DC Agent.
DC Agent mode.
- In this mode, the Windows DC server collects its own login information and sends it to the collector agents.
- This is the recommended mode, especially in environments with a large number of users, due to its better scalability and performance.
- Requires one DC Agent (installed in C:\Windows\System32\dcagent.dll) on each Windows DC.
- The Windows DC Server must reboot after the DC Agent installation.

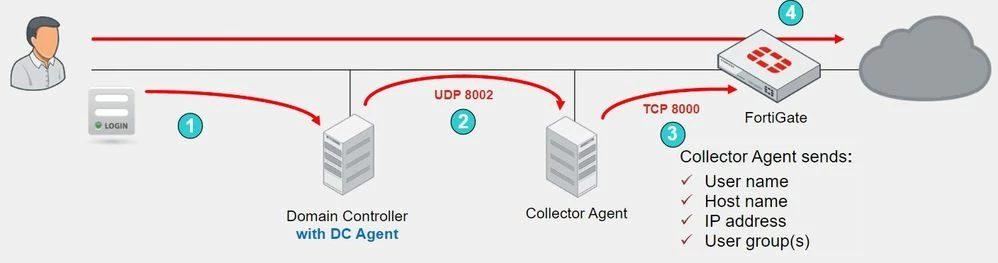

Workflow.
- The user authenticates against the Windows DC.
- The DC agent sees the login event and forwards it to the collector agent.
- The collector agent receives the event from the DC Agent and forwards it to FortiGate.
- FortiGate knows the user based on their IP address.

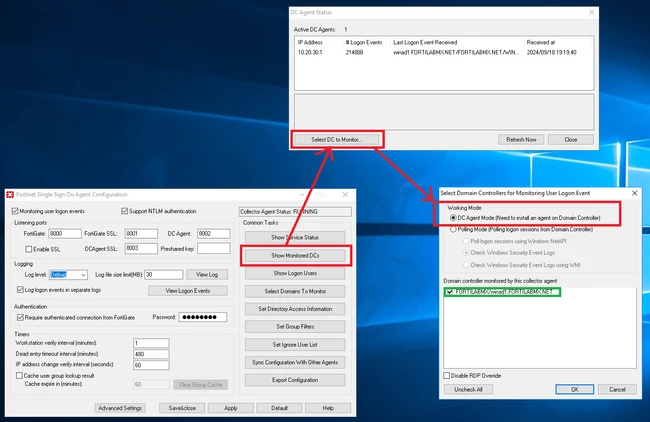

To select this work mode, open FSSO-CA as an administrator, select Show Monitored DCs -> Select DC to Monitor..., and select DC Agent Mode (This work mode may require a server reboot for the first time).
Polling Mode.
- In this mode, the collector agent 'polls' for logon events to each Windows DC.
- No DC_agent is required on the Domain Controller server.
- Every few seconds, the Collector Agent polls each DC for user login events. It requires ports: SMB (TCP/445) as main and [TCP/135, TCP/139, and UDP/137] as fallback.
- This mode requires a less complex installation.
- Polling mode can be configured in three ways:
| Polling Method | Main features | Some issues |
| NetAPI | Polls the NetSessionEnum function every 9 seconds or less. Retrieves login sessions, including DC login events. | Faster, but if DC has a heavy system load, some login events can be missed. |
| WinSecLog | Polls all security events on DC every 10 seconds or more Only parses known event IDs by the collector agent. (poller ID) | Log latency if the network is large or the system is slow. Requires fast network links. Some workstation names may be lost.
|
| WMI | DC returns all requested login events every 3 seconds. Improves WinSec bandwidth usage. | Some workstation names may be lost. |

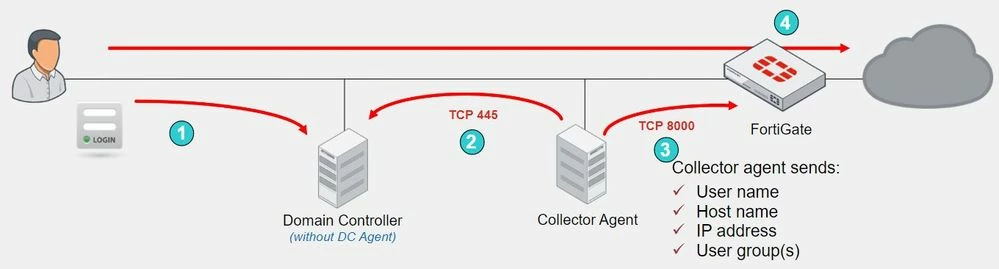

Workflow.
- The user authenticates with DC.
- The Collector Agent frequently polls the DC to collect user login events.
- The Collector Agent forwards logins to FortiGate.

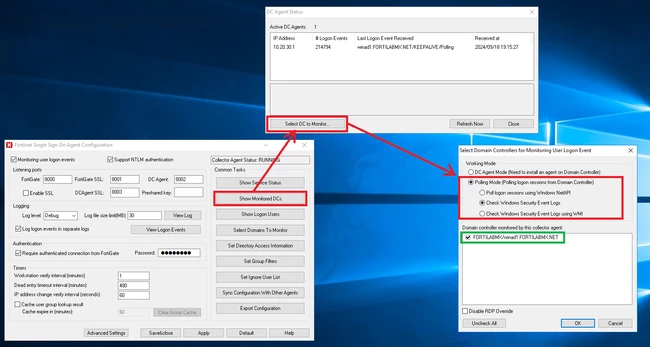

To select this work mode, open FSSO-CA as an administrator, select Show Monitored DCs -> Select DC to Monitor... and select Polling Mode.
 
