Technical Tip: Forward traffic to public IP using IPsec VPN Dial-up Wizard

In this example, remote users need to access a remote website that only allows FortiGate's public IP and a full-tunnel VPN is not a feasible option.

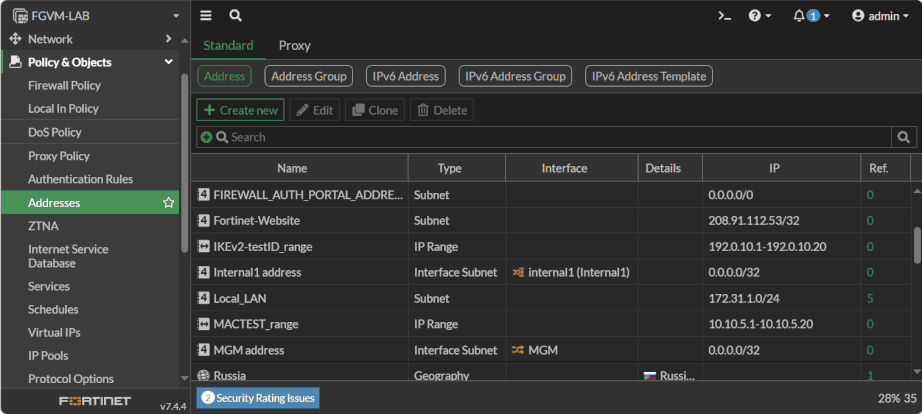

1. Create the Address Object type subnet for the destination IP:

Note:

The IPSec VPN does not support FQDN objects for split tunnels: Enable split-tunnel For IPsec VPN - Fortinet Community

2. Create IPSec VPN under VPN -> IPSec Wizard -> Remote Access -> Client-Based -> FortiClient:

• Select the incoming interface, and add preshared-key and user group.
• In the Local interface, select internal/LAN interface and wan interface.
• In the local address, add the LAN subnet object and the website address created in step1.

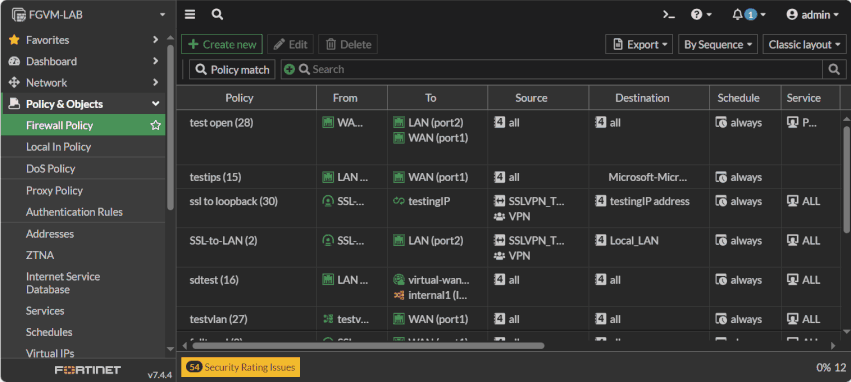

3. Go to Firewall policies and adjust the destination address.

• In the VPN to internal policy, remove the website address from the destination.
• In the VPN to wan policy, remove the LAN address from the destination.
