Technical Tip: FortiView Traffic Shaping 'No Results' for per-ip shaper

Under Dashboard -> Status the following widget, FortiView Traffic Shaping by bytes has been added, however there are no results.

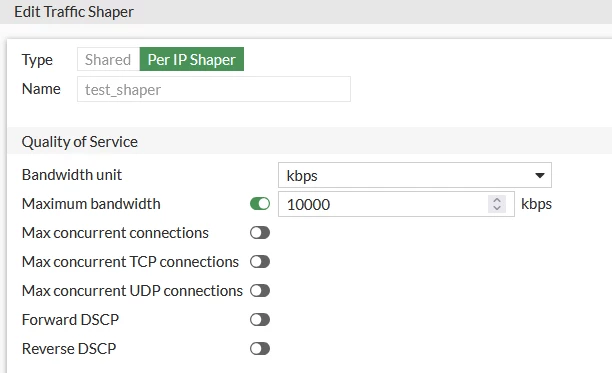

Navigate to Policy & Objects -> Traffic Shaping -> Traffic Shapers. In this example, the per-ip shaper, 'test_shaper' was created.

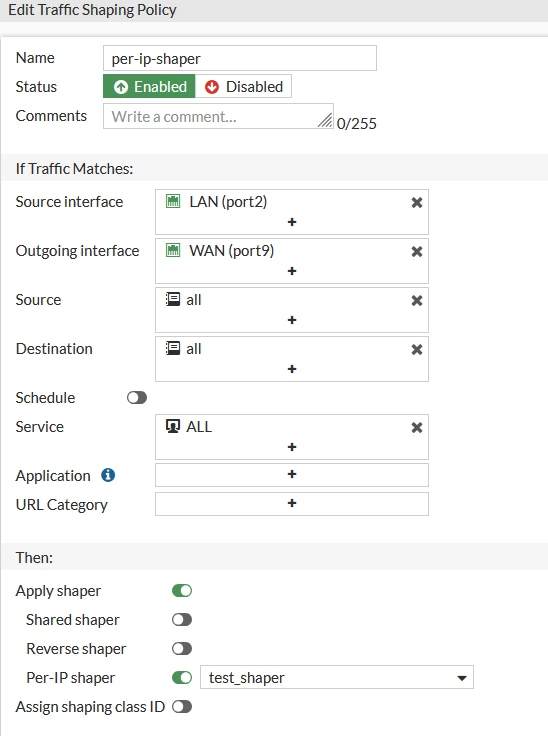

The per-ip shaper has been applied to the Traffic Shaping Policy:

In the Traffic Shapers, it is actively being used and applied to the LAN network, however, the FortiView Traffic Shaping dashboard widget still displays 'No results'.

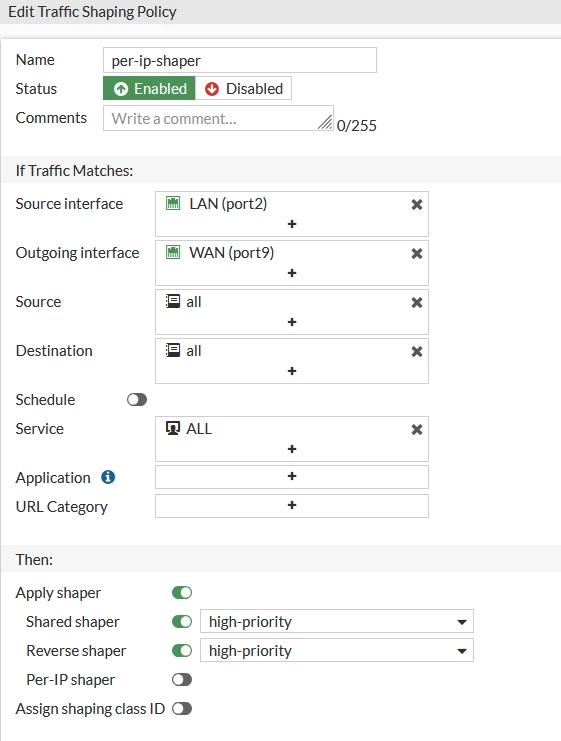

The FortiView Traffic Shaping widget by design only displays information for forward shapers (shared shapers). By changing the Traffic Shaping Policy to use a shared shaper, the widget now displays information about the shared shaper.

To find information about the per-ip shaper use the following commands in the CLI:

diagnose firewall shaper per-ip-shaper list

name test_shaper

maximum-bandwidth 1250 KB/sec

maximum-concurrent-session 0

maximum-concurrent-tcp-session 0

maximum-concurrent-udp-session 0

tos ff/ff

packets dropped 200487

bytes dropped 271172875

        addr=192.168.0.3 status: bps=7528576 ses=229 (tcp-ses=166 udp-ses=63)

diagnose sys session list | grep -A 15 <shapers_name>

diagnose sys session list | grep -A 15 test_shaper

per_ip_shaper=test_shaper

class_id=0 shaping_policy_id=1 ha_id=0 policy_dir=0 tunnel=/ vlan_cos=0/255

state=log may_dirty per_ip ndr f00 app_valid log-start

statistic(bytes/packets/allow_err): org=3858/18/1 reply=2160/19/1 tuples=3

tx speed(Bps/kbps): 58/0 rx speed(Bps/kbps): 32/0

orgin->sink: org pre->post, reply pre->post dev=4->11/11->4 gwy=10.9.15.254/0.0.0.0

hook=post dir=org act=snat 192.168.0.3:51920->34.160.236.64:443(10.9.10.119:51920)

hook=pre dir=reply act=dnat 34.160.236.64:443->10.9.10.119:51920(192.168.0.3:51920)

hook=post dir=reply act=noop 34.160.236.64:443->192.168.0.3:51920(0.0.0.0:0)

pos/(before,after) 0/(0,0), 0/(0,0)

src_mac=00:45:6e:64:71:02

misc=0 policy_id=1 pol_uuid_idx=15755 auth_info=0 chk_client_info=0 vd=0

serial=00165655 tos=ff/ff app_list=2000 app=40568 url_cat=0

rpdb_link_id=00000000 ngfwid=n/a

npu_state=0x001101 no_offload

no_ofld_reason:  disabled-by-policy redir-to-ips denied-by-nturbo
