Technical Tip: Fortiview categories are not available.
Description
This article explains that FortiView widgets have been rewritten in 6.2.0.
FortiView widgets category (Traffic From LAN/DMZ, Traffic from WAN) created in previous versions are deleted after the upgrade to 6.2.
Solution
This option has moved as optional widgets under dashboard widgets.
Go to Dashboard -> status -> Add widgets

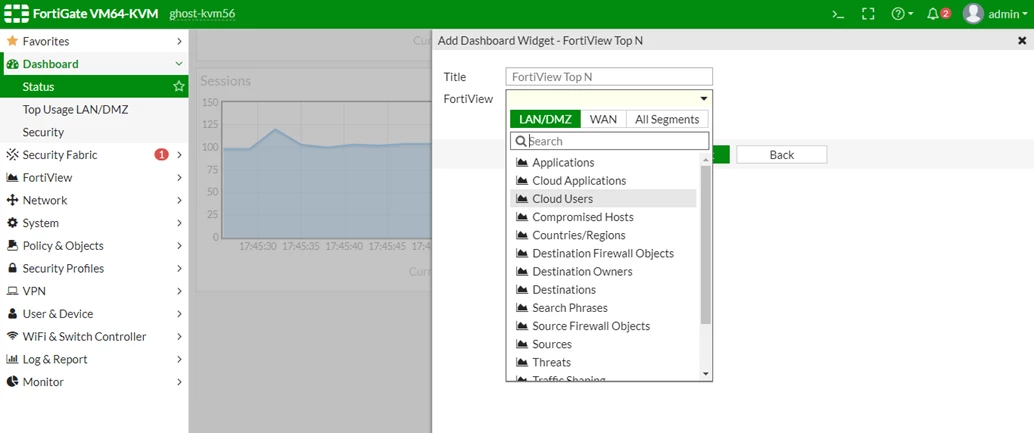

Select FortiView Top N and enter the name for the widget.
Under FortiView, select incoming interface and select the category to be monitored.
This article explains that FortiView widgets have been rewritten in 6.2.0.
FortiView widgets category (Traffic From LAN/DMZ, Traffic from WAN) created in previous versions are deleted after the upgrade to 6.2.
Solution
This option has moved as optional widgets under dashboard widgets.
Go to Dashboard -> status -> Add widgets
Select FortiView Top N and enter the name for the widget.
Under FortiView, select incoming interface and select the category to be monitored.
Select the Data Source, Time Period, Visualization and Sort By options as per requirement and click on add widget.

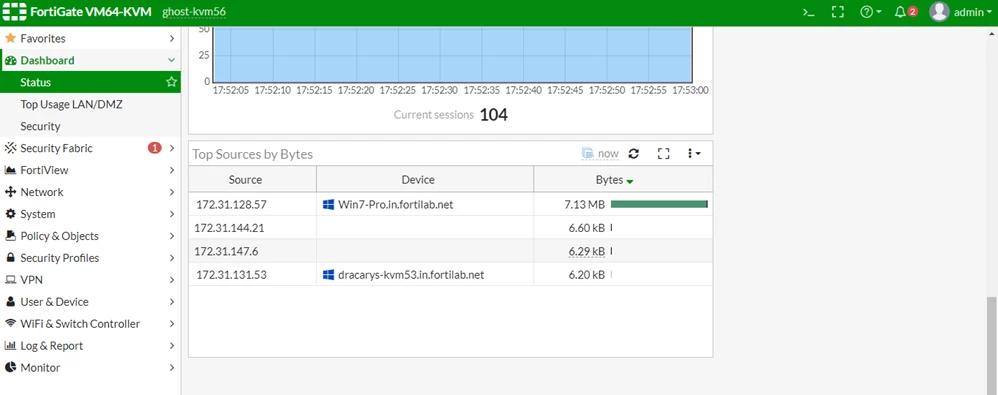

From the dashboard widget, it's possible to check the traffic.
From the dashboard widget, it's possible to check the traffic.
Three dashboards options are available by default: Status, Top Usage LAN/DMZ, and Security.
To monitor, view the user incoming traffic via LAN/DMZ interface, use Top Usage LAN/DMZ.
To monitor, view the user incoming traffic via LAN/DMZ interface, use Top Usage LAN/DMZ.
