Technical Tip: FortiGuard is not reachable via Anycast default method

  • November 13, 2020
  • 0 replies
  • 111112 views

Description


This article describes how to troubleshoot FortiGuard connectivity when the Anycast default method does not work.


Scope


FortiGate v6.4.3 and above.


Solution


By default, v6.4.3 and above uses the Anycast method to address the FortiGuard servers. Relying on Fortinet DNS servers, the FortiGate will get a single IP address for the domain name of each FortiGuard service.

In some circumstances, Anycast does not work:


This can be verified with the debug command in global VDOM 'diagnose debug rating':

diagnose debug rating
Locale       : english
Service      : Web-filter
Status       : Enable
License      : Contract
Service      : Antispam
Status       : Disable
Service      : Virus Outbreak Prevention
Status       : Disable
Num. of servers : 1
Protocol        : https
Port            : 443
Anycast         : Enable
Default servers : Included
-=- Server List (Tue Nov  3 17:47:32 2020) -=-
 IP                                             Weight    RTT Flags   TZ    Packets  Curr Lost Total Lost             Updated Time
173.243.140.16                                      0      0 DIF      0         14         11         11

The Flag 'DIF' is observed here, which stands for Failed i.e. Server is down or has failed to respond to the rating query.

If a high value of the current loss is noticed, run 'execute traceroute X.X.X.X' to see if the FortiGuard server can be reached (X.X.X.X is the failing IP of 'diagnose debug rating' as in the example above 173.243.140.16). However, this ICMP test can also fail just because the ICMP traffic is blocked between FortiGate and FortiGuard.

Another method to see if FortiGate can reach FortiGuard is to manually run an update and examine the debug output.
Run from the management VDOM.

diagnose debug disable
diagnose debug reset
diagnose console timestamp enable
diagnose debug app update -1
diagnose debug enable
execute update-now

Disable debug after around 5 to 10 minutes:

diagnose debug disable
diagnose debug reset

If the Server cannot be reached, choose between the following options to solve this issue:

  1. Switch to other Anycast servers:

config system fortiguard
    set fortiguard-anycast-source aws
end

  1. Disable Anycast and use HTTPS with port 8888.

config system fortiguard
    set fortiguard-anycast disable
    set protocol https
    set port 8888
    set sdns-server-ip 208.91.112.220 173.243.140.53 210.7.96.53
end



  1. Disable Anycast and use UDP with Port 53.

config system fortiguard
    set fortiguard-anycast disable
    set protocol udp
    set port 53

    set sdns-server-ip 208.91.112.220 173.243.140.53 210.7.96.53
end



  1. Disable Anycast and use UDP with Port 8888.


config system fortiguard
    set fortiguard-anycast disable
    set protocol udp
    set port 8888

 set sdns-server-ip 208.91.112.220 173.243.140.53 210.7.96.53
end

After:

    set fortiguard-anycast disable

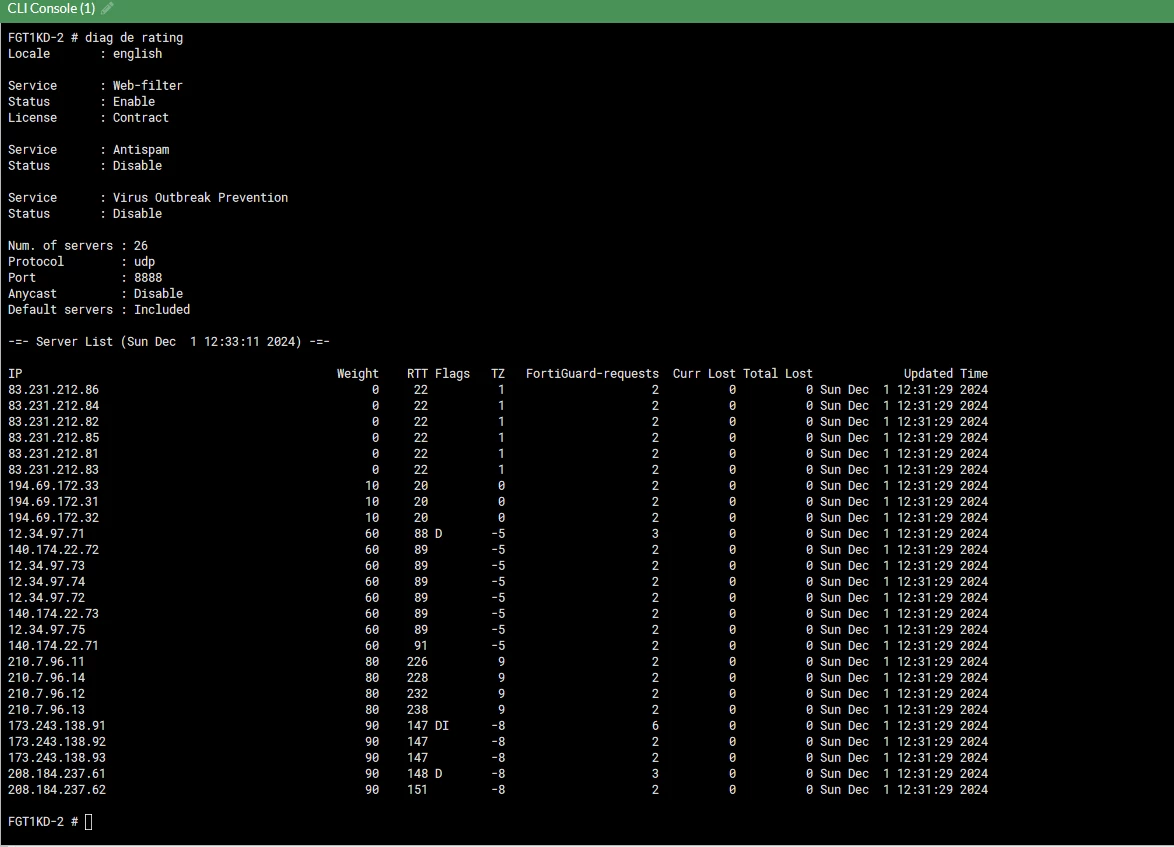

 This can be verified with the debug command 'diagnose debug rating', presenting multiple servers available:

After anyvast disable .png



Notes:



Related articles:

Troubleshooting Tip: Unable to connect to FortiGuard servers

Technical Tip: FortiGuard Overview and Troubleshooting
