Technical Tip: FortiGate to FortiClient dial-up VPN
| Description | This article describes how to configure a basic dial-up pre-shared key VPN between a FortiGate unit running FortiOS 7.6.5 and a computer running FortiClient version 7.4.4. This procedure assumes some familiarity with FortiGate and FortiClient features and web-based managers and experience configuring VPNs. |
| Scope | FortiGate and FortiClient. |
| Solution |
PC in which FortiClient is installed <-----> FortiGate.
Configure the VPN settings in the FortiClient, Phase 1, and Phase 2 of the VPN, as shown in Figures 1 and 2.

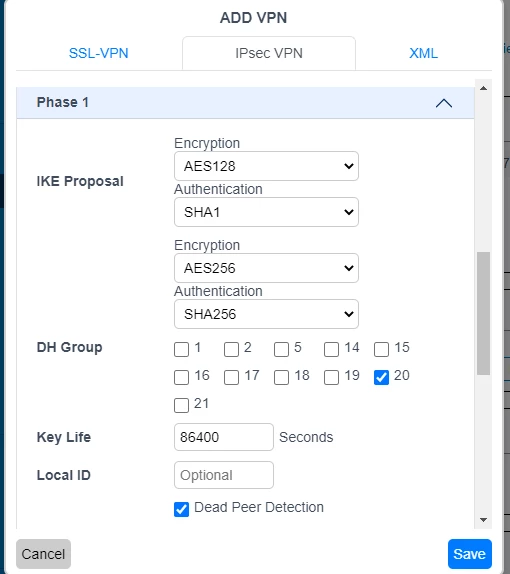

Figure 1: Phase 1 configuration:

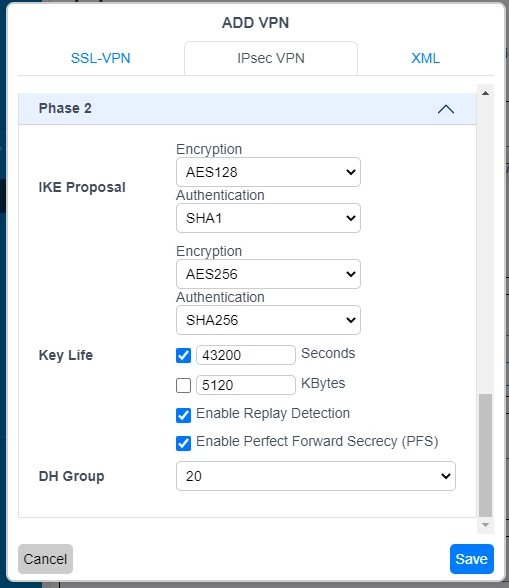

Figure 2: Phase 2 configuration:
For FortiGate, refer to Technical Tip: A guide to dial-up IPSec VPN authentication and policy matching. |
Topology:
