Technical Tip: FortiGate is not visible on FortiAnalyzer threat map
Description
This article describes how to make FortiGate visible in Threat map FortiAnalyzer.
Solution

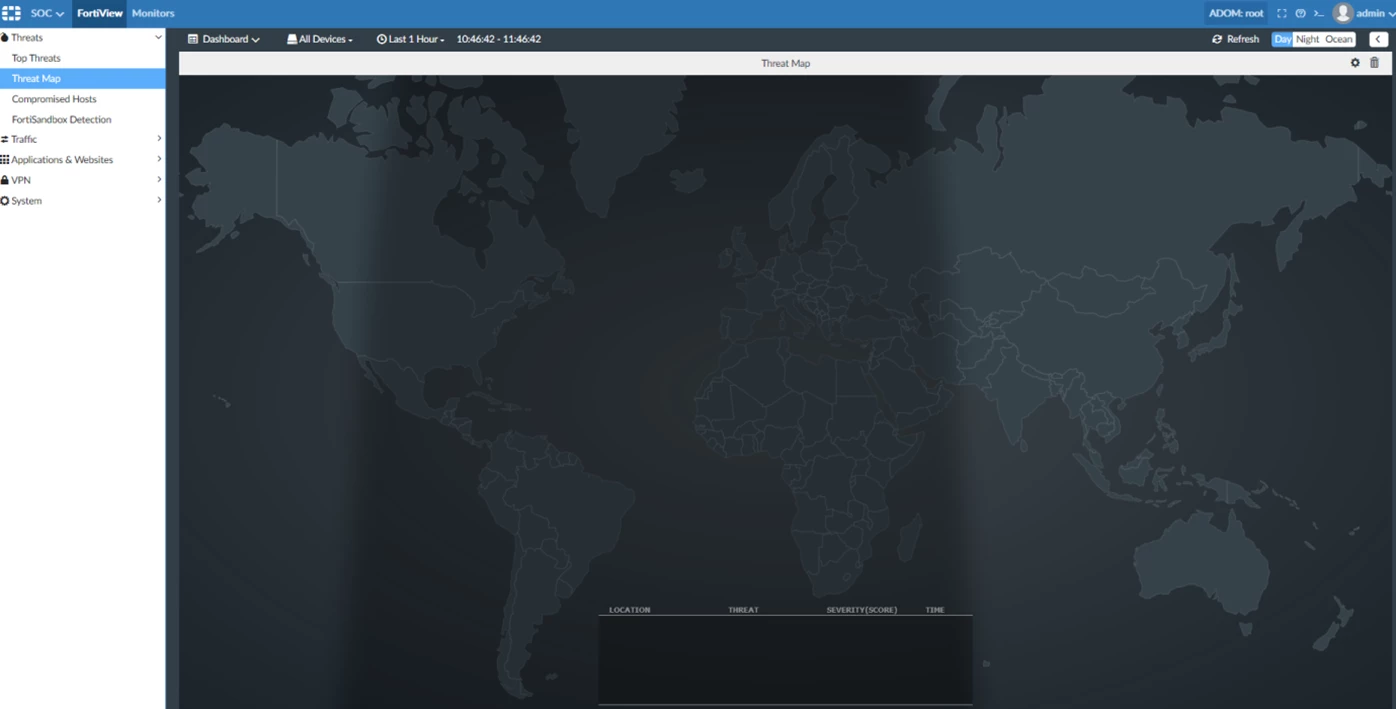

Under ADOM, Go to SOC -> Threat Map
This article describes how to make FortiGate visible in Threat map FortiAnalyzer.
Solution
Under ADOM, Go to SOC -> Threat Map
To display FortiGates on threat map, it is require to define Geographic Coordinate both Latitude and Longitude of the device location in FortiAnalyzer:
Go to Device Manager Tab -> Edit the device
Go to Device Manager Tab -> Edit the device

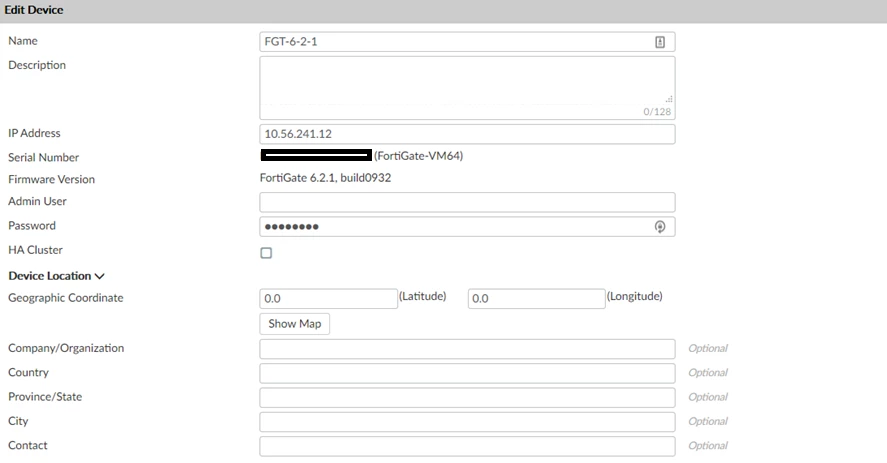

Enter latitude and longitude under device location:
Default values are 0.0
Default values are 0.0

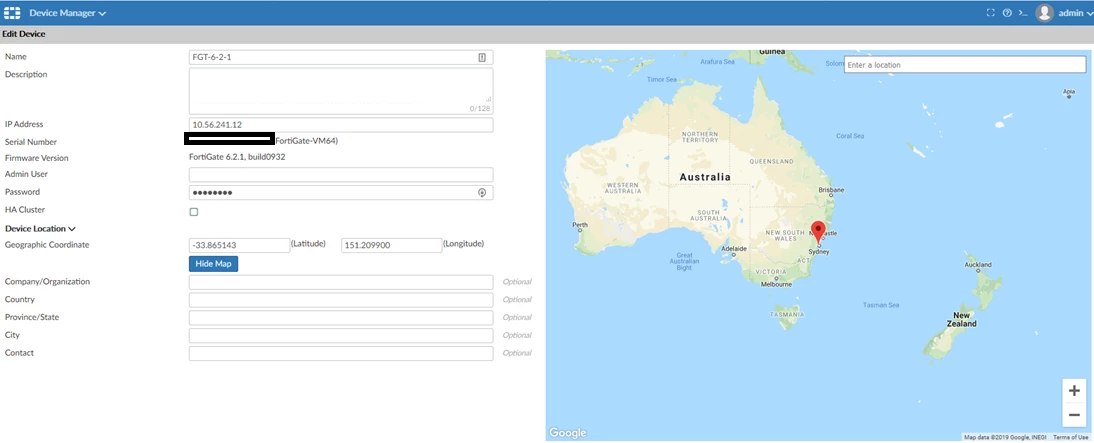

Set latitude and longitude location for the FortiGate (Sydney for example):

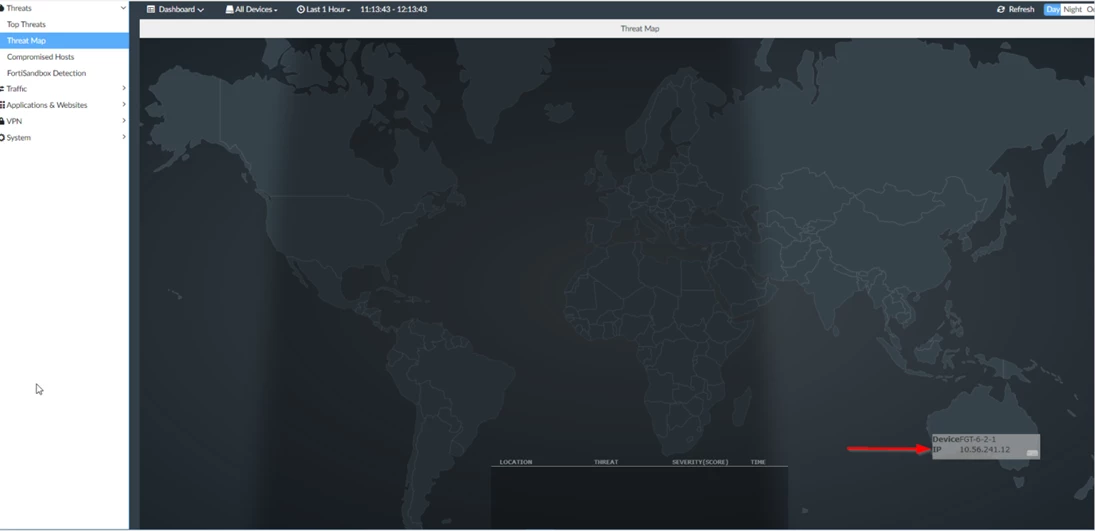

The location is now visible under Threat Map:

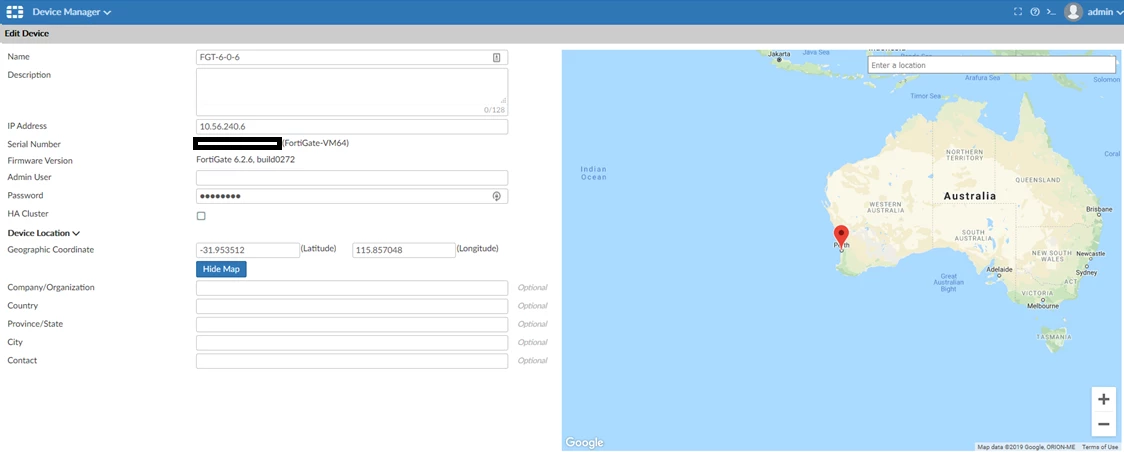

Set another FortiGate location (Perth for example):

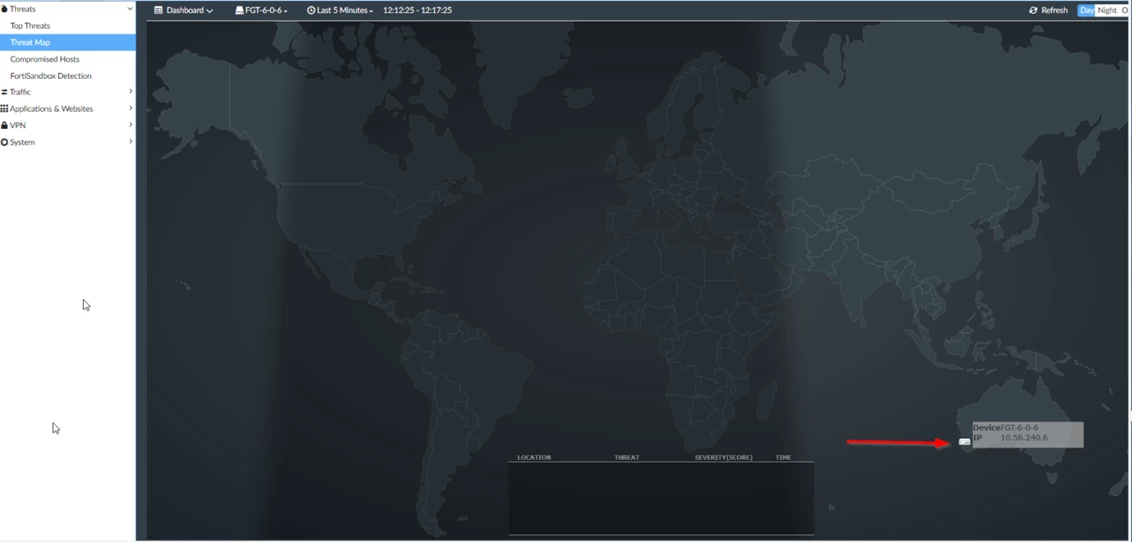

Now both FortiGates location are visible under Threat Map (must be in desired ADOM):
