Technical Tip: Firewall Policies displaying as Proxy-Based in FortiGate GUI after Firmware upgrade to v7.4.4/v7.6.0 on 2 GB RAM Devices

  • January 15, 2025
  • 0 replies
  • 449 views
Description

This article explains an issue where firewall policies on FortiGates with 2 GB RAM continue to display Proxy-Based Inspection mode in the GUI after upgrading to firmware v7.4.4 or v7.6.0, though FortiOS no longer supports proxy-related features on FortiGates with 2 GB RAM or less starting from v7.4.4.
Scope FortiGates with 2GB RAM v7.4.4, v7.6.0.
Solution

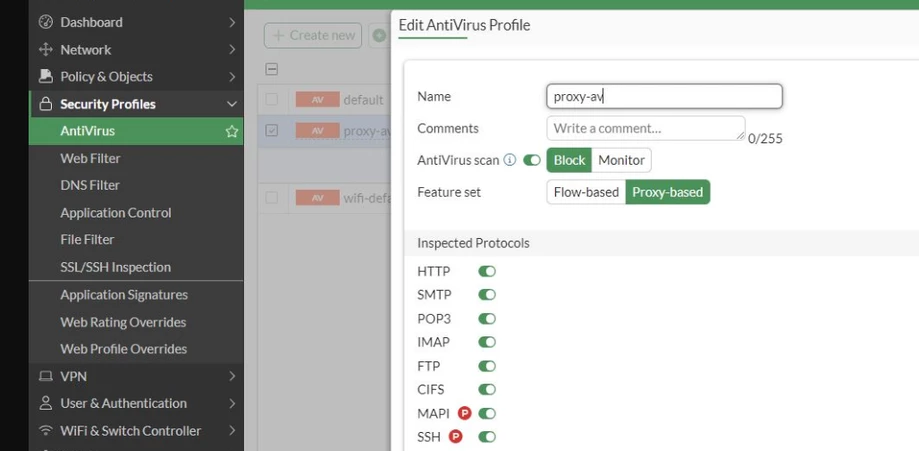

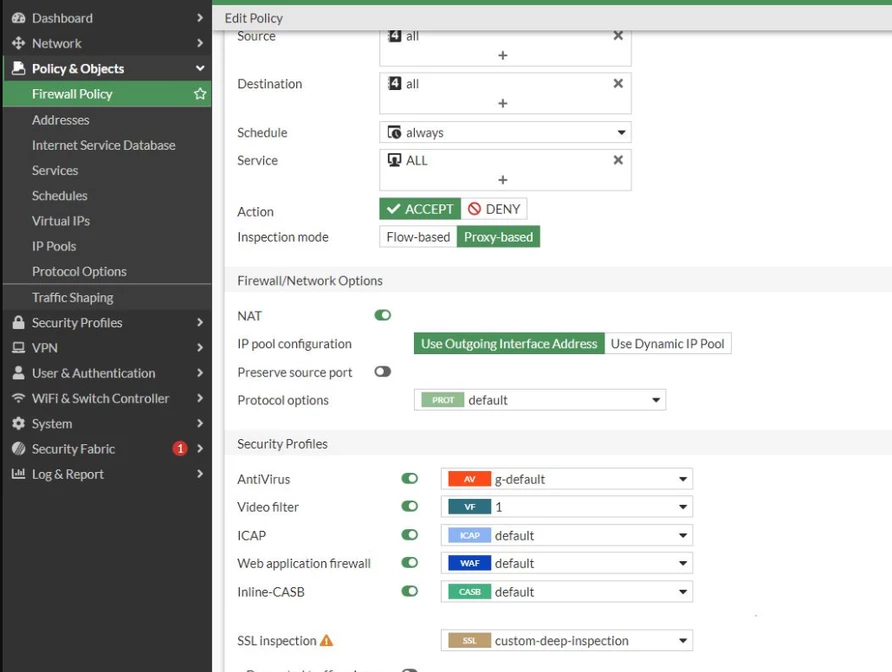

After the firmware upgrade of the FortiGates with 2 GB RAM from v7.4.3 to v7.4.4 or v7.6.0, firewall policies configured with Proxy-Based Inspection mode and associated security profiles still appear as proxy-based in the GUI.



However, the CLI does not display the proxy-inspection mode.








This issue has been resolved in FortiOS version 7.6.3.



General debug information required by FortiGate TAC for investigation:

  1. TAC Report:



execute tac report



  1. Configuration file of the FortiGate.
  2. Fortinet Support Tool data: Troubleshooting Tip: Collect GUI slowness and errors debugs via Fortinet Support Tool.
