Technical Tip: Files failed to upload to FortiSandbox/ FortiSandbox

Description

When files are sent to FortiSandbox Cloud, it is possible to get submission failures:

Example.

date=2020-06-03 time=09:05:34 idseq=5567260827583117 bid=8370948 dvid=1030 itime="2020-06-03 09:05:34" euid=3 epid=9150 dsteuid=0 dstepid=101 logver=60 logid=0201009238 type="utm" subtype="virus" level="notice" action="monitored" service="HTTP" srcip=1.2.3.4 dstip=2.3.4.5 srcport=53657 dstport=80 filename="XXX_2b92f11a5bc2266b2cdaba9216cf35e65b4da2c6.exe" dtype="fortisandbox" eventtype="analytics" analyticscksum="03d9082a1128f97441d925d6b95033721d9d0f1a0ed4c446f9a31103abe51442" fsaverdict="submission failed"

This article describes how to fix failure.

Solution

Run the following commands to make sure that FortiGate is successfully communicating with FortiCloud.

# diagnose test application forticldd 1
System=FGT Platform=FGT60E
Management vdom: root, id=0,  ha=master.
acct_id=support@fortinet.com
acct_st=OK                                 <-----

FortiGuard interface selection:

method=auto specify=FortiGuard log: status=enabled, full=overwrite, ssl_opt=1, source-ip=0.0.0.0

# diagnose test application forticldd 3
Debug zone info:
    Domain: EUROPE
    Home log server: 62.209.37.73:514
    Alt log server: 81.201.101.251:514
    Active Server IP:      62.209.37.73
    Active Server status:  up
    Log quota:      3145728MB
    Log used:       5830MB
    Daily volume:   20480MB
    fams archive pause: 0
    APTContract : 1
    APT server: 154.45.1.51:514
    APT Altserver: 154.45.1.52:514
    Active APTServer IP:      154.45.1.51
    Active APTServer status:  up              <-----

1) Enable the below command to send only suspicious files instead of all files.

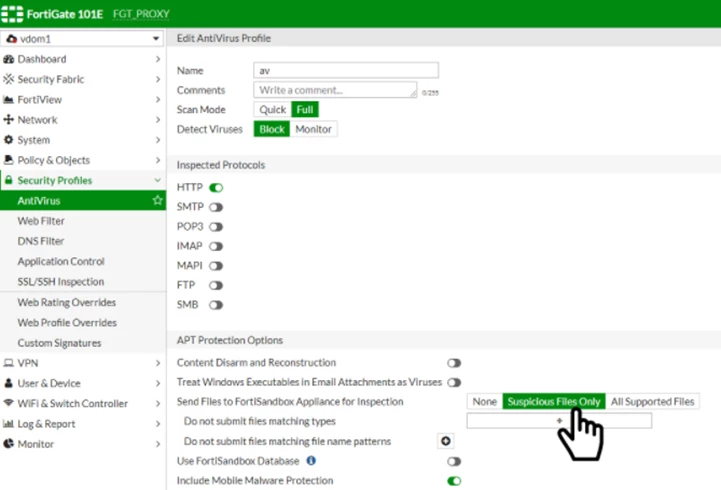

Go to Security Profiles -> AntiVirus.
Under Send files to FortiSandbox select 'Suspicious Files Only'.
