Technical Tip: Fabric Management page on HA Secondary lists both HA units, Primary lists only the primary unit
| Description | This article describes the HA member's visibility discrepancy on the Fabric Management page. |
| Scope | FortiGate. |
| Solution | The Fabric Management page allows administrators to manage the firmware running on each FortiGate. More details on Fabric Management can be in the Administration Guide On HA devices running v7.0.x, v7.2.x or v7.4.x, Fabric Management page on HA Secondary lists both HA units, and Primary lists only the primary unit. This is an expected behavior.

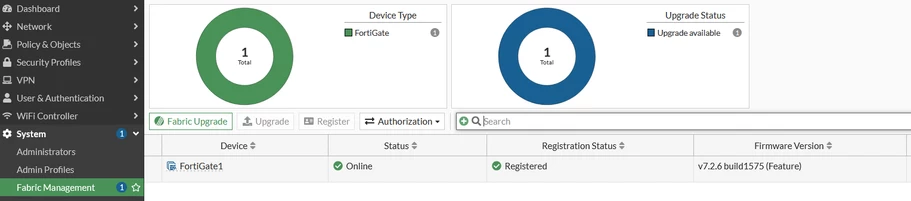

From Primary:

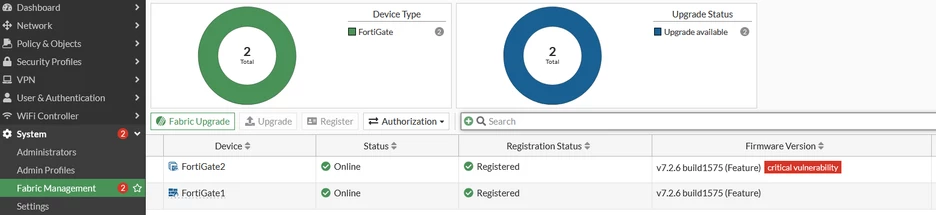

From Secondary:
Starting from v7.6.0 the design has been updated and the Fabric Management page on the Primary and Secondary unit lists all the cluster members. |
