Technical Tip: Extracting SSL Server certificate from PCAP file

Notes:

1. The PCAP file must include the 'packet data'. Crosscheck the 'verbose' filter option when capturing the SSL handshake connection so that it includes the 'packet data'. In this example, verbose 6 is used.
2. TLS 1.3 is not supported because it is by designed that TLS 1.3 will encrypt the server certificate. For more information, you can refer to the following link: TLS 1.3: An Overview of Benefits and Risks.
3. The sample website used here will be 'https://badssl.com/'.
4. Make sure Wireshark software is installed.

The following are the steps to extract the SSL server certificate from a PCAP file:

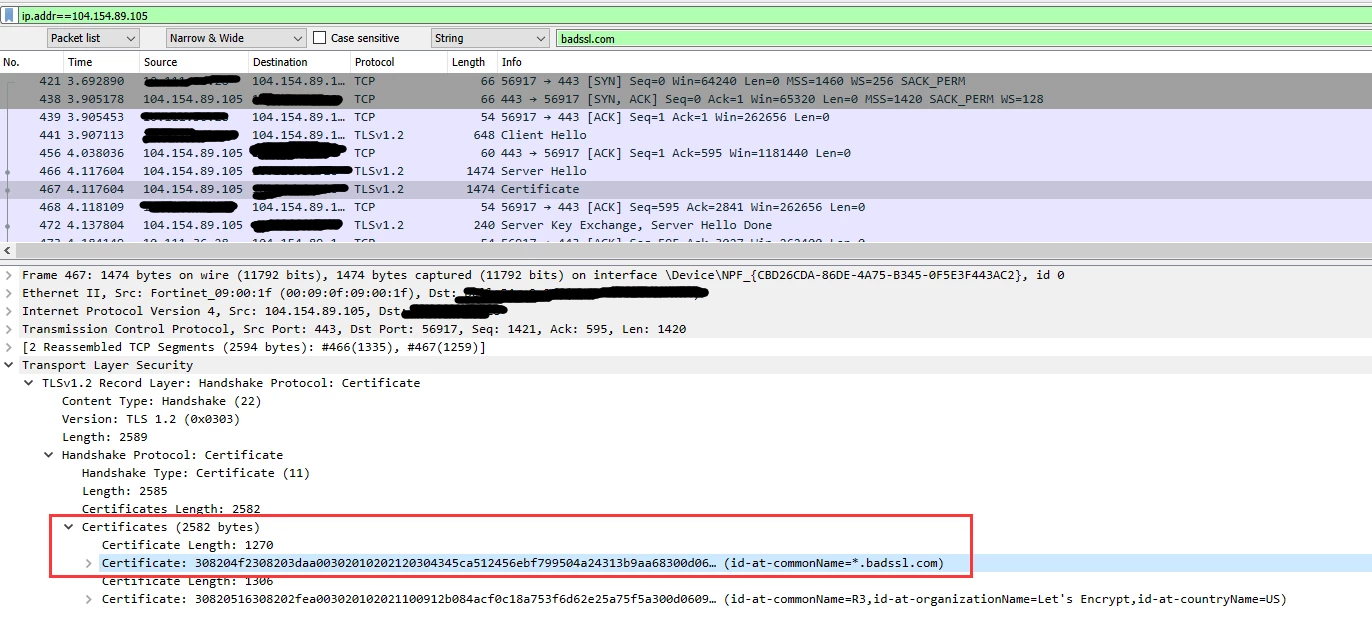

1. Locate the 'Server Hello' or the data packet which has the 'certificate'.

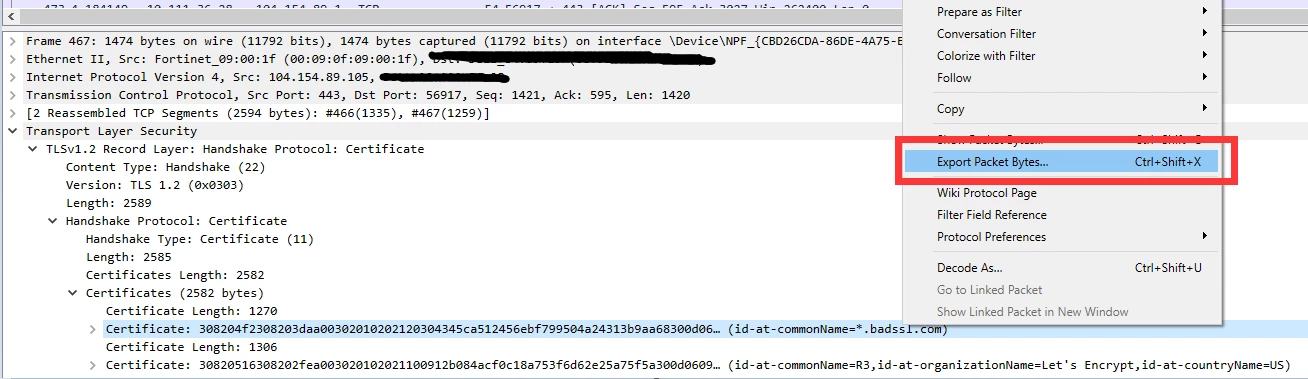

2. 'Right-click' and select 'Export packet bytes'.









3. Select type as 'All Files' and rename as 'YourCertName.der'.





    

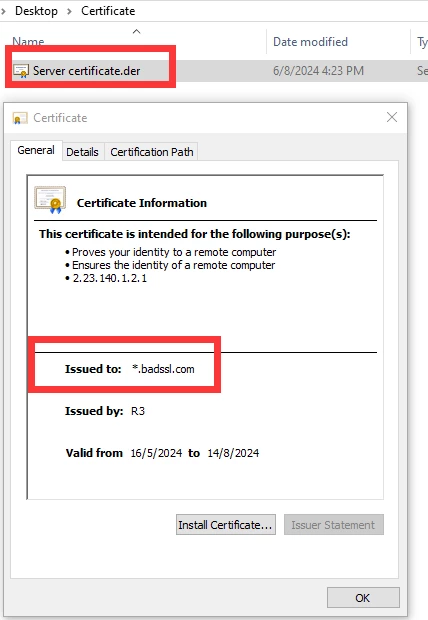

4. Once it is successful, just open the .der file to check.
