Technical Tip: Export physical or logical topology to PDF

If it is necessary to export a topology (logical or physical) diagram to PDF, use the tool 'GoFullPage'.

'GoFullPage' is a Chrome extension that can be obtained from its Chrome Web Store page.

To export Topology to PDF:

1. In the FortiGate GUI, go to Security Fabric -> Physical Topology or Logical Topology.
2. Open 'GoFullPage' from the Extensions list in the Chrome browser.

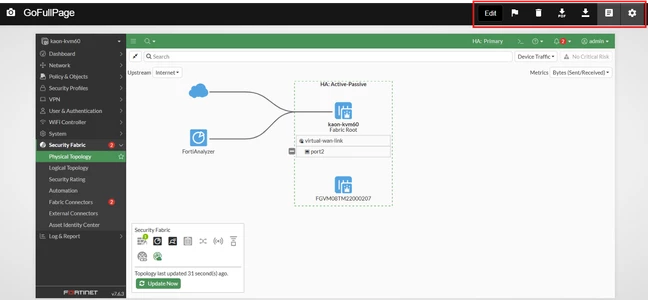

3. Select the PDF option to export the displayed Topology page to PDF.

The steps above can also be used to export the Switch Topology from WiFi & Switch Controller -> Managed FortiSwitches. To do this, change the view to Topology.
