Technical Tip: Error on GUI 'Could not connect to the FortiManager to retrieve its serial number'

The following error is observed on the FortiGate, even though FortiManager is not used.

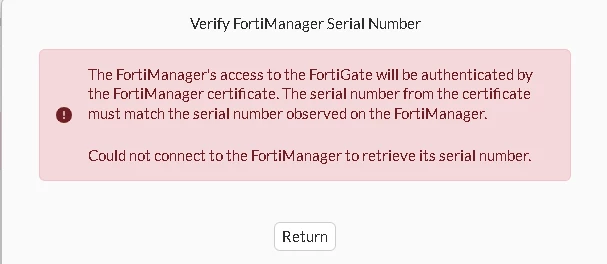

Message:

Verify FortiManager Serial Number
The FortiManager's access to the FortiGate will be authenticated by the FortiManager certificate. The serial number from the certificate must match the serial number observed on the FortiManager.
Could not connect to the FortiManager to retrieve its serial number

This happens because the central management was set to type FortiManager.

Galileo-kvm15 (central-management) # show full
config system central-management
    set mode normal
    set type fortimanager
    set schedule-config-restore enable
    set schedule-script-restore enable
    set allow-push-configuration enable
    set allow-push-firmware enable
    set allow-remote-firmware-upgrade enable
    set allow-monitor enable
    unset serial-number
    set fmg "sid.fortiddns.com"
    set fmg-source-ip 0.0.0.0
    set fmg-source-ip6 ::
    set local-cert ''
    unset ca-cert
    set vdom "root"
    set fmg-update-port 8890
    set fmg-update-http-header disable
    set include-default-servers enable
    set enc-algorithm high
    set interface-select-method auto
    set vrf-select 0
end

To resolve the issue, change the type to FortiGuard if FortiManager is not being used.

Galileo-kvm15 (central-management) # show full
config system central-management
    set mode normal
    set type fortiguard

    set schedule-config-restore enable
    set schedule-script-restore enable
    set allow-push-configuration enable
    set allow-push-firmware enable
    set allow-remote-firmware-upgrade enable
    set allow-monitor enable
    set local-cert ''
    set vdom "root"
    set fmg-update-port 8890
    set fmg-update-http-header disable
    set enc-algorithm high
end

If the error persists, enable fgfm-peercert-withoutsn in the Global Settings on FortiManager, then configure the FortiManager serial number on the FortiGate under the Central Management configuration.

FortiManager:

config system global

    set fgfm-peercert-withoutsn enable

end

FortiGate:

config system central-management
    set type fortimanager

    set serial-number <Serial Number>

end

Notes:

• The command 'fgfm-peercert-withoutsn' has been removed from FortiManager v7.2.10/v7.4.6/v7.6.2. As a result, it is now a hard requirement for the FortiGate to present the local serial number inside the CN= field of the certificate it is presenting to the FortiManager. For more details, see the related articles below.
• If FortiManager is being used, ensure connectivity and confirm that port 541 is reachable between the FortiGate and the FortiManager, as port 541 is the default used by the FGFM protocol for communication between these devices. Run below CLI commands in FortiGate to check the connectivity status.

diagnose sniffer packet any "host X.X.X.X" 4 0 l

Run commands below in another CLI window:

execute ping X.X.X.X
execute telnet X.X.X.X 541

X.X.X.X is the IP of FortiManager.

• Verify the 'fgfm-allow-vm' setting under FortiManager:

config sys global

    set fgfm-allow-vm disable

end

• The setting 'fgfm-allow-vm' is used in FortiManager to control the connection of VM platforms. This setting is configured under Global Settings in FortiManager and determines if VM devices are permitted to register and communicate with FortiManager.

• Starting from FortiManager v7.4.7 and v7.6.3, this setting is disabled by default. The administrator must enable this setting to integrate VM devices. (Note: this command will restart the FGFM daemon on FortiManager, causing a short re-establishment of connections with all devices on the FortiManager.)

config system global

    set fgfm-allow-vm enable

end

VM Platforms affected:

• FortiGate-VM.
• FortiAnalyzer-VM
• FortiCarrier-VM.
• FortiProxy-VM.
• FortiFirewall-VM.

• Once the virtual machine has been successfully added, this option can be disabled again (Existing managed virtual machine FortiGate will not be affected if this option is disabled).
