Technical Tip: Error 'Duplicate Entry Found' When Configuring Backup IPSec VPN Tunnel with Existing Tunnel’s Remote Gateway Address.

  • February 17, 2025
  • 0 replies
  • 1333 views
Description

This article provides a workaround and solution for the error 'Duplicate Entry Found' which is encountered while configuring a backup IPSec VPN tunnel using the 'Custom IPSec Tunnel' option to an existing tunnel’s remote gateway address.
Scope

FortiGate v7.6.0.
Solution

When configuring a redundant IPSec tunnel to an existing tunnel’s remote gateway IP using the 'Custom IPSec Tunnel' option, the error 'Duplicate Entry Found' may appear.

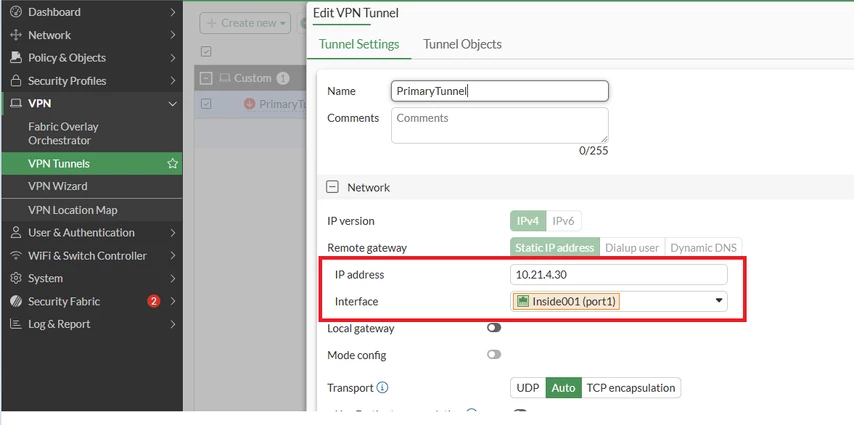

Primary Tunnel:

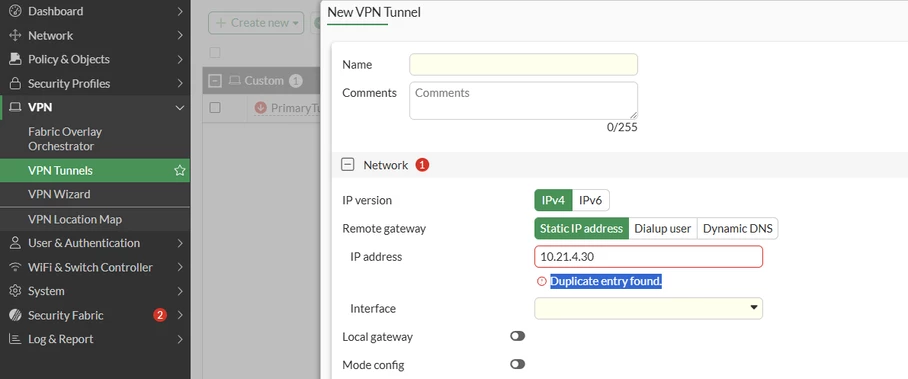

Secondary Tunnel:

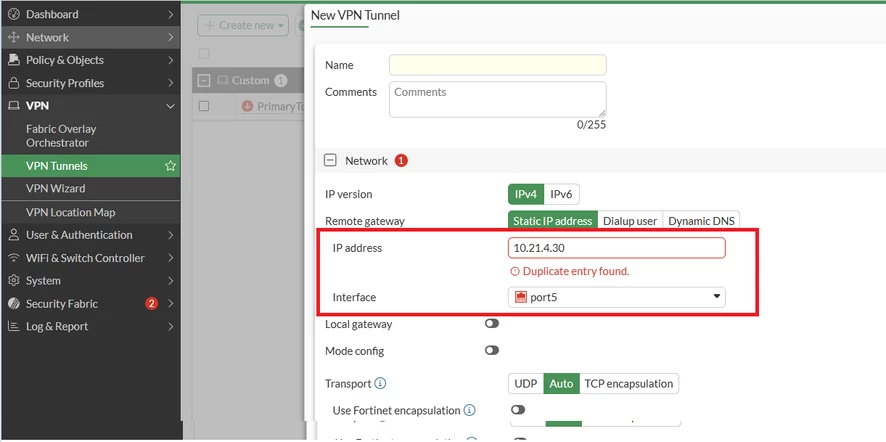

This occurs even when using a different WAN interface than the one assigned to the primary tunnel.






This issue has been resolved in v7.6.1.



Workaround:

Use the option 'IPsec tunnel from template' when creating a backup tunnel.



OR



use the CLI commands.



General debug information required by FortiGate TAC for investigation:

  1. TAC Report: 'execute tac report'.
  2. Configuration file of the FortiGate.
  3. Fortinet Support Tool data: Troubleshooting Tip: Collect GUI slowness and errors debugs via Fortinet Support Tool
