Technical Tip: Enabling Object Colors for the Web GUI
Description
This article describes that Objects such as Virtual IPs, Addresses, Services, and Schedules can be assigned colors for organizational purposes. If it is required to be able to change the color for objects via the Web GUI, this feature must first be enabled via the CLI.
Scope
FortiGate.
Solution

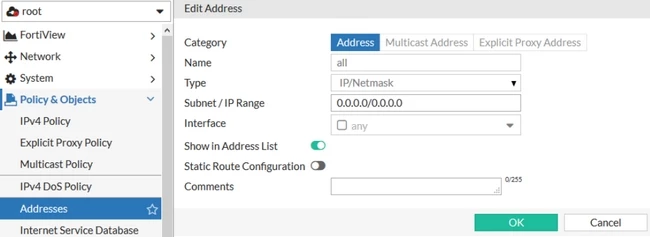

The object before enabling the feature:
CLI commands:
CLI commands:
config vdom <----- This must be run first if VDOMs are configured.
edit <vdom.name> <----- This must be run first if VDOMs are configured.
config system setting
set gui-object-colors enable
end
edit <vdom.name> <----- This must be run first if VDOMs are configured.
config system setting
set gui-object-colors enable
end

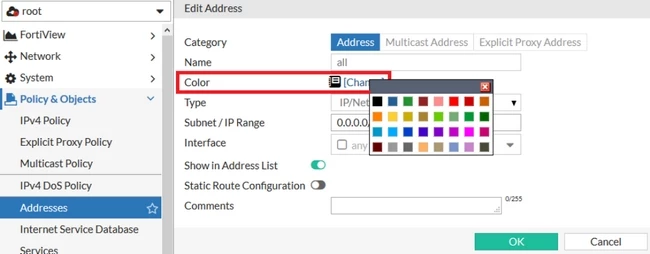

Object after enabling the feature:
To configure the address object through CLI, execute the below commands.
config firewall address
edit "address name"
set color 0-32
next
end

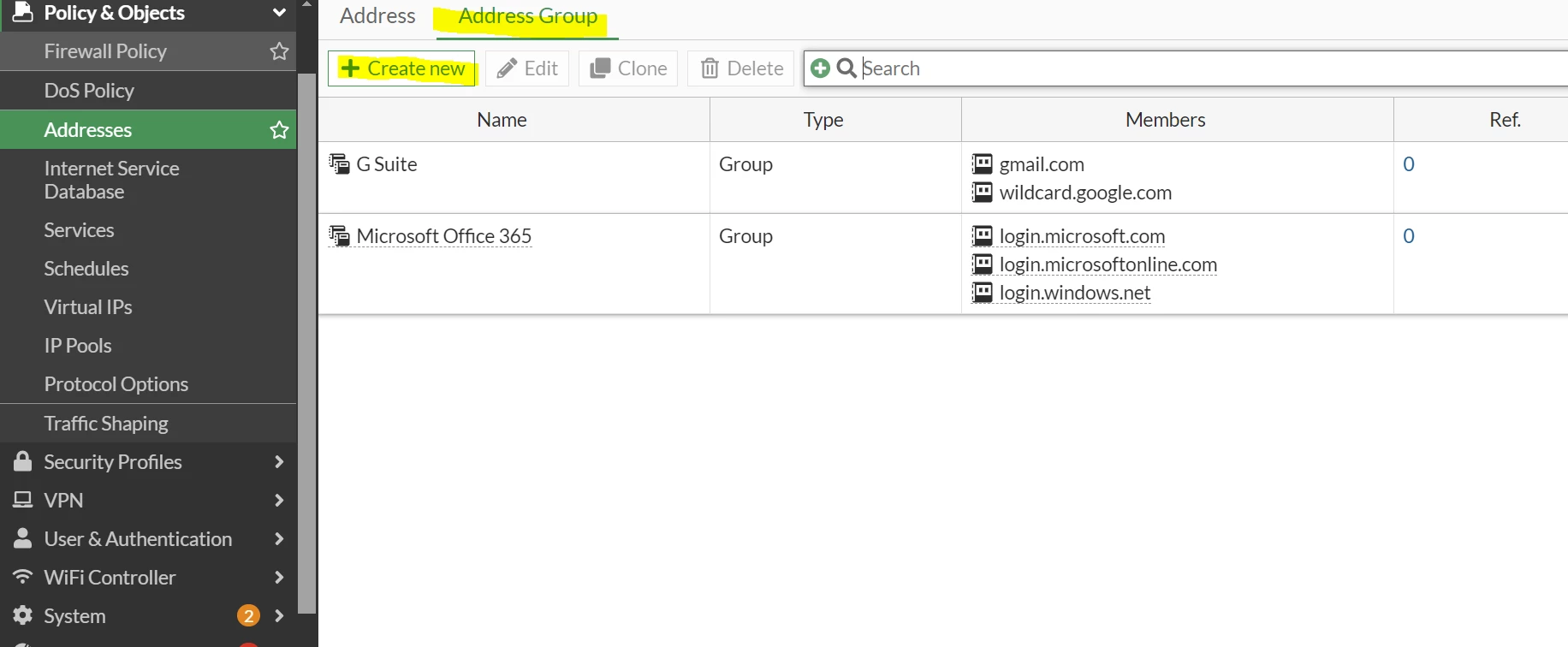

To create an address group with color, Navigate to policy & objects, select address group, and select create new

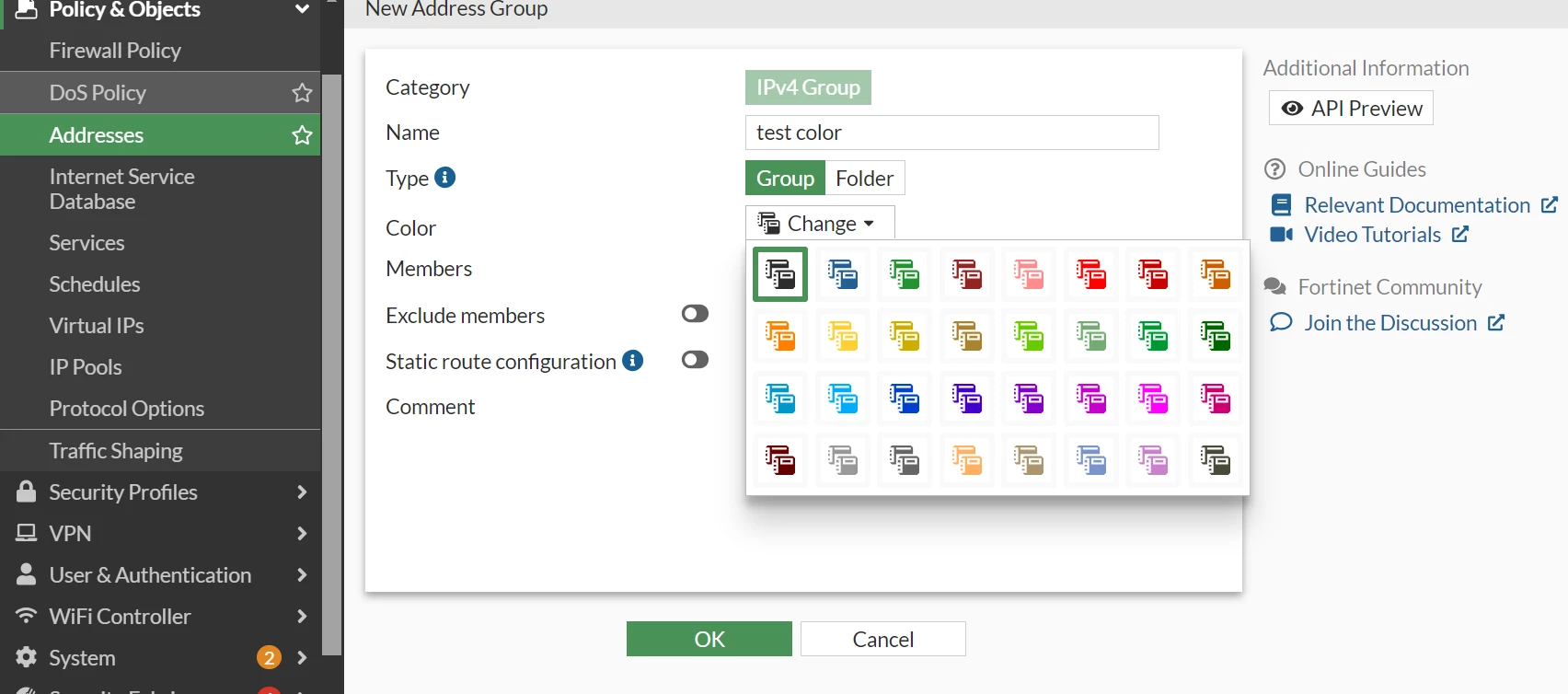

In the address group, there will have the option to configure with color:
To configure the address group through CLI, execute the below commands.
config firewall addrgrp
edit "group name"
set color 0-32
next
end
The complete list of Colors is here below with their RGB codes:
- 0,RGB #2D2D2D,black-100.
- 1,RGB #2D2D2D,black-100.
- 2,RGB #2196F3,blue-500.
- 3,RGB #4CAF50,emerald-500.
- 4,RGB #E57373,red-300.
- 5,RGB #EF9A9A,red-200.
- 6,RGB #FF5722,tomato-500.
- 7,RGB #F4511E,tomato-600.
- 8,RGB #F4511E,orange-800.
- 9,RGB #F57F17,yellow-900.
- 10,RGB #FFCA28,amber-400
- 11,RGB #FFB300,amber-600.
- 12,RGB #388E3C,emerald-700
- 13,RGB #7CB342,green-600.
- 14,RGB #81C784,emerald-300.
- 15,RGB #43A047,emerald-600.
- 16,RGB #689F38,green-700.
- 17,RGB #039BE5,sky-600.
- 18,RGB #03A9F4,sky-500.
- 19,RGB #2196F3,blue-500.
- 20,RGB #7986CB,indigo-300.
- 21,RGB #B39DDB,violet-200.
- 22,RGB #CE93D8,purple-200.
- 23,RGB #F48FB1,pink-200.
- 24,RGB #F06292,pink-300.
- 25,RGB #FE615C,red-400.
- 26,RGB #BDBDBD,gray-400.
- 27,RGB #949494,gray-500.
- 28,RGB #FFA726,orange-400.
- 29,RGB #9E9D24,lime-800.
- 30,RGB #9FA8DA,indigo-200.
- 31,RGB #E1BEE7,purple-100.
- 32,RGB #A1887F,brown-300.
