Technical Tip: Enable 'Policy-Based IPsec VPN' configuration

  • July 5, 2021
  • 0 replies
  • 36402 views

Description



This article describes how to enable 'Policy-Based IPsec VPN' configuration from GUI and CLI.



Scope



FortiGate.

Solution



By default, 'Policy-Based IPsec VPN' configuration is disabled in the GUI.

Refer to the following:
Go to VPN -> IPsec Tunnels, select 'Create new' and 'Custom'.


To enable the 'Policy-Based IPsec VPN':

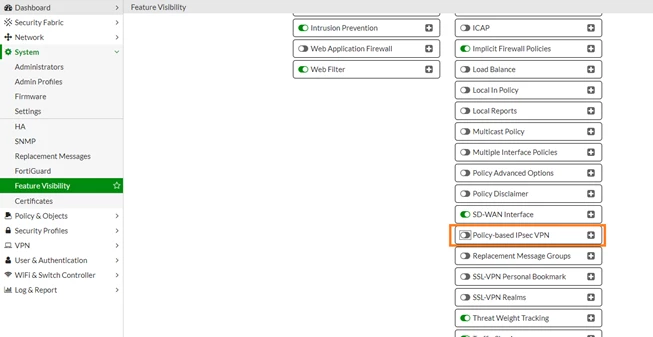

Go to System -> Feature Visibility, enable 'Policy-based IPsec VPN', and select 'Apply'.

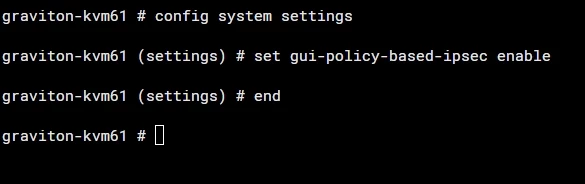

To enable the 'Policy-Based IPsec VPN' from the CLI use the following commands:


config system settings

set gui-policy-based-ipsec enable

end






Once applied, go to VPN -> IPsec Tunnels, select 'Create new', 'Custom', and unselect 'Enable IPsec Interface Mode'.

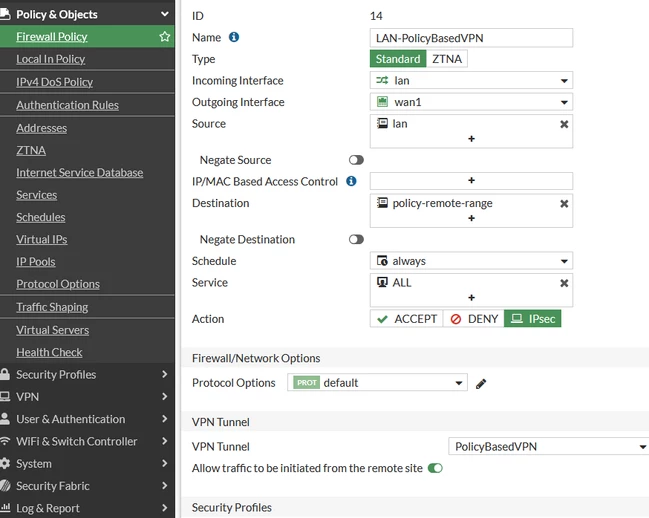

Create a Policy from the LAN interface to the remote lan subnet of the Policy-based VPN using the external interface as the outgoing interface. The IPsec Action in the policy allows the tunnel to be selected.
