Technical Tip: Email notification when an anomaly is detected

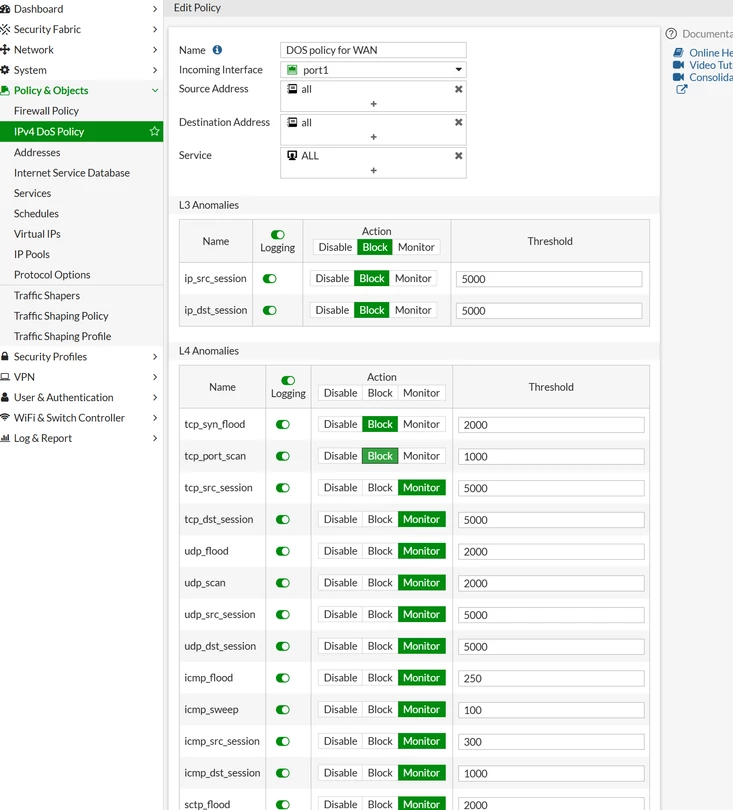

1. Make sure a DOS policy is in place and logging is enabled.


   Refer to this article: Technical Tip: How to configure IPv4 DOS policy.

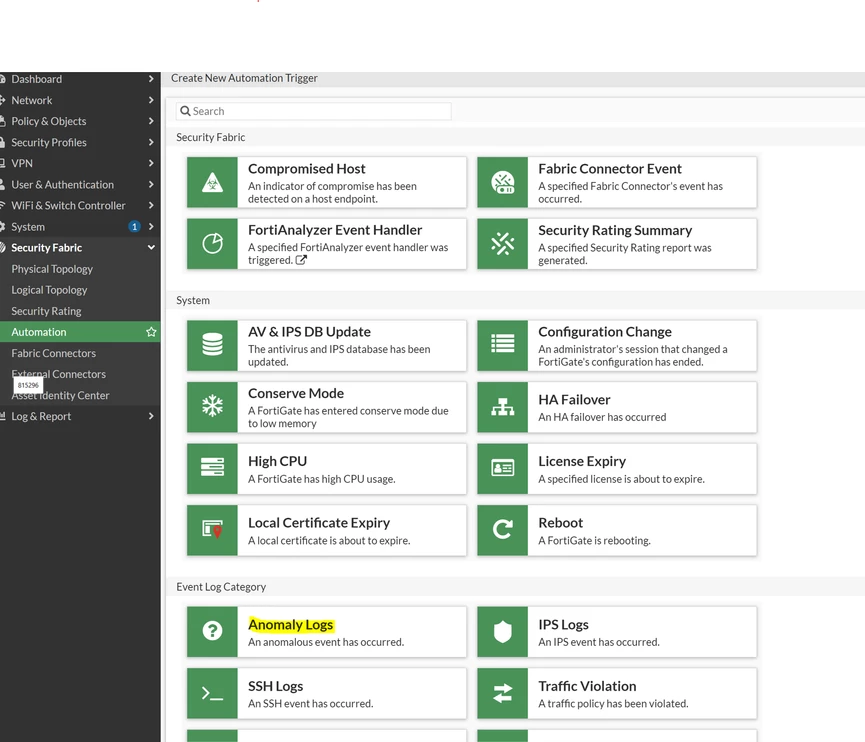

2. Go to Security Fabric -> Automation -> Trigger -> Select Create New -> Select Anomaly Logs.

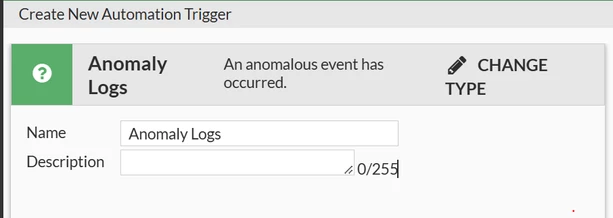

4. Set the name for the Anomaly Logs Automation Trigger, then select OK:

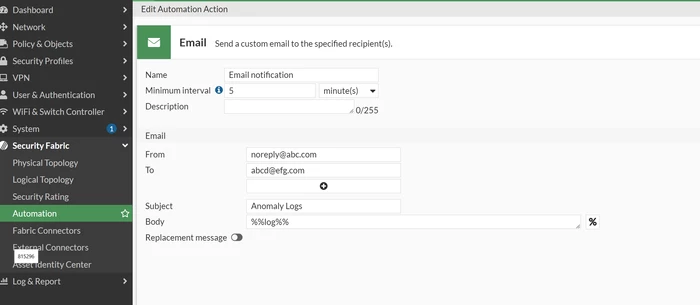

5. Go to Security Fabric -> Automation -> Action -> Select Create New:

   • Set the Name.
   • Interval time can be configured.
   • Set the Email from, Email recipient, and Email subject.
   • Leave the body "%%log%%" as default.

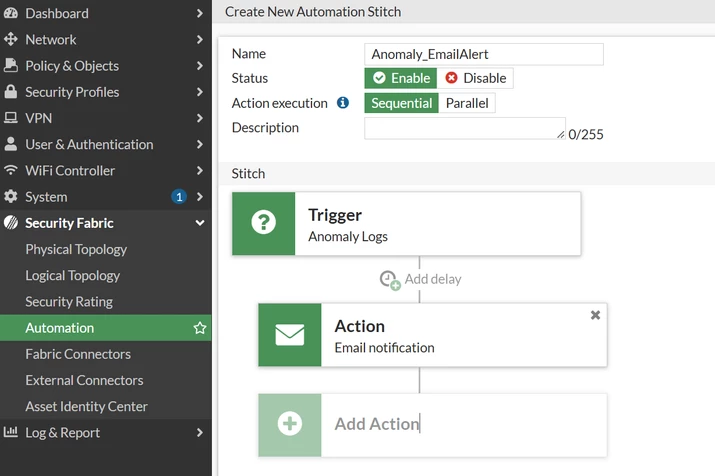

6. Go to Security Fabric -> Automation -> Stitch -> Select Create New.

   • Set the Name.
   • Set the Status to 'Enable'.
   • Set Action execution to 'Sequential'.
   • Under Stitch, select the newly created trigger for Anomaly Logs and action to Email Notification.
   • Select OK.



Result:

An email notification will be sent to the recipient's Email address when the FortiGate DOS policy threshold is triggered or an anomaly is detected.
