Technical Tip: Dynamic VLAN Not Displayed in GUI When FortiSwitch Ports Are Configured with 802.1X Security Policy

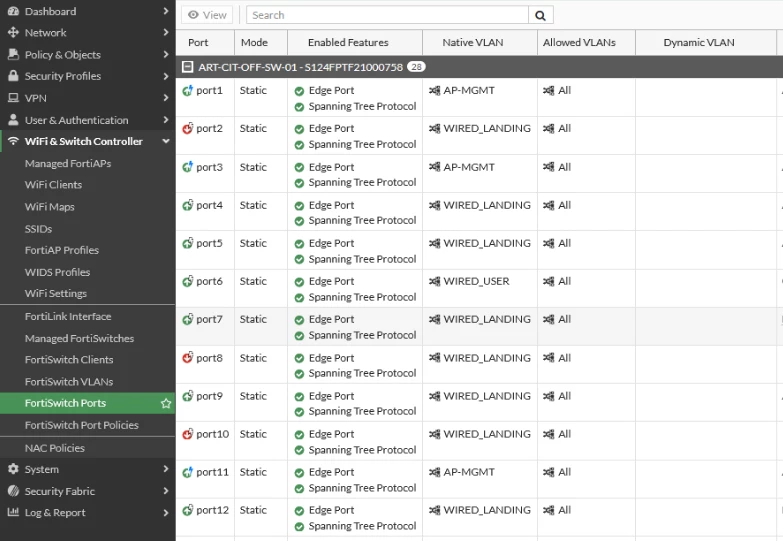

When a user connects to a switch port configured with an 802.1X security policy and successfully authenticates to gain network access, the Dynamic VLAN is not displayed under WiFi & Switch Controller -> FortiSwitch Ports.

However, running the following CLI command on the FortiSwitch displays the dynamic VLAN assigned to the interface.

diagnose switch 802-1x status port3

   port3 : Mode: port-based (mac-by-pass enable)

           Link: Link up

           Port State: authorized: ( )

           Dynamic Authorized Vlan : 16

           Dynamic Allowed Vlan list: 16

           Dynamic Untagged Vlan list: 16

           EAP pass-through : Enable

           Auth Order : MAB-dot1x

           Auth Priority : Legacy

           EAP egress-frame-tagged : Enable

           EAP auto-untagged-vlans : Enable

           Allow MAC Move From : Disable

           Dynamic Access Control List : Disable

           Quarantine VLAN (4093) detection : Enable

           Native Vlan : 16

           Allowed Vlan list: 1,16,20,51,225,233,4088-4093

           Untagged Vlan list: 4093

This issue has been fixed in v7.6.1 and v7.4.9 under bug ID 1092043

Workaround:

Use CLI commands to check the assigned dynamic VLAN for an interface.

FortiGate CLI:

diagnose switch-controller switch-info 802.1X <switch> <port>

FortiSwitch CLI:

diagnose switch 802-1x status <port>

General debug information required by FortiGate TAC for investigation:

1. Diagnostic commands:

diagnose switch-controller switch-info 802.1X <switch> <port>

2. TAC Report:

execute tac report

3. Configuration file of the FortiGate.
4. Fortinet Support Tool data: Troubleshooting Tip: Collect GUI slowness and errors debugs via Fortinet Support Tool
