Technical Tip: DSCP and TOS matching in FortiGate firewall policy. Examples

Description

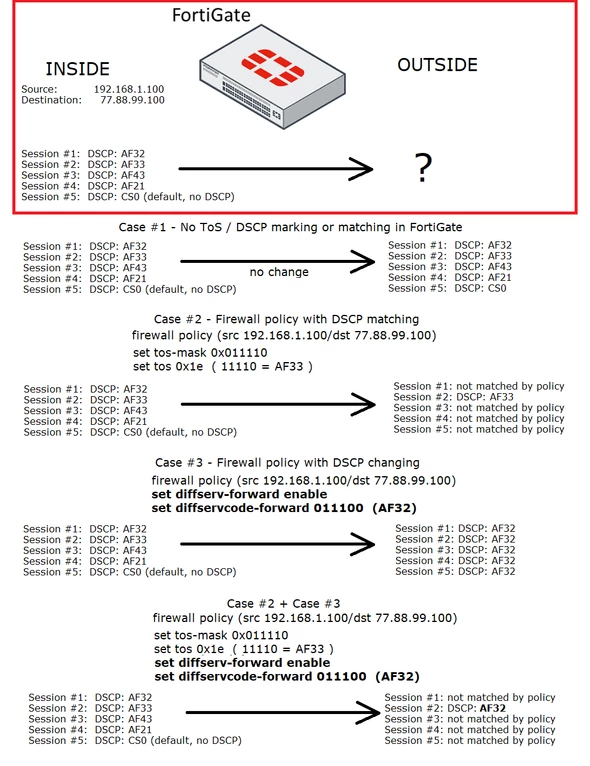

This article provides some examples regarding the use of TOS and DSCP code forwarding in a firewall policy.

It expands on the article available here.

Scope

Understanding basic scenarios regarding traffic prioritization in FortiGate.

Solution

ToS/DSCP:  8bit ToS field in IP header = 6bit DSCP + 2bit unused.

DSCP code is a 6bit identification code used to prioritize the traffic.

Additional data about the standard codes used is not vendor-specific. Here is another article that describes these codes in more detail.

FortiGate handles DSCP markings in a few places:

- Firewall policies (described in this article).

- Firewall traffic-shaper.

- Firewall shaping-policy.

It can happen that all 3 marking settings can be applied to the same traffic.

Priority is as follows:

- Firewall policy (least priority).

- Traffic shaping-policy overrides firewall policy.

- Traffic-shaper overrides both traffic shaping-policy and firewall policy.

Firewall policy handles the marking only (allow/deny/change it).
Traffic shaper / shaping policy is actually the one prioritizing the traffic (dropping if needed).
